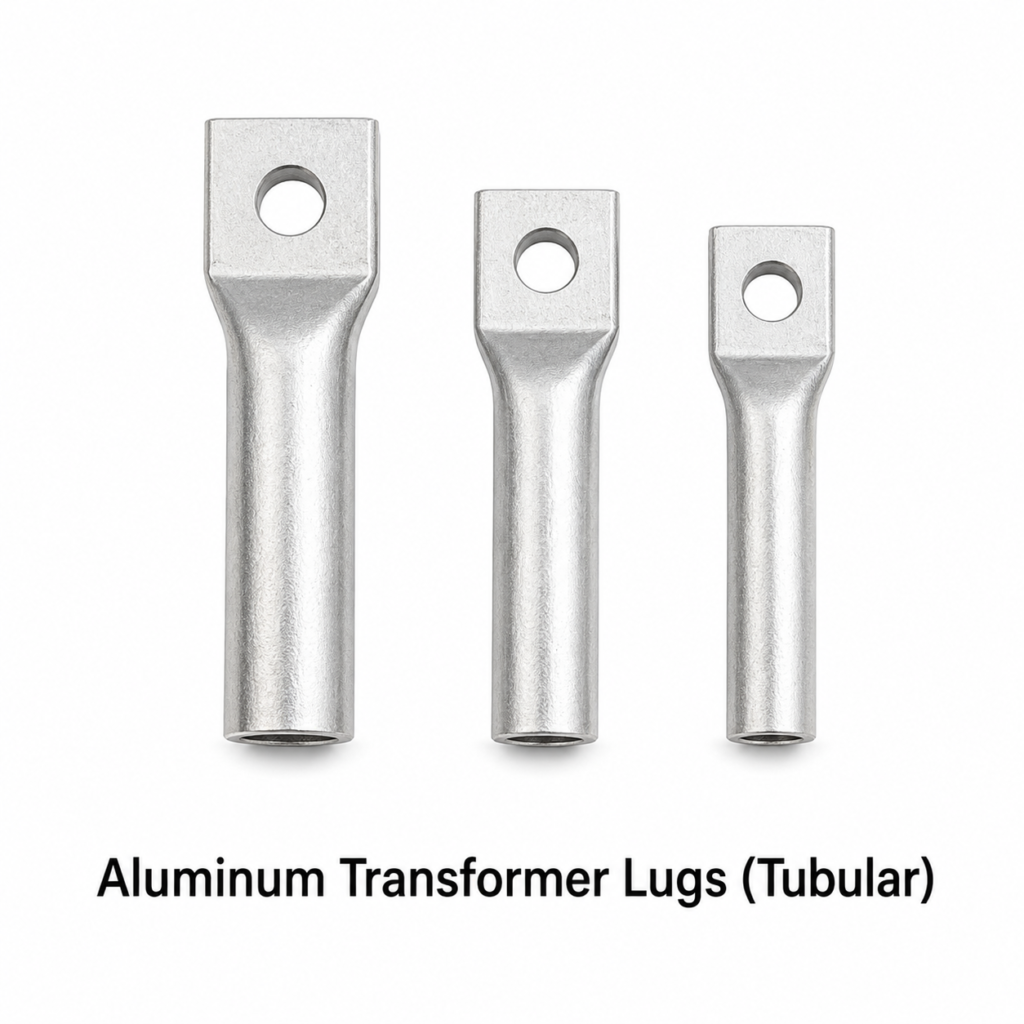

Aluminum Transformer Lugs (Tubular)
Aluminum Transformer Lugs (Tubular) — Cable Termination Lugs for Power Transformers
Aluminum Transformer Lugs (Tubular) are heavy-duty, compression-type cable lugs manufactured from EC-grade aluminum (AA 1350, ≥61% IACS) specifically for terminating power cables on distribution transformers, power transformers, cast resin transformers, and auto-transformers. Also known as transformer cable lugs, heavy-duty compression lugs, or tubular cable end terminals, these lugs are used at LV (low voltage) bushing connections, HV (high voltage) cable sealing ends, and neutral earthing connections on transformers from 25 kVA to 315 MVA capacity. Electrical Accessories India supplies these lugs to transformer manufacturers, utility power companies, and EPC contractors worldwide. Price: US$ 8.80/Kilogram
Product Overview
Design and Construction of Tubular Transformer Lugs
A tubular transformer lug consists of three structural elements: (1) the barrel (tubular section) — a cylindrical bore matched to the conductor cross-section (stranded or solid aluminum or copper cable) into which the stripped cable end is inserted for crimping; (2) the palm (tongue) — a flat, rectangular section with one or two bolt holes for connection to the transformer bushing stud, terminal block, or bus bar; and (3) the transition section — the body connecting barrel to palm, which must have adequate cross-sectional area to carry the full rated current without excessive temperature rise. Tubular transformer lugs differ from standard cable compression lugs primarily in their heavier tongue section, wider palm dimensions, and longer barrel length — all designed for the higher current ratings and the mechanical requirements of transformer terminal connections where the lug is expected to remain in service for the life of the transformer (20–40 years).
Conductor Range and Current Ratings
Aluminum tubular transformer lugs are manufactured for aluminum and copper conductor sizes from 16 mm² to 1,600 mm². For distribution transformers (100 kVA to 2,500 kVA, 11/0.433 kV), the LV cable cross-sections range from 150 mm² (100 kVA, 433V, ~133A) to 1,600 mm² (2,500 kVA, 433V, ~3,330A — requiring multiple parallel cables). For this full range, our manufacturing capability covers lugs with barrel inner diameters from 5.5 mm (16 mm²) to 54 mm (1,600 mm²) and palm bolt hole diameters from M8 to M24. Current ratings are calculated per IEC 60364 and IEC 61238-1 thermal criteria: maximum temperature rise of 5°C above adjacent conductor temperature under rated current, with contact resistance ≤1.2× equivalent conductor resistance.
Material: EC Grade Aluminum 1350 Alloy
The preferred material for transformer lugs is EC (Electrical Conductor) grade aluminum alloy AA 1350, also described as E-Al or 1350-H19 in wire/cable conductor form. AA 1350 contains minimum 99.5% aluminum, with trace additions of silicon and iron for enhanced drawing properties. Its electrical conductivity is ≥61% IACS (compared to 100% IACS for annealed copper and 40% IACS for 6061-T6 structural aluminum). For transformer applications, this high conductivity minimizes resistive losses at the bushing terminal joint, which directly affects the transformer’s no-load and load losses, efficiency, and heat generation. Using 6061-T6 in place of 1350 for transformer lugs on high-current LV connections would require a larger lug cross-section to meet the same temperature-rise criterion, increasing lug weight and material cost.
Surface Treatment: Tin Plating for Long-Term Contact Reliability
Aluminum forms a tenacious surface oxide (Al₂O₃, Mohs hardness ~9) that acts as an electrical insulator when present on contact surfaces. For transformer terminal connections intended to last 20–40 years of transformer service life, surface treatment is critical to long-term joint integrity. Tin plating (5–15 µm, electrodeposited per ASTM B545) is the standard surface treatment for transformer lugs because: (a) tin oxide is electrically conductive (unlike Al₂O₃), ensuring reliable contact resistance over time; (b) tin has a low Mohs hardness (~1.5) so it deforms under bolt clamping pressure, increasing true contact area; (c) tin has similar electrochemical potential to both aluminum and copper, reducing galvanic corrosion risk in Al-Al and Al-Cu joints. Silver plating (3–8 µm) is specified for HV transformer connections where ultra-low contact resistance and highest reliability are required by utility specification.
Crimping Process and Tool Requirements
Correct crimping is essential for aluminum transformer lugs to meet their rated current capacity and mechanical pull-out strength. The crimp must: fully compress the stranded conductor strands to eliminate air gaps (which would cause hot spots), achieve a gas-tight joint (eliminating oxygen access that would cause oxide film formation on conductor strands), and produce consistent hexagonal, oval, or quadragonal crimp profile as specified by the lug manufacturer for the die set. We supply transformer lugs with the crimp die reference code for the major hydraulic crimping tool manufacturers (Burndy, Cembre, Thomas and Betts, Hubbell/Burndy, Panduit, TE Connectivity/Amp). The die reference ensures the installer selects the correct die size, producing the designed crimp diameter and contact area. Crimp quality is verified by: dimensional check of crimped barrel, pull-out force test (minimum 2× rated mechanical load per IEC 61238-1), and electrical resistance check of crimped joint.
Heavy-Duty Variants for Power Transformer Applications
Power transformers (5 MVA to 315 MVA, 33/11 kV to 400/220 kV) require transformer lugs at the cable sealing end connection points where HV (6 mm² to 400 mm²) and LV (50 mm² to 1,600 mm²) cables connect to the transformer terminations. For MV (6.6 kV, 11 kV, 33 kV) HV connections, lugs must accommodate larger cable outer diameters (due to XLPE insulation thickness) while maintaining the correct crimp profile for the conductor size. We manufacture heavy-duty aluminum transformer lugs for 3.3 kV, 6.6 kV, 11 kV, 22 kV, and 33 kV cable sealing end applications, with barrel lengths extended to accommodate the cable stripping and insulation transition requirements of these medium-voltage cables. These specialized lugs are produced to utility and OEM specifications on request.
Bi-Metal Lugs for Mixed Al-Cu Transformer Connections
Where aluminum power cables terminate at copper transformer bushings or copper bus bar systems, bi-metal (bimetal) transformer lugs are specified to avoid the galvanic corrosion risk of direct aluminum-to-copper contact. Our bi-metal transformer lugs have an aluminum barrel (for crimping to the aluminum cable conductor) friction-welded or explosion-welded to a copper palm (for bolting to the copper bushing stud or bus bar), presenting the correct metal at each interface. Alternatively, copper-faced aluminum palm lugs are produced by electroplating a thick (≥50 µm) copper layer onto the aluminum palm after machining, providing a galvanically stable Cu-Cu contact at the bushing without full bi-metal construction. Both options are available for distribution transformer and power transformer applications.
Key Features
- Material: Al 1350 EC Grade (≥61% IACS); bi-metal Al/Cu available
- Conductor range: 16 mm² to 1,600 mm²
- Bolt hole diameter: M8 to M24
- Surface: Tin plated (standard), silver plated (HV applications)
- Contact resistance: <0.1 mΩ (per IEC 61238-1)
- Crimp die reference codes provided for major tool manufacturers
- Heavy-duty palm for 20–40 year transformer service life
- MV variants available for 3.3–33 kV HV cable connections
- IEC 61238-1 and IEEE 837 type-tested ranges available
- ISO 9001:2015 certified manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Al 1350 EC Grade (≥61% IACS) / Bi-metal Al-Cu |
| Conductor Range (aluminum) | 16 mm² to 1,600 mm² |
| Conductor Range (copper) | 16 mm² to 1,000 mm² |
| Barrel Inner Diameter | 5.5 mm (16 mm²) to 54 mm (1,600 mm²) |
| Palm Bolt Hole | M8 to M24 (single hole and double hole) |
| Conductivity (1350) | ≥61% IACS |
| Contact Resistance | <0.1 mΩ (per IEC 61238-1) |
| Surface Treatment | Tin Plated (5–15 µm) / Silver Plated (3–8 µm) |
| Temperature Rating | -40°C to +130°C (continuous); +150°C (1 sec fault) |
| Voltage Rating | LV (up to 1,000 V AC) and MV (3.3 kV to 33 kV) |
| Test Standard | IEC 61238-1, IEEE 837, IS 8309 |
| Price | US$ 8.80/Kilogram |
Conductor Range to Palm Hole Size Chart
| Conductor Cross-Section | Barrel OD (approx.) | Standard Bolt Hole | Typical Transformer Rating |
|---|---|---|---|
| 16 mm² | 8 mm | M8 | Instrument transformer secondary |
| 50 mm² | 12 mm | M10 | 25–100 kVA distribution transformer |
| 150 mm² | 20 mm | M12 | 100–250 kVA distribution transformer |
| 300 mm² | 28 mm | M16 | 250–630 kVA distribution transformer |
| 500 mm² | 36 mm | M20 | 630–1,600 kVA distribution transformer |
| 800 mm² | 44 mm | M20/M24 | 1,600–2,500 kVA distribution transformer |
| 1,200 mm² | 52 mm | M24 | Large transformer, parallel cables |
| 1,600 mm² | 57 mm | 2× M20 | Power transformer LV bus connection |
Applications in Industry
| Application | Transformer Type | Lug Type Used |
|---|---|---|
| LV Bushing Cable Termination | Distribution transformer (25–2,500 kVA) | Single or double-hole tin-plated |
| HV Cable Sealing End | Power transformer, 11 kV–33 kV | MV variant, silver plated |
| Neutral Earthing Connection | All distribution and power transformers | Single-hole, earth-rated |
| Auto-Transformer Winding Connections | Voltage regulators, traction transformers | Custom double-hole per OEM drawing |
| Cast Resin Transformer | Dry-type, 100–5,000 kVA | Aluminum lugs with IP23+ sealing |
| Substation Transformer Connections | 5–315 MVA grid transformers | Heavy-duty 2-hole, bi-metal |
| Transformer Service / Rewinding | All types during planned maintenance | Replacement lugs per OEM specs |
Manufacturing Process
Aluminum transformer lugs are manufactured from EC-grade 1350 aluminum tube (round, extruded) or billet stock with material traceability to mill test certificates. For standard sizes (16–400 mm²), the barrel is manufactured from drawn aluminum tube cut to length; the palm is punched from aluminum flat bar or plate; and the transition is die-forged or CNC-machined to join barrel and palm into a single-piece lug body. For large sizes (500–1,600 mm²), the lug body is cold-forged from 1350 aluminum billet in a two-step progressive forging process, producing the barrel, transition, and palm in one piece with optimal grain flow for mechanical strength. After forging or assembly, the barrel bore is precision-bored on CNC lathe to the specified conductor diameter and tolerance. Tin plating is applied by electrodeposition to ASTM B545. Final inspection includes dimensional check, plating thickness measurement, and pull-out force test on crimped samples.
Quality Standards
| Standard | Scope |
|---|---|
| IEC 61238-1 | Compression and mechanical connectors for power cables |
| IEEE 837 | Qualifying permanent connections used in substation grounding |
| IS 8309 | Indian Standard heavy-duty compression cable lugs |
| ASTM B545 | Electrodeposited tin coatings |
| IEC 60228 | Conductors of insulated cables (for compatibility verification) |
| ISO 9001:2015 | Quality Management System |
Why Choose Electrical Accessories India?
- Transformer Industry Specialist — lugs designed for 20–40 year transformer service life requirements
- EC Grade Aluminum Available — Al 1350 with conductivity certificate, meeting utility specifications
- Full Size Range — 16 mm² to 1,600 mm², LV and MV rated
- Bi-Metal Capability — Al/Cu friction-welded and explosion-welded lugs for mixed systems
- IEC Type Test Reports — available for standard product ranges
- Crimp Tool Compatibility Data — die codes for all major crimping tool brands
- Price: US$ 8.80/Kilogram — competitive for transformer OEM and utility procurement
Frequently Asked Questions
Q1. What is the difference between a standard cable lug and a transformer lug (tubular)?
Transformer lugs (tubular) have heavier palm sections, longer barrel lengths, wider bolt hole patterns, and are designed for the 20–40 year service life of transformer applications. Standard cable lugs are sized for normal power cable installations (5–10 year replacement cycle) with thinner palm sections. Transformer lugs also have more stringent testing requirements (IEC 61238-1, IEEE 837 type tests) vs. standard lugs (typically only dimensional standards).
Q2. Can aluminum lugs be used on copper transformer bushings?
Yes, with precautions. Tin plating on the aluminum palm reduces galvanic potential. Contact inhibitor grease must be applied at the joint. For the most reliable long-term connection, bi-metal (Al barrel, Cu palm) lugs are recommended for outdoor and high-humidity transformer installations where galvanic corrosion is a significant risk over the transformer’s service life.
Q3. What crimping tools are compatible with your transformer lugs?
We provide crimp die reference codes for: Burndy/Hubbell, Cembre, Thomas and Betts (T&B), Panduit, and TE Connectivity/Amp. These references ensure the correct die size is used to achieve the designed crimp geometry. Using incorrect dies results in under-crimping (high resistance, low pull-out strength) or over-crimping (barrel cracking, conductor damage). Our data sheets include the die reference table by conductor size.
Q4. What is the maximum conductor size available?
Standard range: up to 1,600 mm² for aluminum conductors and 1,000 mm² for copper conductors. For larger conductors (used in power station cable connections), custom lugs up to 2,000 mm² are manufactured on project basis with extended delivery time for special tooling and testing.
Q5. What is the minimum order quantity for transformer lugs?
For standard sizes (25–400 mm²): MOQ 50 pieces. For large sizes (500–1,600 mm²): MOQ 25 pieces (lower volume due to higher weight/unit). For custom or non-standard lugs: MOQ 100 pieces. Sample quantities (5–10 pieces) are available for type testing and qualification purposes.
Q6. Are IEC 61238-1 type test reports available?
Yes. Type test reports per IEC 61238-1 are available for our standard transformer lug ranges covering: temperature rise test at rated current, contact resistance measurement (initial and after thermal cycling), short-circuit current withstand, and mechanical pull-out strength. Reports are issued by NABL-accredited testing laboratories.
Q7. Can you match a competitor’s transformer lug for an existing transformer repair?
Yes. Send the existing lug physical sample or detailed dimensional drawing/photograph with all dimensions and conductor size. We will produce a matching replacement for type approval and production. This service supports transformer rewinding workshops and utility maintenance teams who need to source replacement hardware for aging transformer fleets.
Q8. Are your transformer lugs suitable for cast resin (dry-type) transformers?
Yes. Aluminum transformer lugs for dry-type cast resin transformers are identical in design to oil-filled transformer lugs but may require IP23 or IP31 ingress protection compliance for the lug installation area. Insulating boots, heat-shrink sleeves, and terminal cover caps are available as accessories to achieve the required IP rating in the exposed terminal compartment of cast resin transformers.
Equivalent Terms in Other Languages
| Language | Term 1 | Term 2 | Term 3 |
|---|---|---|---|
| Spanish | Terminales tubulares de aluminio para transformador | Zapatas de cable aluminio transformador | Terminales de compresión aluminio transformador |
| Russian | Алюминиевые трубчатые наконечники для трансформатора | Кабельные наконечники алюминий трансформатор | Трубчатые кабельные клеммы алюминий |
| French | Cosses tubulaires aluminium pour transformateur | Embouts de câble aluminium transformateur | Cosses à compression aluminium transformateur |
| Portuguese | Terminais tubulares de alumínio para transformador | Sapatas de cabo alumínio transformador | Terminais de compressão alumínio transformador |
| Italian | Capicorda tubolari in alluminio per trasformatore | Terminali cavo alluminio trasformatore | Occhielli di compressione alluminio trasformatore |
Related Aluminum Products
- Aluminum Transformer Spade Terminals
- Aluminum Stud Mount Connectors
- Aluminum Terminal Bars
- Aluminum Screw Machine Parts
- Aluminum CNC Machined Components
- Aluminum Pipe Brackets (Pressed)
- Aluminum Sheet Metal Parts
- Aluminum Lay-In Lugs and Connectors
Get a Quote — Aluminum Transformer Lugs (Tubular)
Specify conductor cross-section and material (Al or Cu), transformer voltage rating, current rating, bolt hole size, surface treatment, and quantity. For large transformer projects, provide transformer OEM drawing or bushing hardware specification.
