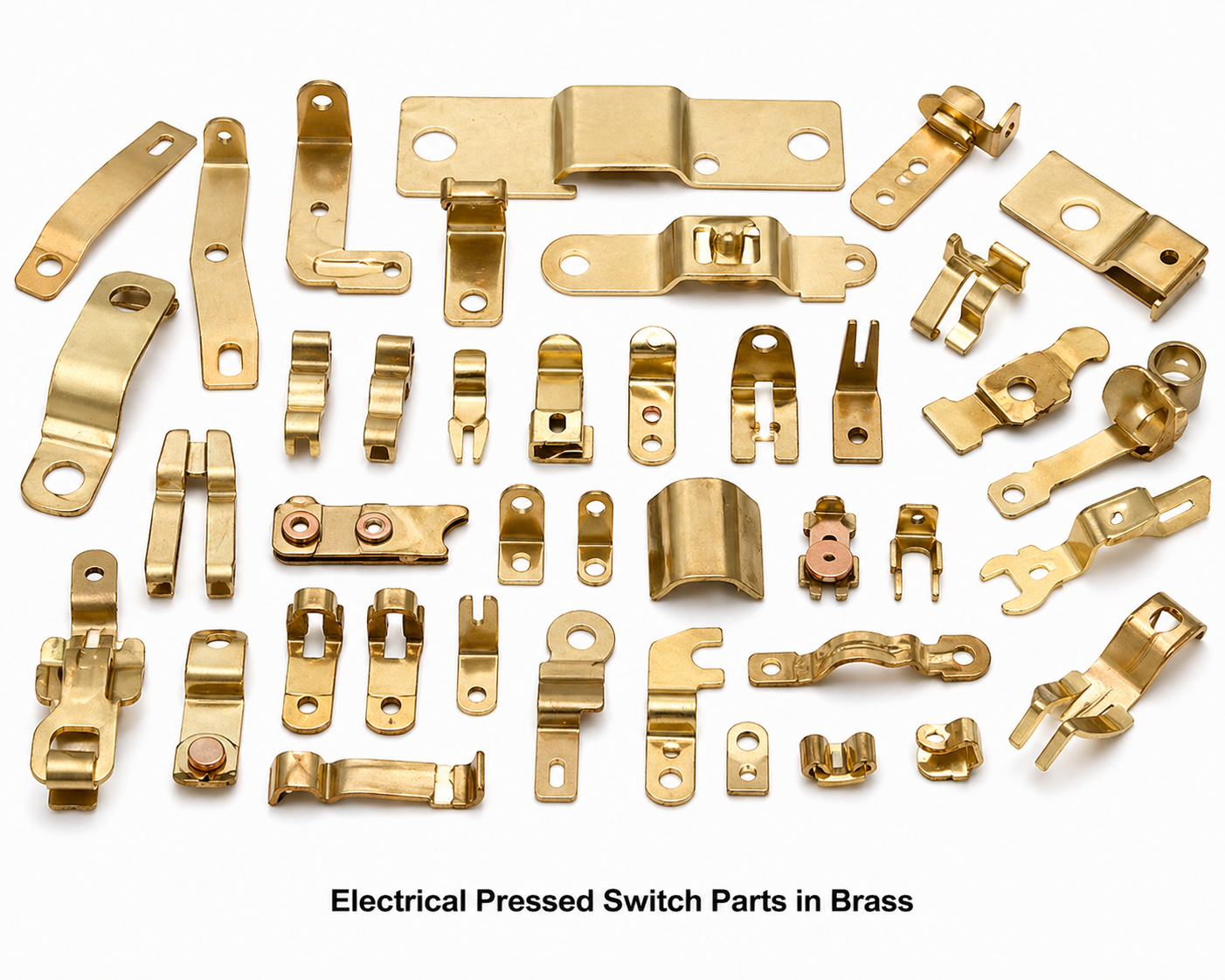

Electrical Pressed Switch Parts in Brass

Electrical Pressed Switch Parts in Brass

Electrical pressed switch parts in brass — also known as brass switch stampings, brass contact blades for switches, brass switch mechanism parts, brass wiring accessory components, or brass socket and switch contacts — are precision cold-pressed and formed brass components that form the current-carrying and mechanical actuation elements of electrical switches, sockets, wiring accessories, rocker switches, toggle switches, rotary switches, and industrial push-button switches. Electrical Accessories India manufactures brass pressed switch parts from CW508L (CuZn30, 70/30 brass), CW614N (CuZn39Pb3), and IS 407 brass strip in half-hard and spring tempers using progressive dies, compound dies, and forming tools for domestic wiring accessory OEMs, industrial switch manufacturers, motor control equipment builders, and switchgear component distributors in India and export markets.

Product Overview

Brass in Electrical Switch Mechanisms

Brass is the dominant material for the internal current-carrying and spring components of electrical switches because it combines the necessary properties in a single alloy: electrical conductivity adequate for rated currents (26–28% IACS for CW508L), mechanical spring properties for self-returning contact action, good cold-formability for complex pressing sequences, solder-ability for terminal wire connections, and corrosion resistance for long indoor service life. Silver or gold contact tips are often resistance-welded or riveted to the brass contact blade to provide the actual switching surface — the brass provides the mechanical spring arm and current path while the precious metal provides the low-resistance, arc-resistant contact surface that performs the electrical switching function over millions of operations.

Brass Switch Contact Blades

Brass contact blades — the movable current-carrying elements of toggle, rocker, and push-button switches — are spring-formed from half-hard CW508L (70/30 brass) or CW614N strip in thicknesses of 0.3–1.5 mm. The contact blade must satisfy simultaneous requirements: spring force sufficient to ensure positive contact closure and snap-action switching; formability to achieve the required curved or angled geometry; surface finish suitable for silver contact tip attachment; and dimensional consistency to ensure mating with fixed contacts and housing guideways. Electrical Accessories India produces contact blades for 6A, 10A, 13A, 16A, and 20A switches for domestic, commercial, and light industrial applications, in profiles matching BS 1363, BS 5733, IS 1293 wiring accessories standards and OEM proprietary designs.

Fixed Contact Stampings for Switches

Fixed contacts — the stationary current-carrying elements of switch mechanisms — are blanked and formed from brass strip, with silver or fine-silver contact pads resistance-welded or rivet-attached at the switching contact face. Fixed switch contacts for domestic wiring accessories are typically 0.5–1.0 mm thick blanked brass with a mounting lug or crimping tab for assembly into the switch housing. For industrial push-button and selector switches, fixed contacts are more robust — 1.5–3 mm thick brass stampings with screw-terminal connections and multiple contact bridge positions. Electrical Accessories India supplies both domestic and industrial fixed switch contact stampings to OEM drawing or established standard profiles.

Brass Plug Pin Stampings

Plug pins — the current-carrying prongs of electrical plugs inserted into socket outlets — are pressed from thick brass strip (1.5–3 mm) to the precise dimensions specified by BS 1363 (UK 3-pin plug), IS 1293 (Indian 6A/16A plug), CEE 7 (European Schuko), and other national socket standards. Plug pin pressing requires tight dimensional tolerances (pin width ±0.05 mm, pin thickness ±0.02 mm) to ensure correct fit and low contact resistance in the socket. Earth (PE) pins are dimensioned larger and longer than live/neutral pins per safety standards. Electrical Accessories India produces plug pins for all major plug standards to supply wiring accessories manufacturers in India, UK, Europe, Middle East, and Africa.

Spring Terminals and Cage Clamp Pressings

Spring-cage terminals and cage clamp contacts — used in screw-less push-in wiring terminal blocks, connector strips, and WAGO-style connections — are formed from spring-temper brass strip using precision progressive dies. These components require accurate spring geometry to provide defined clamping force (0.5–5 N for wire sizes 0.5–6 mm²) and maintain conductor grip over thousands of insertion/removal cycles and years of service at elevated temperatures. CW508L in spring-hard temper is the standard alloy. Silver plating (2–5 µm) is applied to contact surfaces for low contact resistance even after tarnishing.

Earth and Neutral Link Stampings

Earth link plates, neutral link bridges, and busbar link stampings are flat-blanked and punched brass components used in consumer units, distribution boards, and terminal block systems to connect multiple earth or neutral conductors to a common busbar. Produced from 1–3 mm thick IS 407 brass strip with precision hole patterns matching standard busbar bolt spacing, these components are tin-plated for good electrical contact at bolted joints. Custom profiles with non-standard hole patterns are produced to OEM drawing. Electrical Accessories India supplies earth and neutral link stampings to consumer unit and distribution board manufacturers as OEM-supplied components.

Key Features

• Alloys: CW508L (70/30 brass), CW614N, IS 407 strip — spring-temper and half-hard temper options
• Strip thickness: 0.3–3.0 mm; components from sub-1g contact blades to 100g bus link plates
• Contact blade standards: BS 1363, IS 1293, CEE 7, BS 5733 and OEM proprietary profiles
• Silver or fine-silver contact tips: resistance-welded or riveted (3–8 µm Ag or solid AgNi)
• Spring force conformance: ±10% of design value, 100% measured before dispatch
• Plating: tin (5–12 µm), silver (3–8 µm), nickel, or gold flash per specification
• ISO 9001:2015 certified; dimensional compliance to BS 1363 / IS 1293 / CEE 7
• High-volume production: up to 2 million parts/month on multi-station progressive dies
• DFM review and tooling design for new switch parts development
• Complete wiring accessory component sets: contacts, blades, pins, and links from one supplier

Rocker Switch Contact Sets

Rocker switch contact sets — comprising a movable bridge contact, two fixed contact pads, and return spring element, all in brass — are produced as matched component sets for domestic rocker switches. The movable bridge (typically 0.5–0.8 mm half-hard CW508L strip, silver-tipped at both ends) rocks between two fixed contacts to make or break the circuit. Contact profile dimensions must be tightly controlled to ensure positive snap action at the correct operating force (typically 3–8 N lever force) and reliable contact pressure (minimum 0.2 N contact force). Electrical Accessories India supplies rocker switch contact sets as matched assemblies tested for make/break operation at 6A, 10A, and 16A ratings.

Brass Socket Outlet Contact Stampings

Socket outlet contacts — the spring-formed slotted contacts inside socket outlets that grip plug pins — must provide reliable low-resistance contact at rated current while withstanding tens of thousands of plug insertion and withdrawal cycles. These contacts are formed from CW508L or phosphor bronze strip in spring temper with precise slot geometry machined or formed to accept the pin dimensions of BS 1363 or IS 1293 pins. The contact slot width is critical: too wide gives poor contact pressure and high resistance; too narrow causes pin insertion difficulty and excessive wear. Electrical Accessories India produces socket outlet contacts for all major plug standards in both domestic and industrial IP rating variants.

Push-Button Switch Contact Assemblies

Industrial push-button switch contacts — used in motor control station start/stop buttons, emergency stop (E-stop) mushroom head switches, and selector switches — are heavier-duty brass stampings with silver-alloy contact tips and multiple contact positions (NO, NC, CO). These contacts must comply with IEC 60947-5-1 (low-voltage control circuit devices and switching elements) for rated impulse withstand voltage, rated operational current, and mechanical endurance (up to 10 million operations for standard duty). Electrical Accessories India produces push-button contact elements for industrial control equipment OEMs in standard and OEM-specific profiles.

Technical Specifications

Material Grades and International Equivalents

Product Types and Variants

Electrical pressed switch parts in brass from Electrical Accessories India include: Brass contact blades for toggle and rocker switches (6A–20A); Fixed and movable contact assemblies with silver tips; Brass plug pins for BS 1363, IS 1293, CEE 7 plugs; Socket outlet spring contacts; Spring cage clamp contacts for push-in terminals; Earth and neutral link stampings for consumer units; Industrial push-button contact sets (NO/NC/CO); Selector switch contact discs and cam-follower contacts; and custom brass switch stampings to OEM drawing for proprietary switch mechanisms.

Applications in Industry

Brass pressed switch parts are used throughout: Domestic wiring accessories — BS 1363 and IS 1293 switches and sockets for residential and commercial installations; Industrial control equipment — push-button stations, selector switches, and limit switch contacts in motor control and automation; Consumer appliances — rocker switches, toggle switches, and push-button controls in white goods and brown goods; Building automation — smart switch contacts and relay switching elements; Distribution boards — earth and neutral link plates, bus link stampings; Lighting control — dimmer switch contacts and intermediate switch mechanisms; Automotive and marine — waterproof switch contacts and marine-grade switching components.

Manufacturing Process

1. Strip Inspection: IS 407 or CW508L strip coil received; thickness, temper (hardness), and surface quality verified against MTR.
2. Progressive Die Production: Strip fed through progressive die; blanking, piercing, forming, and bending stations complete the contact geometry.
3. Spring-Back Calibration: Forming station geometry adjusted until spring force is within ±10% of design specification.
4. First-Article Inspection: Complete dimensional check and spring force test on first 20 parts; FAI report issued.
5. Contact Tip Attachment: Silver or AgNi contact tips resistance-welded or rivet-attached to contact face per drawing specification.
6. Deburring and Polishing: Vibratory deburring; contact face polished to Ra 0.4–0.8 µm.
7. Plating (if applicable): Tin, silver, or nickel per specification; thickness verified by XRF.
8. 100% Spring Force Test: Every contact blade measured for spring force compliance.
9. Final Inspection and Packing: Dimensional AQL; visual inspection; anti-tarnish packaging for export.

Quality Standards and Certifications

Brass pressed switch parts manufactured per: ISO 9001:2015 QMS; BS 1363 (UK 13A fused plug and socket outlet dimensions); IS 1293 (Indian plugs and socket outlets); IEC 60947-5-1 (low-voltage switching elements); IEC 60669-1 (switches for household and similar fixed electrical installations); EN 1652 (copper alloy strip); IS 407 (brass strip); ASTM B545 (tin plating); ASTM B700 (silver plating). RoHS Annex II 6(c) for brass grades; REACH SVHC declarations.

Why Choose Electrical Accessories India

Electrical Accessories India is a complete brass switch component supplier — producing contact blades, fixed contacts, plug pins, spring terminals, and earth links as matched component families from a single facility. This simplifies OEM procurement by eliminating multiple component suppliers for the same switch mechanism. Our progressive die capability handles the full complexity range from simple earth tag blanks to multi-bend spring contacts with silver tip attachment. 30+ years of wiring accessory component supply experience means we understand the specific dimensional, plating, and testing requirements of BS, IS, IEC, and proprietary switch standards.

Frequently Asked Questions (FAQ)

What alloy is best for domestic switch contact blades?

CW505L or CW508L (70/30 brass) in half-hard temper H02 is standard for domestic switch contact blades. The 70% copper content gives adequate conductivity (~26% IACS) for 6–16A ratings, and the H02 temper provides controlled spring-back for reliable contact closure. For higher-cycle-count applications, phosphor bronze (CW451K, CuSn6) in spring temper offers higher fatigue life.

Do you supply silver-tipped brass contacts?

Yes. Silver contact tips (AgNi 88/12, AgCdO, or pure Ag) are resistance-welded or rivet-attached to brass contact blades and fixed contacts by Electrical Accessories India or by certified sub-contractors. We supply fully assembled silver-tipped contact sets ready for switch mechanism assembly.

Can you produce BS 1363 plug pin stampings?

Yes. BS 1363 live, neutral, and earth plug pins are produced to the dimensional requirements of BS 1363 Amendment 1 and BS EN 60884-1 from 1.5–2.0 mm thick CW614N or IS 407 brass strip. Pin dimensions (width 4.0 mm, thickness 1.27 mm, length 18–19 mm for live/neutral; 20 mm for earth) are held to ±0.05 mm for correct socket entry force compliance.

What is the typical life expectancy of brass switch contacts?

Standard domestic brass switch contacts with silver tips: 10,000–30,000 switching cycles at rated load (mechanical endurance) per IEC 60669-1. Industrial contacts per IEC 60947-5-1: 1–10 million mechanical operations. Life is governed by silver tip wear and contact spring fatigue — correct alloy and temper selection is critical for achieving specified endurance.

Do you supply complete switch contact sets as assembled components?

Yes. Electrical Accessories India supplies matched contact sets — movable blade, fixed contacts, and return spring — assembled and tested as functional units for integration into switch housings. This reduces OEM assembly operations and ensures correct contact force matching between components.

What is your lead time for new brass switch part tooling?

Progressive die tooling for new switch contact profiles: 4–8 weeks. Compound die tooling for flat blanked parts (earth links, bus links): 2–4 weeks. First-article samples: 1–2 weeks after die completion. Production after first-article approval: 3–5 weeks.

Can you match existing competitor part dimensions?

Yes. Electrical Accessories India can reverse-engineer existing switch contact parts from samples or dimensional drawings. We provide DFM review and recommend any changes to improve stampability or reduce tooling cost before production commences.

Equivalent Terms – Multilingual Reference

Related Products and Linked Terms

• Brass Stamping – Brass Stamped Parts
• Copper Pressing and Copper Pressed Parts
• Copper Fuse Clips (Pressed)
• Brass Parts – Brass CNC Machined Parts
• Brass Terminals

Request a Quote

Supply your switch contact drawing, sample, or specification and receive a detailed technical and commercial proposal within 24 hours. Electrical Accessories India engineers are available to advise on alloy and temper selection, silver tip specification, spring force requirements, and plating for your switch mechanism application. We export to 30+ countries with full shipping documentation.

Contact us: Send your RFQ with quantity, drawing (PDF/DXF/STEP), current rating, plating specification, and delivery requirement. We respond within 24 business hours.

Indicative Pricing

Brass Items: US$ 11.50 per kilogram, CIF US Port

Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.
