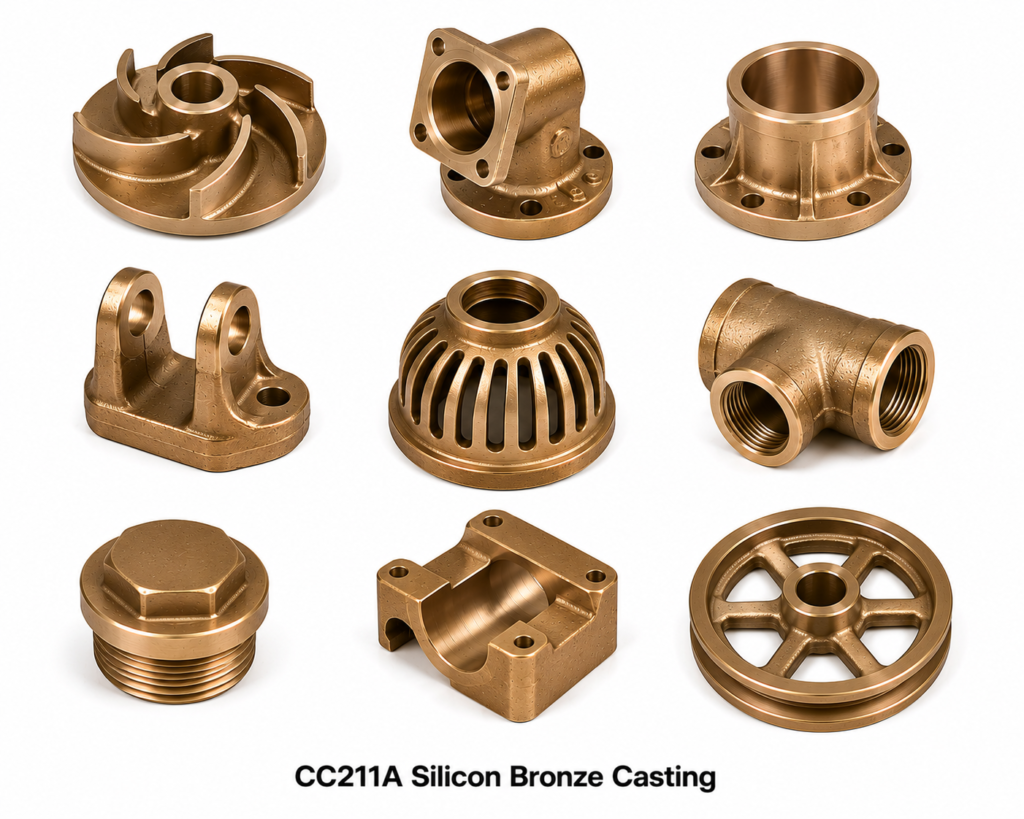

CC211A Silicon Bronze Casting
CC211A Silicon Bronze Casting | BS EN 1982 Silicon Bronze | C87600 Equivalent
CC211A Silicon Bronze casting, designated under BS EN 1982 as the standard European silicon bronze casting alloy, is equivalent to UNS C87600 (USA), DIN CuSi3 (Germany), IS 318 Gr.SiB2 (India), and ISO CuSi3. Electrical Accessories India manufactures CC211A silicon bronze castings using sand casting, investment casting, centrifugal casting, green sand casting, and permanent mold casting for European, UK, Australian, and international customers requiring BS EN 1982 certification.
CC211A contains 3.0-5.0% silicon and 0.8-1.5% manganese in a copper matrix, delivering 430 MPa minimum tensile strength, 18% elongation, and excellent weldability with ERCuSi-A filler wire. The BS EN 1982 standard covers ingots and castings for CC211A silicon bronze, making it the preferred designation for UK and European purchasers specifying silicon bronze castings to EN standards.
CC211A Chemical Composition and Mechanical Properties (BS EN 1982)
| Property | CC211A (BS EN 1982) Value | Standard |
|---|---|---|
| EN Designation | CC211A | BS EN 1982 |
| US Equivalent | C87600 (UNS C87600) | ASTM/CDA |
| DIN Equivalent | CuSi3 | DIN 1705 |
| Indian Equivalent | IS 318 Gr.SiB2 | BIS |
| ISO Designation | CuSi3 | ISO |
| Silicon (Si) | 3.0-5.0% | BS EN 1982 |
| Manganese (Mn) | 0.8-1.5% | BS EN 1982 |
| Copper (Cu) | Remainder (min 94%) | BS EN 1982 |
| Tensile Strength | 430 MPa min | BS EN 1982 |
| 0.2% Yield Strength | 170 MPa min | BS EN 1982 |
| Elongation | 18% min | BS EN 1982 |
| Hardness | 90-130 HB | – |
| Density | 8.3 g/cm3 | – |
| Electrical Conductivity | 7-10% IACS | – |
| Max Service Temperature | 200 deg C | – |
| Weldability | Excellent (TIG/MIG ERCuSi-A) | AWS A5.7 |
CC211A Silicon Bronze Casting Processes
CC211A Silicon Bronze Sand Casting
CC211A Silicon Bronze Sand Casting (BS EN 1982) produces large and complex components using furan resin-bonded sand moulds. Component weights from 0.05 to 200+ kg. Tolerances CT7-CT9. Surface finish Ra 6.3-12.5 um. Lead times 1-2 weeks. All CC211A sand castings supplied with EN 10204 3.1 mill certificates confirming chemical analysis to BS EN 1982 limits. Ideal for European and UK purchasers requiring BS EN certified silicon bronze sand castings for marine, chemical plant, and architectural applications.
CC211A Silicon Bronze Centrifugal Casting
CC211A Silicon Bronze Centrifugal Casting produces dense hollow cylindrical components to BS EN 1982 CC211A specification. Tolerances CT5-CT6. Particularly suitable for bearing bushings, pipe flanges, valve seat rings, and cylindrical fittings for European marine and chemical plant applications specified to BS EN 1982.
CC211A Silicon Bronze Investment Casting
CC211A Silicon Bronze Investment Casting (lost-wax process) achieves CT4-CT5 tolerances and Ra 1.6-3.2 um surface finish to BS EN 1982. Used for precision marine hardware, architectural hardware, and precision electrical components required to BS EN 1982 CC211A specification. Supplied with EN 10204 3.1 certificates.
CC211A Silicon Bronze Green Sand Casting
CC211A Silicon Bronze Green Sand Casting uses clay-bonded green sand for rapid, economical production of standard hardware shapes. Tolerances CT8-CT10. Most economical for large-volume standard CC211A hardware. Chemical analysis certified to BS EN 1982 with EN 10204 2.2 test reports as standard, 3.1 on request.
CC211A Silicon Bronze Permanent Mold Casting
CC211A Silicon Bronze Permanent Mold Casting uses reusable dies for high-volume, dimensionally consistent production. Tolerances CT5-CT7. Ideal for standard marine, architectural, and electrical hardware in CC211A (BS EN 1982) for quantities of 500-50,000 pieces. Full EN 10204 3.1 mill certificates supplied.
Cross-Reference: CC211A to Other Standards
| Standard | Designation | Country/Region |
|---|---|---|
| BS EN 1982 | CC211A | UK / Europe |
| UNS (ASTM/CDA) | C87600 | USA |
| DIN 1705 | CuSi3 | Germany |
| IS 318 | Gr.SiB2 | India |
| ISO | CuSi3 | International |
Applications of CC211A (BS EN 1982) Silicon Bronze Castings
- Marine Hardware: Deck hardware, cleats, fairleads, through-hull fittings, seacock bodies to BS EN standards
- Chemical Plant: Earthing hardware, cable gland bodies, conduit fittings to EN standards for EU/UK plants
- Architectural Hardware: Door hardware, window fittings, architectural ornaments specified to BS EN 1982
- UK and European Market Supply: Components specified to BS EN 1982 CC211A for direct UK and European use without alloy conversion
Quality Standards and Certifications
- BS EN 1982 – Copper and Copper Alloys Ingots and Castings (CC211A)
- ASTM B198 – Copper-Silicon Alloy Sand Castings (C87600 equivalent)
- IS 318 – Indian Standard for Copper Alloy Ingots and Castings
- AWS A5.7 ERCuSi-A – Silicon Bronze Welding Wire
- ISO 9001:2015 Quality Management System
- EN 10204 3.1 Mill Certificates
- RoHS 3 and REACH compliant
Request a Quote for CC211A Silicon Bronze Castings
Electrical Accessories India supplies CC211A silicon bronze castings certified to BS EN 1982 to customers in the UK, Europe, Australia, and internationally. Quotations within 24 hours. Provide your drawing (PDF/DXF/STEP), quantity, casting process, and delivery destination. EN 10204 3.1 mill certificates and full commercial documentation for European import supplied as standard. Indicative pricing: USD 13.90 per kg CIF destination port.
