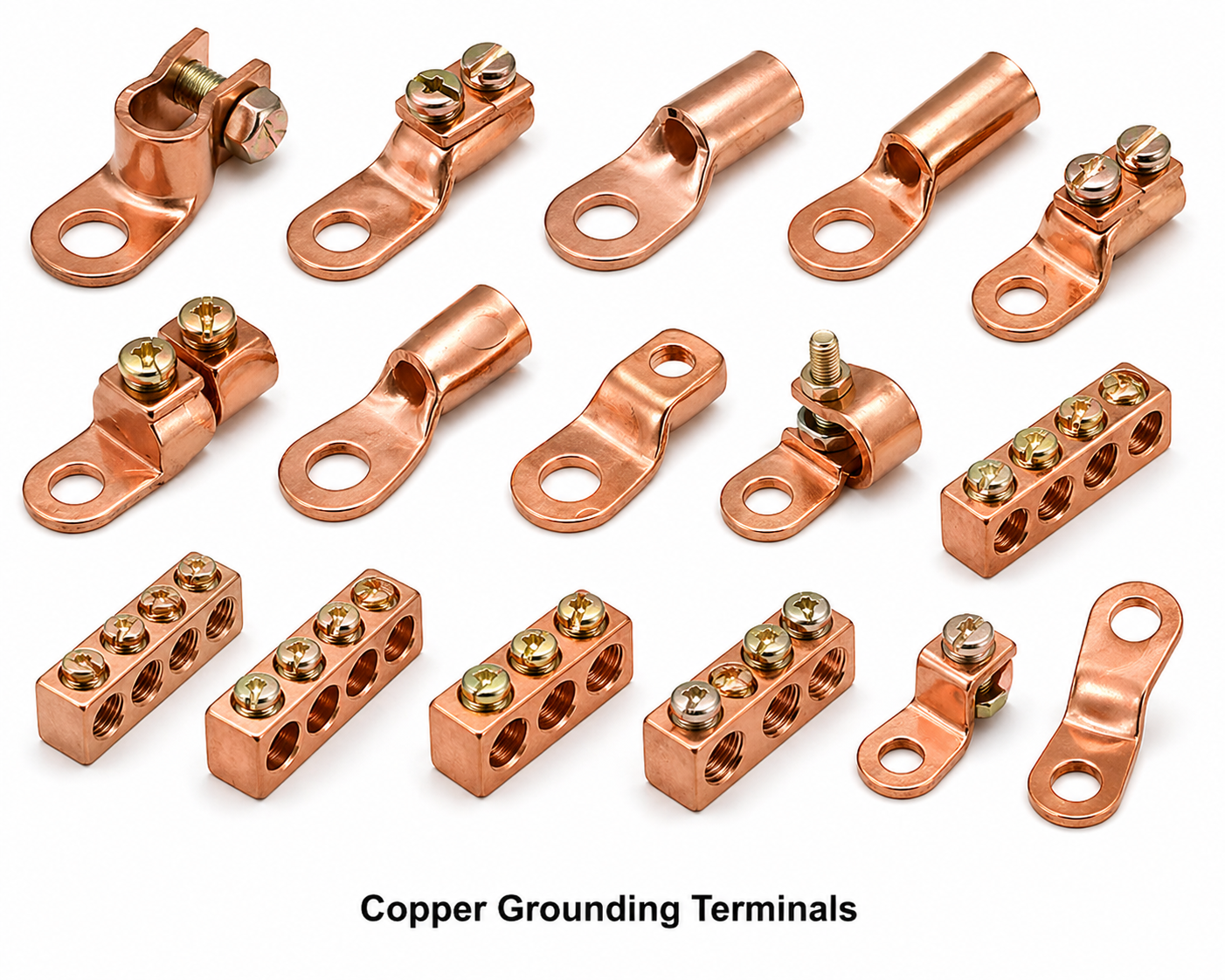

Copper grounding terminals are pressed and stamped copper components used to connect protective earth conductors, equipment chassis, cable screens, and structural steelwork to the equipotential bonding network. Manufactured from high-conductivity Cu-ETP (C11000) copper by Electrical Accessories India, these components include copper earth terminals, copper ground lugs, copper equipotential bonding terminals, copper earth straps, copper protective earth (PE) connectors, copper bonding clamps, copper grounding bars, and copper earth screws. Supplied to electrical OEMs, panel builders, EPC contractors, power utilities, and industrial installers across 30+ countries.

Product Overview

Copper Earth Terminals and Grounding Lugs

Copper earth terminals, also referred to as copper grounding lugs, copper PE terminals, copper bonding connectors, copper protective earth connectors, or copper safety earth terminals, are flat-pressed copper pieces drilled for cable conductor connection and chassis mounting. They are manufactured by blanking, punching, and forming from copper strip. Applications include panel board earth busbars, enclosure grounding, cable tray earthing, transformer neutral earthing, and motor frame earthing. Standard configurations include flat tongue with one or two cable holes, right-angle lugs, and Z-form brackets. Conductor sizes from 1.5 mm² to 240 mm² are accommodated depending on lug bore and cable clamping method.

Copper Equipotential Bonding Terminals

Copper equipotential bonding terminals, copper bonding bars, copper bonding lugs, and copper main equipotential bonding (MEB) terminals are used to connect all metallic services entering a building to the main earthing terminal. Manufactured from heavy-gauge copper sheet (3–6 mm), these terminals accept multiple conductors via bolted connections. They comply with IEC 60364-5-54, BS 7671 (18th Edition), and NEC Article 250 requirements for equipotential bonding. Available in bar form with multiple M6–M10 bolt holes for parallel connection of water pipes, gas pipes, structural steel, lightning protection conductors, and telecom earth conductors.

Copper Grounding Bars and Earth Busbars

Copper grounding bars, also called copper earth bars, copper PE bars, copper ground busbars, copper common bonding networks (CBN), or copper equipotential bonding bars, are longitudinal copper strips mounted in switchgear and distribution panels to serve as the common point for all protective earth connections. They are drilled with regularly spaced M6 or M8 holes along their length and mounted on insulated or direct-fix brackets. Standard lengths from 100 mm to 1000 mm; widths 10–40 mm; thickness 3–6 mm. Tin-plated surface is standard for long-term oxidation resistance.

Copper Cable Screen Grounding Terminals

Copper cable screen grounding terminals, copper drain wire terminals, copper shield bonding lugs, copper screen clamps, and copper armour earth terminals are used to connect the metallic screen, armour, or shield of power and instrumentation cables to the earth system. Types include saddle clamps, split clamps, ring terminals, and strap terminals. Manufactured from Cu-ETP copper for compatibility with copper cable screens. Used in control panels, motor drives, VFD installations, data centres, and offshore electrical systems where screen integrity is critical to EMC performance.

Copper Lightning Protection and Down Conductor Terminals

Copper terminals for lightning protection systems include copper air termination connectors, copper down conductor clamps, copper test links, copper bond connectors, and copper earth electrode terminations. These comply with IEC 62305-3, BS EN 62561, and IS 2309 for lightning protection conductor connections. Manufactured from heavy copper bar and sheet, these terminals must withstand the high impulse current of a direct lightning strike without melting or disconnecting. Available in tape-to-tape, tape-to-round, and round-to-round conductor configurations.

Key Features

• High-conductivity Cu-ETP and Cu-OF copper — ≥99.9% purity, ≥100% IACS
• Precision blanked and punched — ±0.1 mm hole tolerance
• Tin plating (5–15 μm) standard; bare and silver-plated options
• Compliant with IEC 60364-5-54, BS 7671, IEC 62305, NEC Article 250
• M4 to M12 bolt hole configurations; slotted holes available
• Custom profiles, sizes, and conductor accommodation ranges to drawing
• Full documentation: MTR, dimensional report, REACH/RoHS compliance
• Export quality — CE marking, ISO 9001:2015 QMS

Electrical Conductivity and Grounding Performance

Copper grounding terminals made from Cu-ETP achieve ≥100% IACS conductivity, ensuring that fault currents and lightning impulse currents are conducted without resistive heating or voltage rise at the terminal. Low contact resistance at the bolted interface is maintained by controlling surface flatness (Ra 0.8–3.2 μm) and applying electrolytic tin plating. Silver plating (5–25 μm) is available for high-fault-current applications where tin alloy formation over time is a concern. All terminals pass IEC 60947-1 contact resistance requirements on routine testing.

Mechanical Robustness and Installation

Copper grounding terminals must withstand the mechanical stress of conductor clamping torques (M6: 4 Nm, M8: 8 Nm, M10: 16 Nm per IEC 60947), vibration in switchgear panels, and thermal cycling from load variation. Copper’s high ductility (elongation ≥30%) prevents cracking under bolt tightening stress. Slotted holes accommodate misalignment during installation. Mounting holes for chassis fixing are oversized for easy alignment. All formed terminal profiles are designed with adequate bend radii to prevent stress concentration and cracking in service.

Surface Finish and Corrosion Resistance

Bare copper is suitable for immediately assembled and sealed enclosures in dry environments. Electrolytic tin plating (5–15 μm per IEC 60068-2-20) provides oxidation resistance and maintains low contact resistance over 20+ year service life in indoor switchgear. For outdoor, marine, or high-humidity environments, hot-dip tinning or thicker electroplated tin (15–25 μm) is specified. Silver plating (5–25 μm per ASTM B700) is used in substations and marine installations where the highest long-term performance is required. All plating is XRF verified per batch.

Dimensional Standards and Compliance

Copper earth terminals are manufactured to dimensional standards including DIN 46433 for copper busbar accessories, IEC 60998 for terminal blocks, and BS EN 13601 for copper strip material. Custom terminal sizes are manufactured to customer DXF or PDF drawings. CE marking documentation is provided where required by the EU Low Voltage Directive. UKCA marking is available for UK market supply. Material conformance certificates (EN 10204 Type 3.1) are standard.

Custom Engineering and Kitting

Copper grounding terminals are available in customer-specific profiles including non-standard hole patterns, custom lengths and widths, bent and formed shapes, and special surface treatments. Terminal kits for specific panel designs — including earth bars, bonding lugs, fixing bolts, and cable labels — are assembled and packed to customer requirement. Low-volume prototype runs are supported; production batches scale to high volumes for panel OEM assembly lines.

Technical Specifications

Material Grades and International Equivalents

Product Types and Variants

Flat earth lugs (single and multi-hole), right-angle earth terminals, Z-form ground connectors, earth bar sections (drilled), equipotential bonding bars, cable screen grounding clamps, lightning down conductor terminals, test link disconnectors, chassis bonding straps, neutral-to-earth (NE) links, and custom formed grounding terminals to drawing.

Applications in Industry

LV switchgear and distribution boards; MV switchgear panels; motor control centres; transformer neutral and frame earthing; generator set frame bonding; cable screen earthing in instrumentation and control panels; lightning protection and surge protection systems; main equipotential bonding in commercial and industrial buildings; offshore platform and marine electrical systems; renewable energy installations (solar PV inverter grounding, wind turbine bonding); data centre power distribution earthing.

Manufacturing Process

1. Copper strip procurement — Cu-ETP ASTM B187 / BS EN 13601 with MTC
2. Incoming inspection — XRF composition, dimensional, hardness, conductivity
3. Blanking — progressive die stamping or single-hit blanking on power press
4. Punching — M4–M12 holes and slotted holes punched to DIN 46433 pattern
5. Forming — CNC press brake bending for angled and Z-form profiles
6. Deburring — rotary barrel or vibratory deburring; burr <0.1 mm
7. Cleaning — alkaline degreasing and acid pickling
8. Plating — barrel or rack electroplating (tin, silver, nickel)
9. Inspection — 100% visual, sampling dimensional CMM check
10. Packing and documentation — poly bag, export carton, MTR, certificates

Quality Standards and Certifications

Material: ASTM B187, BS EN 13601, IS 191. Dimensions: DIN 46433, IEC 60998. Plating: IEC 60068-2-20 (tin), ASTM B700 (silver). Performance: IEC 60947-1 contact resistance, IEC 60364-5-54 earthing requirements. Lightning protection: IEC 62305-3, BS EN 62561. ISO 9001:2015 QMS. REACH and RoHS compliance. Material test reports (EN 10204 Type 3.1) standard.

Why Choose Electrical Accessories India

Electrical Accessories India manufactures copper grounding terminals and earthing accessories from its Jamnagar, Gujarat facility with over 30 years of experience in copper pressing and stamping. We maintain copper strip inventory in multiple grades and thicknesses for fast turnaround. In-house progressive die tooling enables complex terminal profiles with ±0.1 mm precision. Full documentation — MTR, dimensional reports, plating certificates, REACH, RoHS, CE — is standard. We supply prototype quantities for qualification and scale to mass production for OEM panel assembly lines. Shipments to 30+ countries with full export documentation.

Frequently Asked Questions (FAQ)

What copper grade is recommended for grounding terminals?

Cu-ETP (C11000, CW004A) is the standard grade for grounding terminals. It provides ≥100% IACS conductivity and is the most cost-effective high-conductivity copper. Cu-OF (C10200) is specified for environments where hydrogen embrittlement or oxygen sensitivity is a concern, such as vacuum equipment or high-temperature furnace applications.

What is the difference between a grounding terminal and an earthing terminal?

The terms are interchangeable; “grounding” is preferred in North American (NEC) standards and “earthing” in IEC/BS standards. Both refer to the connection of metallic parts to the protective earth (PE) system for safety under fault conditions. The physical component is identical; only the terminology differs by region.

Are copper grounding terminals supplied tin-plated as standard?

Yes. Electrolytic tin plating (5–15 μm) is our standard surface finish for copper grounding terminals. Tin plating prevents oxidation, maintains low contact resistance over the service life of the installation, and prevents galvanic corrosion when in contact with zinc-coated steel hardware. Bare copper is available where immediate assembly is confirmed.

What bolt hole sizes are available?

Standard clearance holes: M4 (4.5 mm), M5 (5.5 mm), M6 (6.5 mm), M8 (8.5 mm), M10 (10.5 mm), M12 (13.0 mm). Slotted holes are available for position adjustment. Custom non-standard hole sizes are punched to drawing.

Can copper earth bars be supplied pre-drilled for cable entries?

Yes. Copper earth bars are supplied with regularly spaced M6 or M8 holes at 25 mm or 50 mm pitch along their length, plus oversized mounting holes for chassis fixing. Custom hole patterns to customer drawing are available with 3–4 week tooling lead time for new patterns.

What is the minimum order quantity for custom grounding terminals?

Minimum order for custom profiles is 500 pieces for existing die sizes; new tooling is available from 1000 pieces. Standard catalogue configurations are available from 50 pieces for prototype and qualification purposes.

Do copper grounding terminals comply with IEC 60364?

Yes. Our copper earth terminals are manufactured to the requirements of IEC 60364-5-54 (earthing arrangements and protective conductors) for material, conductivity, and connection method. Compliance documentation and material test reports conforming to EN 10204 Type 3.1 are provided.

Are copper grounding terminals suitable for outdoor installations?

For outdoor installations, we recommend tin-plated copper terminals with 15–25 μm plating, or hot-dip tinned terminals for the best corrosion resistance. In highly corrosive environments (coastal, industrial), silver-plated terminals or stainless steel fixings with copper terminal bodies are recommended.

Can I get copper grounding terminals with pre-fitted cable lug connections?

Yes. Assemblies combining a copper grounding terminal bar with pre-fitted copper cable lugs crimped to specified cable sizes are available as ready-to-install units. Specify cable size, conductor type, and terminal bolt pattern when enquiring.

Equivalent Terms – Multilingual Reference

Related Products and Linked Terms

• Copper Pressing and Copper Pressed Parts
• Copper Busbar Links – Flexible Busbar Connectors
• Copper Fuse Clips – Pressed Copper Fuse Clips
• Brass Stamping – Brass Stamped Parts and Components
• Electrical Pressed Switch Parts in Brass
• Copper Machined Parts

Indicative Pricing

Copper Items: US$ 15.80 per kilogram, CIF USA Port

Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.

Request a Quote

Supply your drawing, sample, or specification and receive a detailed technical and commercial proposal within 24 hours. Electrical Accessories India engineers are available to advise on alloy selection, surface finish, hole pattern, and grounding system design for your copper earth terminal requirements. We export to 30+ countries with full shipping documentation.

Contact us: Send your RFQ with quantity, drawing (PDF/DXF), thickness, and alloy grade. We respond within 24 business hours.
