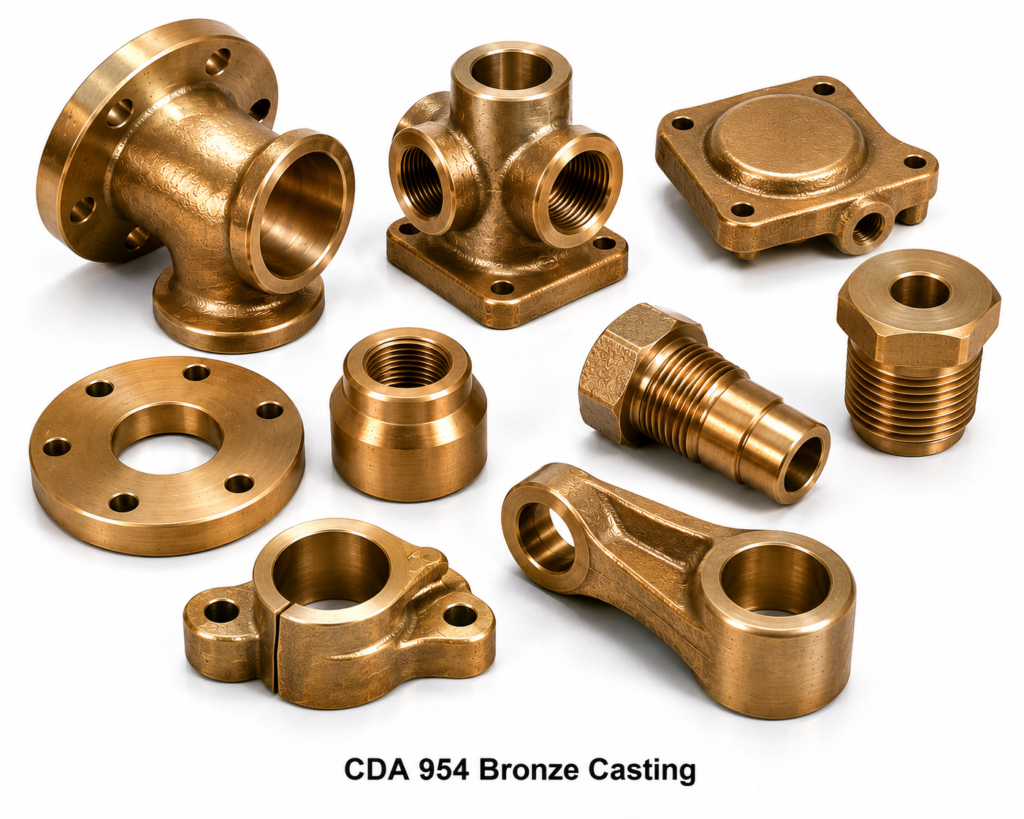

CDA 954 Bronze Casting
CDA 954 Bronze Casting – C95400 | AB2 | High Strength Aluminum Bronze
CDA 954 is the CDA designation for C95400 aluminum bronze (AB2), the most widely specified high-strength aluminum bronze casting grade. Contains 10.0–11.5% Al and 3.0–5.0% Fe. Tensile strength 570 MPa min per ASTM B148. Electrical Accessories India is a major exporter of CDA 954 castings to US customers, supplying pump bodies, valve bodies, bearing housings, and wear components.
Chemical Composition – CDA 954 / C95400
| Element | Min % | Max % |
|---|---|---|
| Cu | Balance | — |
| Al | 10.0 | 11.5 |
| Fe | 3.0 | 5.0 |
| Ni | — | 0.5 max |
| Mn | — | 0.5 max |
| Pb | — | 0.05 max |
Equivalence
| Standard | Designation |
|---|---|
| CDA/UNS | CDA 954 / C95400 |
| EN 1982 | CC331G |
| ISO/DIN | CuAl10Fe3 |
| BS 1400 | AB2 |
| IS 318 | Grade 2 |
Properties (ASTM B148)
| Property | Value |
|---|---|
| Tensile Strength | 570 MPa min |
| Yield Strength | 250 MPa min |
| Elongation | 12% min |
| Hardness | 140–180 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US Port.
