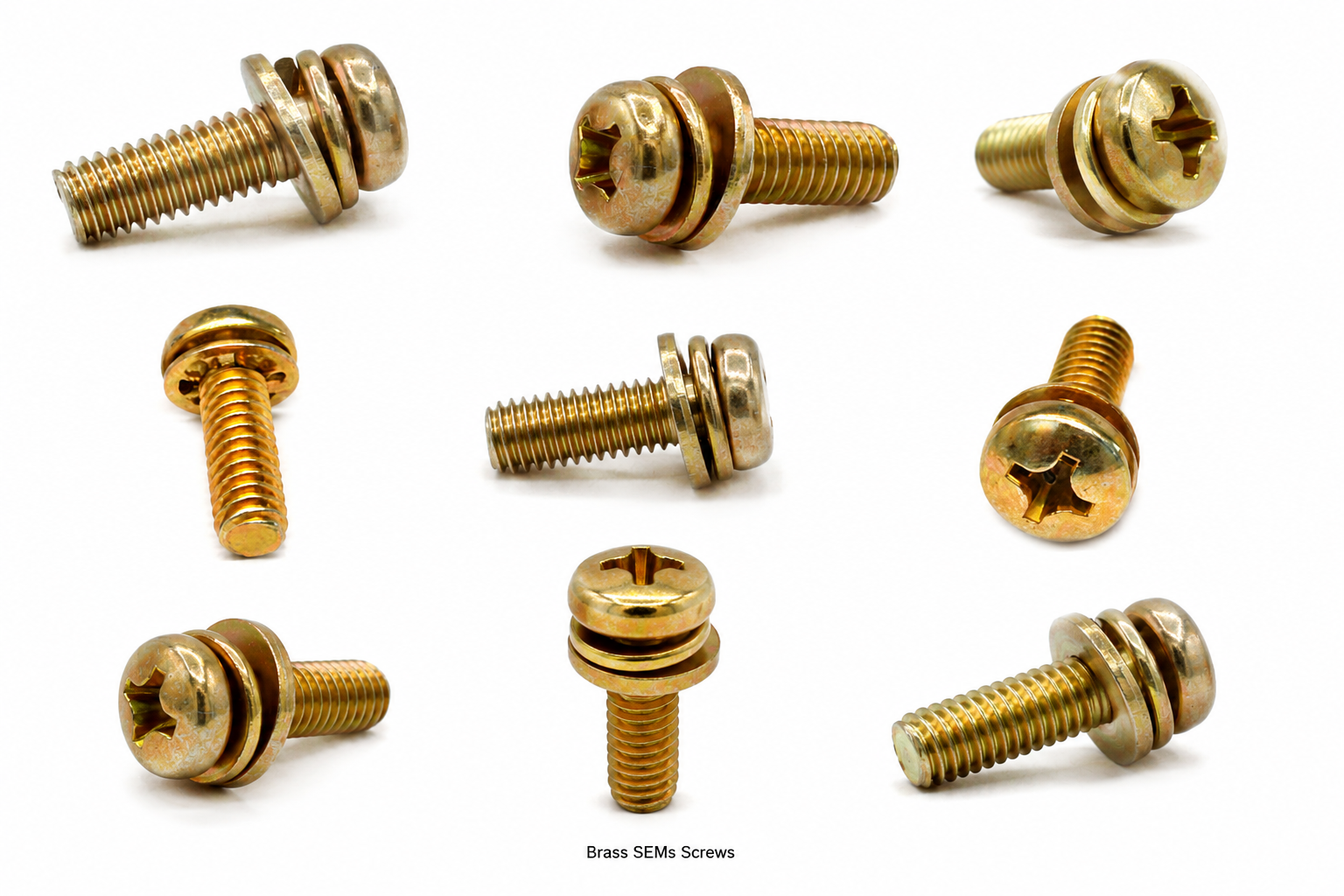

Brass SEMs Screws – Washer Embedded Machine Screws

Brass SEMs Screws – Washer Embedded Machine Screws

Electrical Accessories India manufactures Brass SEMs Screws – precision fasteners with a pre-assembled, captive washer permanently swaged beneath the screw head. Also known as washer-assembled screws, screw-washer assemblies, or captive washer screws, brass SEMs screws eliminate the need for separate washer installation during panel assembly, reduce part count, improve assembly speed, and ensure consistent bearing surface coverage on every joint. These screws are manufactured from free-cutting brass CZ121 (CW614N / UNS C36000) and comply with DIN, ISO, IFI, and IS standards. They are widely specified by electrical OEMs, switchgear manufacturers, EPC contractors, instrumentation engineers, and panel builders across India, Europe, the UK, USA, and export markets.

Product Overview

What Are SEMs Screws? (Screw-Washer Assemblies)

SEMs screws (from the Japanese manufacturer Sems Co., which pioneered the concept) are machine screws with a pre-assembled captive washer that cannot be removed under normal handling. The washer – flat washer, spring washer, or combination washer – is swaged onto the screw shank during manufacturing before thread rolling, making it permanently captive. In brass SEMs screws, the combination of the corrosion-resistant brass body, non-magnetic properties, and high electrical conductivity makes them the first choice for electrical panel earthing screws, ground lug fasteners, contactor terminal screws, busbar clamping screws, and cable lug terminal fasteners.

Material Grade and Alloy Selection

Standard brass SEMs screws are manufactured from CW614N (EN) / CZ121 (BS) / C36000 (UNS) free-cutting brass bar – the industry reference alloy for machinability (100% machinability rating), containing 57–59% copper, 2.5–3.5% lead, and balance zinc. For RoHS-compliant assemblies, lead-free alternatives in CW617N (DZR brass) and CW724R (silicon brass) are available. Indian Standard IS 319 Type I (leaded) and Type II (unleaded) are the equivalent domestic grades. The washer component is typically manufactured from the same CZ121 brass or can be supplied in A2 stainless steel (for corrosion-critical applications) or spring bronze (CW452K) for spring washer variants.

Washer Types Available in SEMs Configuration

Electrical Accessories India offers brass SEMs screws in multiple washer configurations: (1) Flat Washer SEMs – standard plain washer for load distribution on soft panel substrates; (2) Spring Washer SEMs – split helical spring washer for vibration-resistant joints in motor control centres and generator panels; (3) Combination SEMs – flat washer + spring washer stacked assembly for maximum contact area combined with vibration resistance; (4) Serrated Flange SEMs – integrated serrated flange forged directly under the head for enhanced anti-loosening; (5) Conical Washer SEMs – Belleville washer for high-spring-rate clamping in bus bar applications. All washer configurations are captively swaged and cannot fall off during assembly or disassembly.

Head Profiles and Drive Types

Available head profiles for brass SEMs screws include: Pan Head (DIN 7985 / ISO 7045), Phillips or Pozidriv recess; Hex Head (DIN 933/931) for spanner-driven panel mounting; Hex Flange Head for one-side access assembly; Truss Head (broad bearing surface for thin-gauge sheet metal); Binding Head for terminal block and bus bar assembly; and Fillister Head for countersink-adjacent mounting. Drive types include Slotted, Phillips (PH1/PH2/PH3), Pozidriv (PZ1/PZ2), Torx (TX10–TX30), Hex Socket (Allen), Hex External, and Combination (Slot+PH) for maintenance-friendly sites.

Thread Forms and Size Range

Brass SEMs screws are produced in ISO Metric Coarse thread (most common for new electrical designs), ISO Metric Fine (for vibration-prone applications or thin wall aluminium chassis), UNC (Unified National Coarse – No.4 to 3/8″), and UNF (Unified National Fine). Standard metric size range: M3 to M10, lengths 6 mm to 60 mm. Inch range: No.4 (4-40 UNC) to 3/8″-16 UNC / 3/8″-24 UNF. Thread tolerance 6g per ISO 965. Longer lengths and non-standard pitches manufactured to order. Captive washer OD is sized to DIN 125 or DIN 127 outer diameter per applicable standard.

Surface Finishes and Platings

Standard supply is in natural bright brass finish (mill finish). Electroplated finishes available: nickel plating (3–15 µm EN 12540, excellent corrosion resistance), tin plating (3–10 µm, for PCB and soldering applications), chrome plating (decorative), zinc plating (6–12 µm, chromated passivation), and gold plating (0.5–2 µm on nickel undercoat, for precision electronics). Nickel-plated brass SEMs screws are the most specified for electrical switchgear panels in coastal and humid tropical environments. REACH/RoHS declarations and EN 10204 3.1 material test certificates provided.

Applications in Electrical Panel and OEM Assembly

Brass SEMs screws are specified extensively in: earth bar and earth lug fasteners in distribution boards and MCCs; cable lug terminal screws on busbar risers; DIN rail mounted component fasteners (MCBs, RCDs, contactors); switchgear cover panel screws; instrument transformer (CT/PT) secondary terminal screws; motor terminal box clamping screws; generator AVR panel screws; solar inverter and PV combiner box fasteners; UPS and battery charger chassis screws; and telecommunications rack fasteners. The captive washer ensures no loose washers fall into live electrical equipment during maintenance – a critical safety advantage for energised panel access.

Mechanical Performance and Torque Data

Typical mechanical properties (CW614N/CZ121): Tensile strength 380–430 MPa; Proof load 270–310 MPa; Vickers hardness 90–130 HV; Elongation 15–20%. The captive washer distributes the clamp load over a larger area, reducing Hertz contact pressure on aluminium and GRP panel substrates. Recommended tightening torques: M4 pan head SEMs (CZ121, dry): 1.0–1.3 Nm; M5 hex head SEMs: 2.5–3.0 Nm; M6 hex head SEMs: 4.5–5.5 Nm. For spring washer SEMs, add 10–15% to the prevailing torque to compress the spring to flat before calculating clamp load.

Key Features

• Pre-assembled captive washer – flat, spring, or combination – permanently swaged; cannot fall off
• Material: Free-cutting brass CW614N / CZ121 / C36000; lead-free grades on request
• Head types: Pan, Hex, Hex Flange, Truss, Binding, Fillister
• Drive: Slotted, Phillips, Pozidriv, Torx, Allen, Combination
• Thread: M3–M10 ISO Metric; No.4 to 3/8″ UNC/UNF
• Washer options: Flat (DIN 125), Spring (DIN 127), Combo (flat + spring), Serrated Flange, Belleville
• Finish: Natural / Nickel / Tin / Chrome / Zinc plated
• Compliant with DIN, ISO, IFI, IS standards
• EN 10204 3.1 MTR available; REACH/RoHS declarations on request
• Non-magnetic, corrosion-resistant – ideal for electrical enclosures and panel boards

Corrosion Resistance and Environmental Performance

Bare brass SEMs screws provide good corrosion resistance in dry and mildly humid indoor environments (Class C2–C3 per ISO 9223). Nickel-plated versions achieve 200+ hours Neutral Salt Spray (NSS) per ASTM B117, suitable for IP54/IP65 outdoor switchgear in tropical and coastal environments. For marine and offshore installations, A2 stainless steel washer with brass body or full silicon bronze assembly is recommended. Brass SEMs screws are galvanically compatible with copper, brass, and bronze substrates; aluminium substrate contact is acceptable in non-electrolytic indoor environments.

Assembly Efficiency and Part Consolidation

The primary engineering advantage of SEMs screws is assembly efficiency: one captive part replaces three separate components (screw + flat washer + spring washer), reducing assembly errors, part mismatches, and loose component losses. In high-volume electrical OEM production lines, SEMs screws reduce panel assembly time by 20–35% compared to separate screw-and-washer assembly. For automated screw feeding systems (vibratory bowl feeders, SCARA robot assembly), the uniform geometry of SEMs screws provides consistent escapement and feeding reliability. Compatible with all standard powered screwdriver heads.

Anti-Vibration and Locking Features

Spring washer SEMs screws provide inherent vibration resistance through the helical spring action of the DIN 127 split ring washer swaged beneath the head. For high-vibration applications in motor control centres (MCCs), traction panels, compressor control panels, and generator sets, combination SEMs (flat + spring) or serrated flange SEMs provide the highest resistance to self-loosening. Torx and Allen drive SEMs in hex head configuration are specified for tamper-resistant outdoor electrical cabinets. For mission-critical vibration environments, supplementary thread-locking compound (Loctite 243/270) can be applied to the thread while retaining the washer in its captive position.

Quality and Inspection

All brass SEMs screws undergo 100% thread gauging (GO/NO-GO per ISO 1502), dimensional inspection, washer captivity pull-test (washer must not disengage below specified load), and surface finish verification. Batch sampling follows ISO 3269 Acceptance Quality Level (AQL) 1.0. Dimensional conformity to DIN 967 (pan head with washer), IFI 111 (inch series SEMs), and applicable DIN thread standards. Hardness testing per EN ISO 6507 and tensile testing per ISO 898-1 on sample basis. Lot traceability maintained through heat number, production date, and batch records for full supply chain documentation.

Technical Specifications

Brass Material Grades – International Equivalents

Types of Brass SEMs Screws by Head Style

Brass SEMs screws are available in two principal head styles – Cheese Head and Pan Head – each combined with different washer configurations to suit a wide range of electrical panel assembly, switchgear, and instrumentation applications.

1. Cheese Head Brass SEMs Screws

Cheese head SEMs screws feature a cylindrical head with a flat top and vertical sides, giving a compact, low-profile seating that is ideal for tight clearance locations inside distribution boards, cable duct assemblies, and DIN rail enclosures. The recessed head geometry minimises lateral protrusion while providing a large bearing face for good clamp load distribution.

Cheese Head SEMs Screws – Washer Configurations

2. Pan Head Brass SEMs Screws

Pan head SEMs screws feature a low, rounded dome-shaped head with a flat underside bearing surface and slightly curved outer profile. The pan head offers a larger bearing diameter than cheese head, making it one of the most commonly used head styles in electrical panel work. The wide, flat underside ensures excellent clamp load distribution and reduces the risk of surface damage on painted panels and plastic enclosures.

Pan Head SEMs Screws – Washer Configurations

Summary – All Head and Washer Combinations at a Glance

Product Types / Variants

Applications in Industry

Manufacturing Process

Brass SEMs screws are manufactured in a multi-stage process. The screw body is produced by automatic cold heading (for M5–M10) or by Swiss-type multi-spindle automatic screw machining (for M3–M5 precision sizes). The washer component – flat, spring, or combination – is stamped from brass strip or wire-formed on high-speed coiling machines. The key manufacturing step is washer assembly and swaging: the pre-formed washer is loaded onto the screw blank, then the screw shank end is roll-threaded. During thread rolling, the thread crest diameter exceeds the washer inner diameter, permanently captivating the washer between the thread and the underhead bearing surface. The screw cannot be disassembled without destroying the thread. All SEMs screws then undergo automated optical inspection for head fill, washer presence, washer position, thread runout, and length. Final inspection includes GO/NO-GO thread gauging per ISO 1502, washer pull-off force testing (100% sample minimum 10N for M4), dimensional verification, and batch documentation with heat number traceability.

Quality Standards and Certifications

Why Choose Electrical Accessories India

• ISO 9001:2015 certified manufacturer with in-house screw machining and cold heading facilities
• Full range of SEMs configurations – flat, spring, combo, serrated, Belleville – from one source
• Lead-free grades (CW617N, CW724R) available for RoHS/REACH compliant OEM supply
• Priced at US$ 11.50 per kilogram (EXW Jamnagar) – competitive for OEM volume contracts
• Custom head profiles, special drive recesses, non-standard washer OD to drawing
• Export experience: UK, USA, UAE, Germany, Australia, South Africa, Brazil
• AQL 1.0 inspection with full EN 10204 3.1 MTR and batch traceability documentation
• MOQ 10 kg per size/style; annual blanket orders with scheduled releases available

Frequently Asked Questions (FAQ)

1. What does SEMs stand for in SEMs screws?

SEMs is derived from the name of a Japanese fastener company (Sems Co.) that pioneered the captive washer screw design. The term is now used generically for any screw with a pre-assembled, captive washer that cannot be removed from the screw shank under normal conditions. The washer is permanently trapped by the rolled thread.

2. Can the washer in a brass SEMs screw be replaced or changed?

No. The washer is swaged (captivated) before thread rolling. Once the thread is rolled, the thread OD exceeds the washer bore, making the washer permanently captive. The washer type must be specified at the time of ordering. If a different washer configuration is needed, a new SEMs screw must be ordered.

3. Are brass SEMs screws suitable for earthing and grounding connections?

Yes. Brass SEMs combination screws (flat + spring washer) are widely used for earthing connections in electrical panels. Brass provides adequate electrical conductivity (28% IACS), and the spring washer maintains consistent contact pressure over time, compensating for relaxation in the joint. For high-current earthing buses, consult our copper bolts and brass earth bars product range.

4. What is the difference between flat washer SEMs and combination SEMs?

Flat washer SEMs have only a plain flat washer (DIN 125) captive under the head – providing load distribution. Combination SEMs have both a flat washer and a split spring washer (DIN 127) stacked and captive – providing both load distribution (from the flat washer) and vibration resistance (from the spring washer). Combination SEMs are preferred for motor panels, compressor panels, and any vibration-prone application.

5. What size range is available for brass SEMs screws?

Standard range is M3 to M10 in ISO metric, and No.4-40 UNC to 3/8″-16 UNC in inch series. Lengths: 6 mm to 60 mm standard; up to 150 mm on special order. Non-standard washer OD, custom head profiles, and special thread forms are manufactured to drawing with MOQ 25–50 kg.

6. Can brass SEMs screws be used with automated assembly equipment?

Yes. The uniform external geometry of SEMs screws is specifically designed for automated vibratory bowl feeder and SCARA robot assembly systems. The captive washer prevents jamming of separate washers in feeders. For automated assembly, pan head Phillips or Torx drive SEMs are the most common specification.

7. What is the minimum order quantity for brass SEMs screws?

MOQ is 10 kg per size and washer configuration. For special configurations (non-standard washer OD, custom head, special drive), MOQ is 25–50 kg depending on tooling requirements. Sample quantities for engineering approval are available on request.

8. Are spring washer SEMs screws equivalent to separate screw + spring washer assemblies?

Functionally equivalent in most applications. However, in SEMs design, the spring washer geometry is optimised for the captive position (pre-compressed between head bearing surface and thread), which may differ slightly from a free-assembled DIN 127 washer. For critical torque/clamp load specifications, it is recommended to validate on actual assembly with the SEMs configuration rather than directly applying separate washer assembly torque data.

9. Do you offer nickel-plated brass SEMs screws for coastal electrical installations?

Yes. Nickel-plated (EN 12540, 8–15 µm) brass SEMs screws are available for coastal, tropical, and high-humidity environments. Nickel plating provides 200+ hours NSS (Neutral Salt Spray) per ASTM B117, appropriate for IP54/IP65 outdoor distribution boards and junction boxes.

10. What certifications are provided with brass SEMs screws?

Standard supply includes: EN 10204 Type 2.2 Test Report (dimensional and chemical). On request: EN 10204 Type 3.1 Material Test Certificate (independent lab), RoHS compliance declaration, REACH SVHC declaration, and ISO 9001:2015 quality system certificate. Country-specific certificates for CE marking, BIS, or other statutory requirements available with advance notice.

Equivalent Terms – Multilingual Reference

Related Products and Internal Links

• Brass Machine Screws
• Brass DIN 934 Hex Nuts
• Brass Panel Nuts
• Brass Thumb Screws
• Brass Standoffs
• Brass Spacers
• Silicon Bronze Bolts
• Copper Bolts and Hex Set Screws
• Cable Gland Accessories
• Related terms: washer assembled screws, captive washer screws, screw-washer assemblies, prevailing torque screws, combination washer screws, earthing screws, panel board fasteners, DIN rail fasteners

Request a Quote

Electrical Accessories India supplies Brass SEMs Screws to electrical OEMs, EPC contractors, switchgear manufacturers, panel builders, and distributors worldwide. Indicative price: US$ 11.50 per kilogram (EXW Jamnagar, India). Bulk pricing, OEM annual contracts, and custom configurations available on request. Email: sales@elecaccs.com | Phone: +91-22-43449300 | Location: Jamnagar, Gujarat, India Export Markets: USA, UK, UAE, Germany, Australia, South Africa, Brazil, Southeast Asia, East Africa
