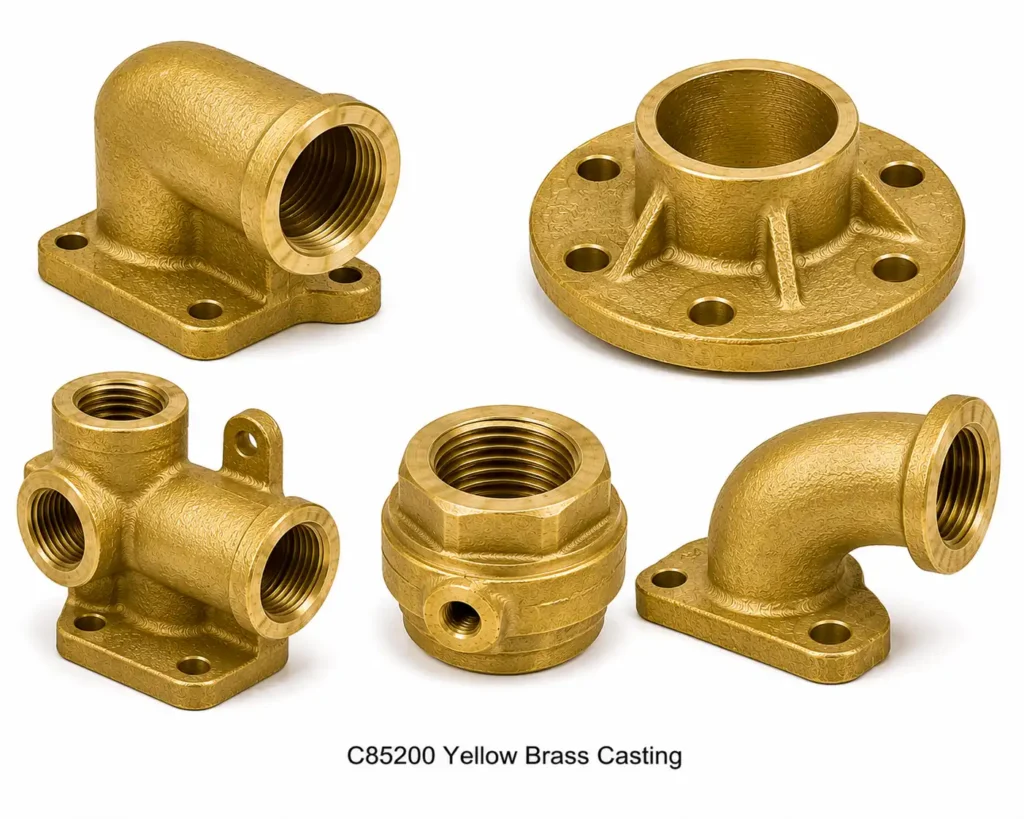

C85200 Yellow Brass Casting
C85200 Yellow Brass Casting
C85200 (UNS C85200, CDA 852) is a leaded yellow brass casting alloy with higher copper content than standard C85700, containing approximately 72% copper, 25% zinc, 2% lead, and 1% tin. The higher copper content compared to C85700 gives C85200 slightly better corrosion resistance and pressure tightness, while retaining excellent machinability and the familiar golden-yellow appearance. C85200 is used for plumbing hardware, electrical component castings, general engineering fittings, and commercial hardware requiring a balance of corrosion resistance, machinability, and cost.
Alloy Overview
C85200 (70–74% Cu) occupies the range between LG2/red brass and standard yellow brass. Its moderate zinc content (24–27%) keeps it in the alpha-brass range for better corrosion performance than C85700, while its lead content (1.5–3.0%) ensures high machinability. Tin addition (0.5–1.5%) improves pressure tightness. Suitable for PN16 applications and standard indoor/semi-exposed environments.
Material Composition – C85200 Yellow Brass Casting
| Element | Min % | Max % | Typical % | Role |
|---|---|---|---|---|
| Copper (Cu) | 70.0 | 74.0 | 72.0 | Primary matrix, corrosion resistance |
| Zinc (Zn) | 24.0 | 27.0 | 25.5 | Strength, castability |
| Lead (Pb) | 1.5 | 3.0 | 2.0 | Machinability |
| Tin (Sn) | 0.50 | 1.50 | 1.0 | Pressure tightness, corrosion |
| Nickel (Ni) | – | 1.0 | 0.2 | Minor toughness |
| Iron (Fe) | – | 0.40 | 0.10 | Impurity |
| Antimony (Sb) | – | 0.05 | – | Dezinc. inhibitor |
| Aluminium (Al) | – | 0.005 | – | Impurity |
| Silicon (Si) | – | 0.005 | – | Impurity |
| Phosphorus (P) | – | 0.02 | – | Deoxidant |
Mechanical and Physical Properties
| Property | Sand Cast | Gravity Die Cast | Standard |
|---|---|---|---|
| Tensile Strength (MPa) | 260 min | 290 min | ASTM B584 / EN 1982 |
| 0.2% Yield Strength (MPa) | 85 min | 105 min | ASTM E8 |
| Elongation (%) | 20 min | 22 min | ASTM E8 |
| Hardness (HB) | 58–82 | ASTM E10 | |
| Density (g/cm³) | 8.65 | – | |
| Electrical Conductivity (%IACS) | 19–22 | ASTM B193 | |
| Thermal Conductivity (W/m·K) | 88 | – | |
| Melting Range (°C) | 860–970 | – | |
| Machinability Rating (%) | 80–90 | CDA (C36000=100%) | |
International Equivalent Grades
| Standard | Designation | Common Name |
|---|---|---|
| USA (UNS/ASTM B584) | C85200 / CDA 852 | Yellow Brass Casting |
| Europe (EN 1982) | CC760S (nearest) | CuZn27Pb2Sn-C |
| Germany (DIN 1709) | CuZn27Pb2Sn-C | Gelbguss |
| India (IS 318) | LTB2 (nearest) | Leaded Tin Brass Grade 2 |
| Japan (JIS H5111) | YBsC1 | Yellow Brass Casting 1 |
| UK (BS 1400) | SCB3 (nearest) | Semired Brass Casting |
| ISO | CuZn27Pb2Sn-C | Yellow Brass Casting |
Applications
C85200 castings are specified for: electrical terminal block and connector housings, plumbing valves and compression fittings for municipal water (non-potable), commercial hardware castings (door hardware, window furniture, builder’s hardware), industrial valve bodies for water and mild chemical service, and OEM electrical hardware requiring higher copper content than standard yellow brass.
Casting Processes Available
| Process | Weight Range | Tolerance Class | Typical Use |
|---|---|---|---|
| Sand Casting | 0.05–200 kg | CT7–CT9 | Complex geometry, low–medium volume, large parts |
| Gravity Die Casting | 0.05–10 kg | CT5–CT7 | Medium–high volume, plumbing fittings, hardware |
| Pressure Die Casting | 0.01–2 kg | CT4–CT6 | High-volume thin-wall decorative and functional parts |
| Investment Casting | 0.01–5 kg | CT4–CT5 | Precision complex components, architectural hardware |
Pricing
US$ 11.50 per kilogram (CIF major port, indicative). Final price subject to casting process, part weight, complexity, order quantity, surface finish, and secondary machining. MOQ: samples from 1 piece; production from 50 pieces. Firm quotation within 24 hours on receipt of drawing or sample.
Quality and Certification
ASTM B584 (C85200); IS 318 LTB2; ISO 9001:2015; EN 10204 3.1 MTR. Pressure castings hydrostatically tested at 1.5× WP. ISO 9001:2015 certified production. EN 10204 3.1 material test certificates issued with every production batch confirming composition within specification limits.
