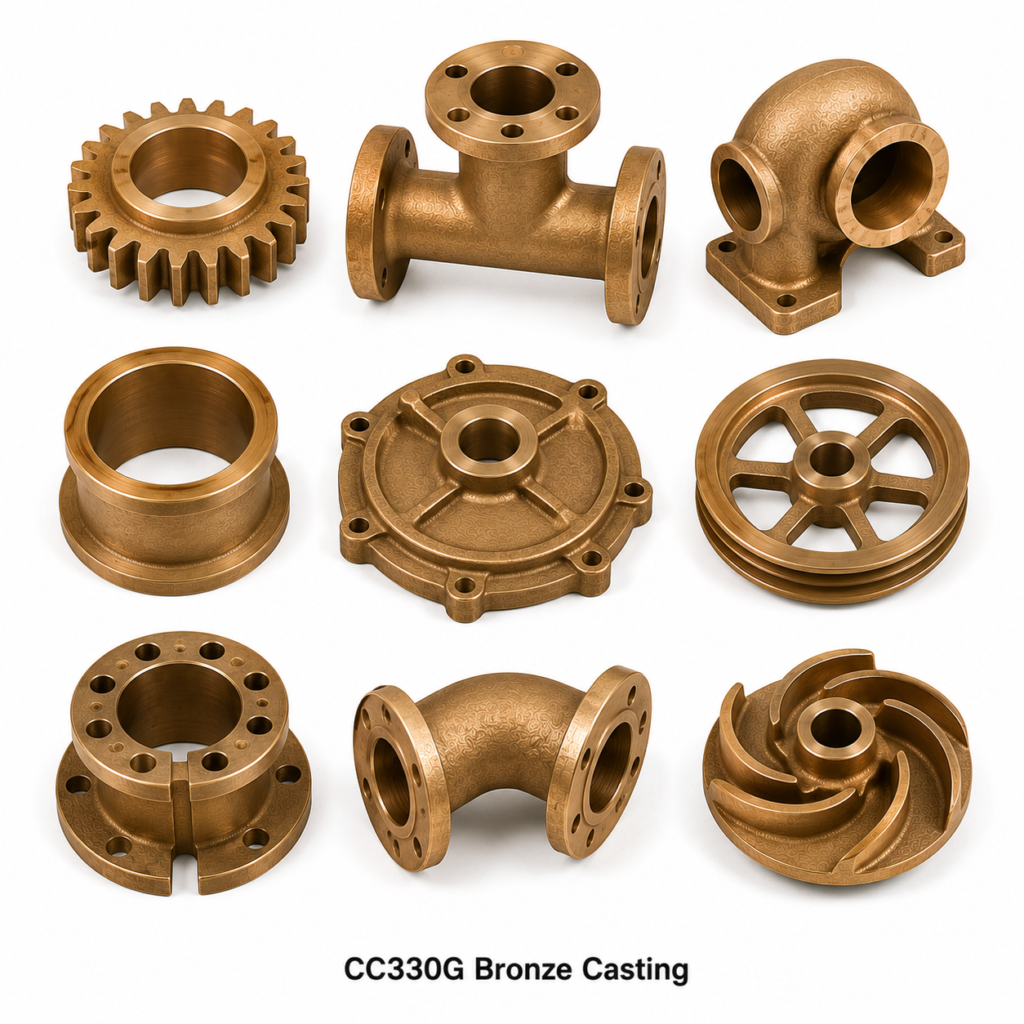

CC330G Bronze Casting
CC330G Bronze Casting – EN 1982 CuAl9 | Equivalent to C95200 AB1 | BS 1400 AB1 | DIN CuAl9
CC330G is the European EN 1982 designation for CuAl9 aluminum bronze, the direct equivalent of C95200 (AB1) and BS 1400 AB1. It contains 8.5–9.5% aluminium and 2.5–4.0% iron, producing a corrosion-resistant alpha-beta microstructure suitable for general engineering, marine fittings, and electrical hardware. Electrical Accessories India supplies CC330G castings with EN 10204 3.1 mill certificates for CE-marked assemblies and EU export orders.
Chemical Composition – CC330G / CuAl9
| Element | Min % | Max % |
|---|---|---|
| Cu | Balance | — |
| Al | 8.5 | 9.5 |
| Fe | 2.5 | 4.0 |
| Ni | — | 1.0 |
| Mn | — | 0.5 |
| Pb | — | 0.05 |
Properties – CC330G (EN 1982)
| Property | Value |
|---|---|
| Tensile Strength | 500 MPa min |
| 0.2% Yield Strength | 200 MPa min |
| Elongation | 15% min |
| Brinell Hardness | 120–160 HB |
| Density | 7.6 g/cm³ |
| Thermal Conductivity | 59 W/m·K |
| Max Service Temp | 300°C |
International Equivalents – CC330G
| Standard | Designation |
|---|---|
| EN 1982 | CC330G |
| ISO 428 | CuAl9 |
| ASTM/UNS | C95200 / AB1 |
| BS 1400 | AB1 |
| DIN 1714 | CuAl9 |
| IS 318 | Gr.1 |
| JIS H5111 | AlBC1 |
| China GB | ZCuAl9Fe4 |
Applications
CC330G / CuAl9 castings are used for marine deck fittings, pump bodies, valve bodies, pipe flanges, electrical busbar connectors, earthing clamps, and cable gland housings in Zone 2 hazardous area applications. The alloy’s moderate strength (500 MPa) and good machinability (30% relative) make it cost-effective for medium-volume casting orders.
Pricing – US$ 16.80/kg
CC330G / CuAl9 Bronze Casting: US$ 16.80 per kilogram, CIF US/EU Port. Submit RFQ for firm quotation.
