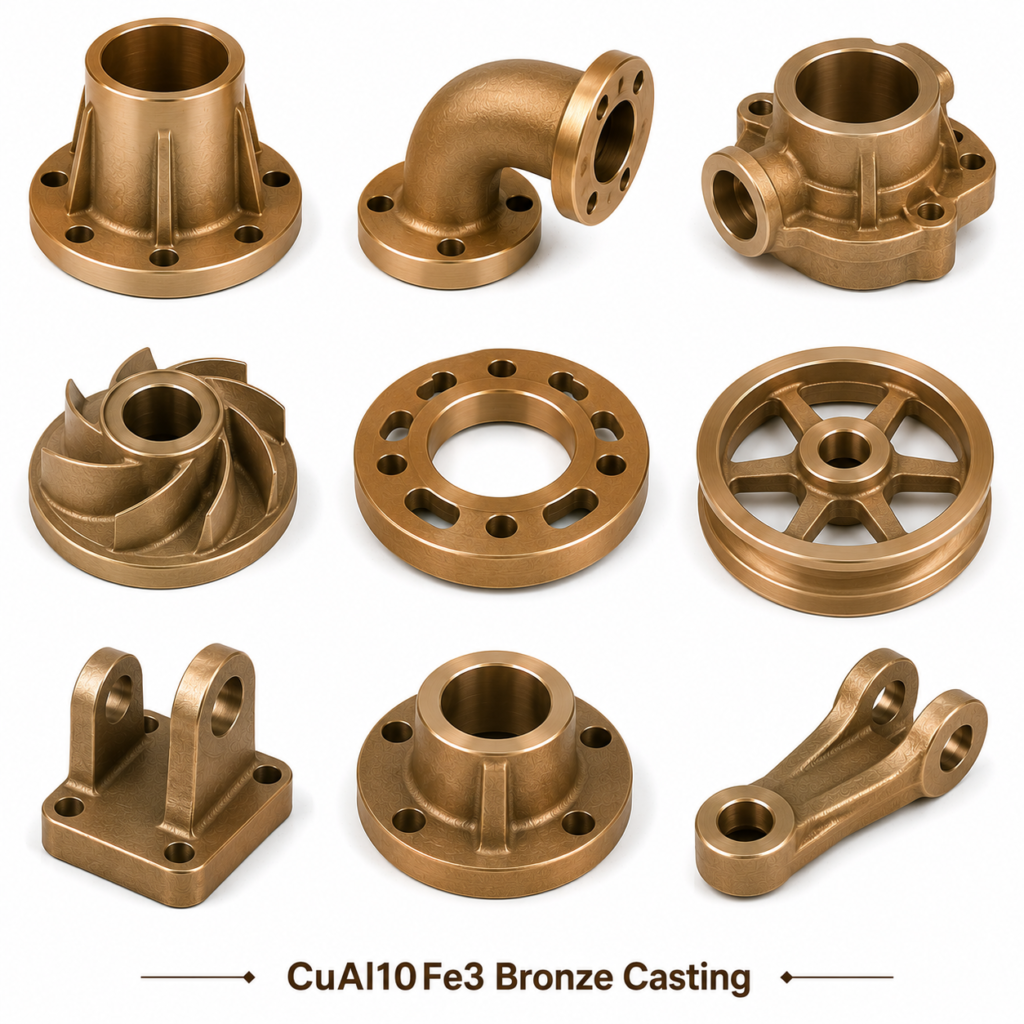

CuAl10Fe3 Bronze Casting
CuAl10Fe3 Bronze Casting – ISO 428 | CC331G | C95400 AB2 | DIN 1714
CuAl10Fe3 is the ISO 428 and DIN 1714 designation for aluminum bronze equivalent to C95400 (AB2) and EN 1982 CC331G. This designation is commonly specified in German, Dutch, Scandinavian, and Swiss engineering specifications. Electrical Accessories India supplies CuAl10Fe3 castings with DIN and EN certification.
Chemical Composition – CuAl10Fe3 / C95400
| Element |
Min % |
Max % |
| Cu |
Balance |
— |
| Al |
10.0 |
11.5 |
| Fe |
3.0 |
5.0 |
| Ni |
— |
0.5 max |
| Mn |
— |
0.5 max |
| Pb |
— |
0.05 max |
Equivalence Table
| Standard |
Designation |
| ISO 428 / DIN 1714 |
CuAl10Fe3 |
| EN 1982 |
CC331G |
| ASTM/UNS |
C95400 (AB2) |
| BS 1400 |
AB2 |
| IS 318 |
Gr.2 |
| JIS H5111 |
AlBC2 |
Properties
| Property |
Value |
| Tensile Strength |
570 MPa min |
| Yield Strength |
250 MPa min |
| Elongation |
12% min |
| Hardness |
140–180 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US/EU Port.
