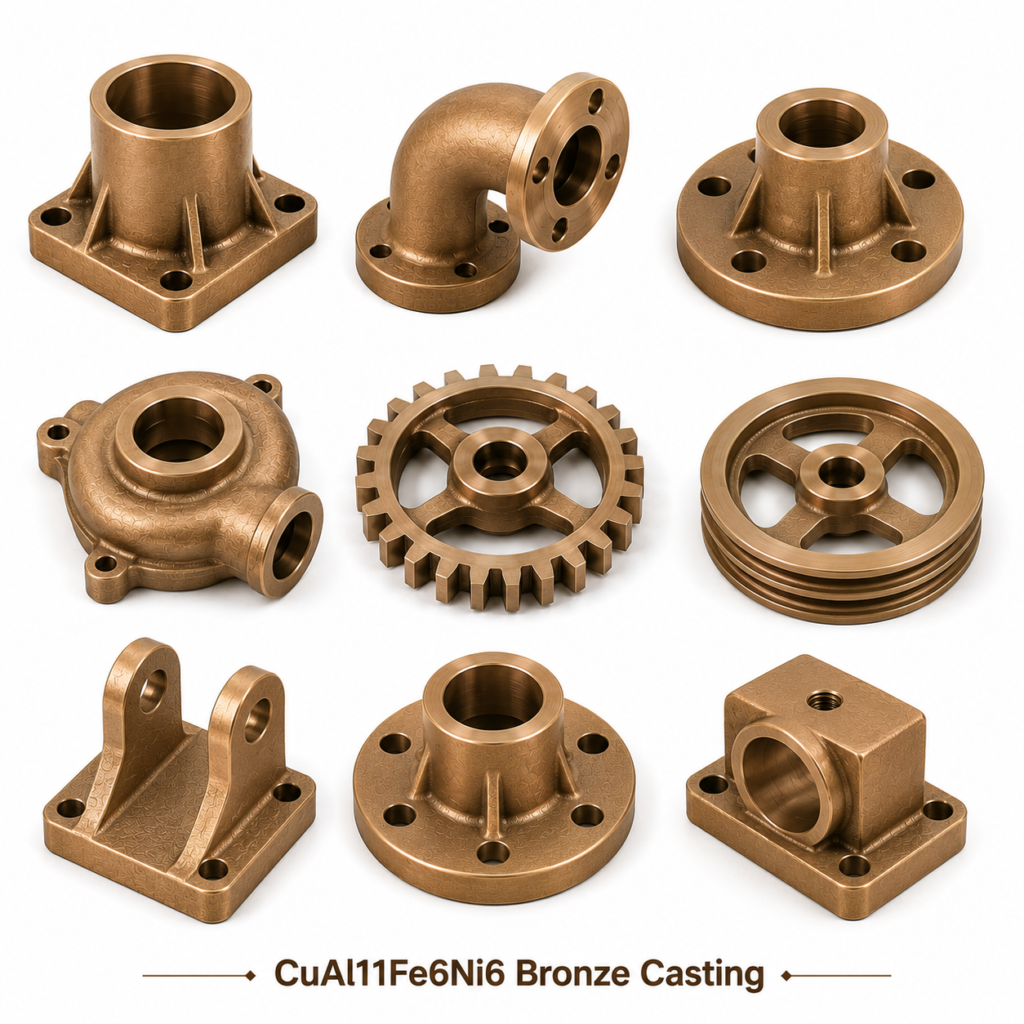

CuAl11Fe6Ni6 Bronze Casting
CuAl11Fe6Ni6 Bronze Casting – DIN 1714 | CC335G | High Strength | Equiv C95700
CuAl11Fe6Ni6 is the DIN 1714 designation for the highest-strength aluminum bronze grade, equivalent to EN 1982 CC335G and closely approximating US grade C95700. Delivers 750 MPa minimum tensile strength with 200–250 HB hardness, making it suitable for the most demanding structural, aerospace, and heavy marine applications.
Chemical Composition – CuAl11Fe6Ni6 / C95700
| Element |
Min % |
Max % |
| Cu |
Balance |
— |
| Al |
10.5 |
12.0 |
| Fe |
5.0 |
7.0 |
| Ni |
5.0 |
7.0 |
| Mn |
1.0 |
3.0 |
| Pb |
— |
0.05 max |
Equivalence
| Standard |
Designation |
| DIN 1714 |
CuAl11Fe6Ni6 |
| EN 1982 |
CC335G |
| ASTM (approx) |
C95700 |
Properties
| Property |
Value |
| Tensile Strength |
750 MPa min |
| Yield Strength |
420 MPa min |
| Elongation |
5% min |
| Hardness |
200–250 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US/EU Port.
