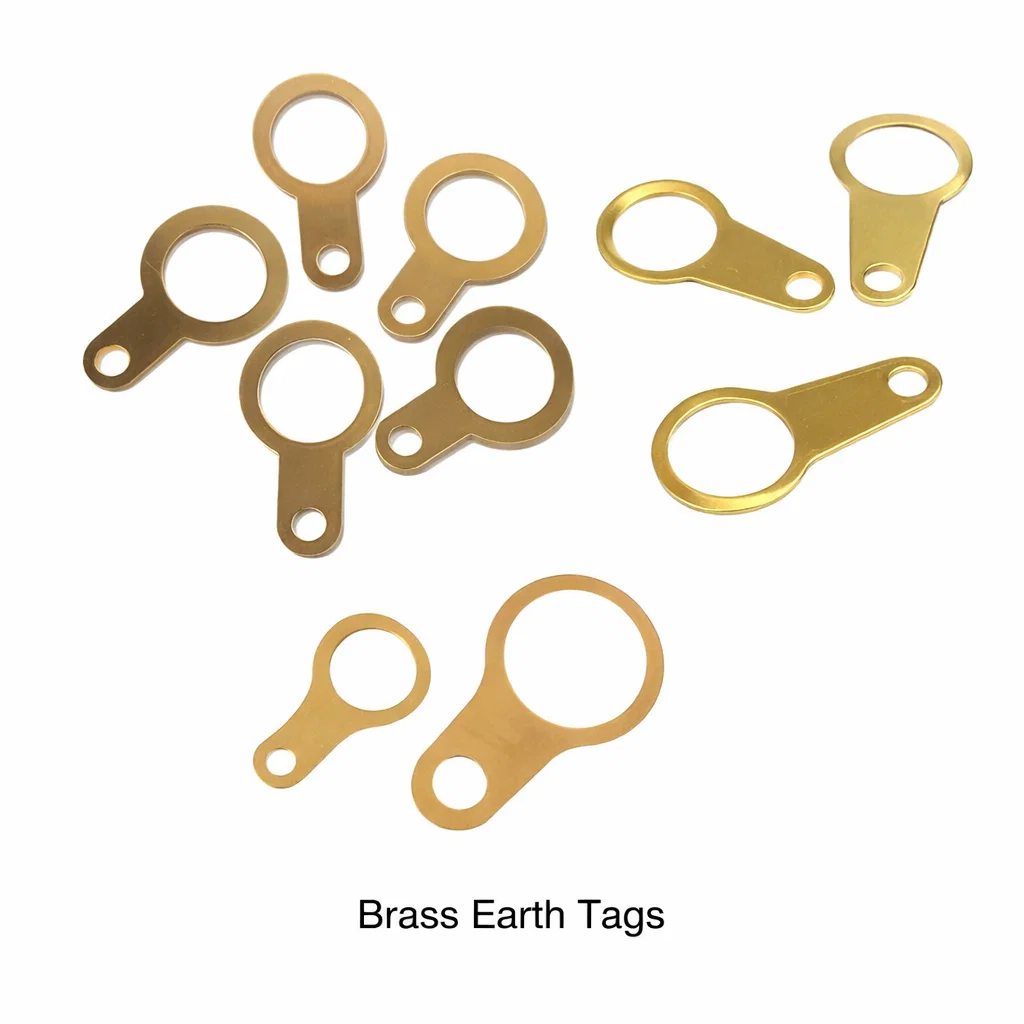

Brass Grounding Tags – Brass Earth Tags

Brass Grounding Tags – Brass Earth Tags

Brass grounding tags are pressed and stamped brass identification components attached to cables, conductors, busbar bolts, and equipment chassis to mark and identify protective earth (PE) and bonding connections in electrical panels, switchgear, and industrial installations. Also known as brass earth tags, brass grounding labels, brass PE tags, brass bonding markers, brass conductor identification tags, brass earth symbol tags, brass grounding markers, and brass cable identification tags, these components are precision blanked from CW614N (CuZn39Pb3) brass strip by Electrical Accessories India. Compliant with IEC 60445, IEC 60446, and IEC 60417 identification standards for use in LV switchgear, panel boards, and industrial control gear.

Product Overview

Brass Earth Symbol Tags and PE Labels

Brass earth symbol tags, brass PE (protective earth) markers, brass GND labels, brass EARTH text tags, and brass grounding identification pieces are flat-pressed brass components with the IEC earth symbol (⏚, IEC 60417-5019) or text embossed, engraved, or stamped on the face. Blanked from CW614N brass strip (0.5–2.0 mm), these tags are used in switchgear panels, distribution boards, and industrial control panels to mark every protective earth connection per IEC 60445 and BS 7671 identification requirements. Standard sizes: 10×20 mm to 25×50 mm with M4–M8 attachment holes. Tin-plated standard; bare brass available.

Brass Cable Earth Tags and Lug Identification

Brass cable earth tags, brass lug identification tags, brass conductor earth markers, brass circuit reference tags, and brass bonding connection labels are fitted to cable lugs, busbar bolts, and conductor terminals to identify earth circuit numbers, cable references, and bonding system designations per IEC 60445. Custom text, circuit references, and alphanumeric codes are engraved or stamped on request. Available with round hole (M4–M8), elongated slot, tee-bar notch, or loop attachment. Used in LV switchgear, motor control centres, transformer neutral earthing connections, and generator set bonding systems.

Brass Bonding Tags for Piping and Services

Brass equipotential bonding tags, brass MEB (main equipotential bonding) identification markers, brass pipe bonding labels, brass structural steel bonding tags, and brass supplementary bonding labels are fitted to bonding conductors connecting metallic services (water pipes, gas pipes, structural steel, lightning protection conductors) to the main earthing terminal. These identify the bonded service and bonding conductor size for inspection and testing per IEC 60364-5-54 and BS 7671 Chapter 54. Heavy-gauge brass (1.5–3.0 mm) is used for structural bolted connections; thin brass (0.5–1.0 mm) for cable-attached identification.

Brass Test Point and Earth Continuity Tags

Brass earth continuity test tags, brass test point markers, brass earth electrode identification labels, and brass main earth terminal (MET) tags are used at earth testing access points, earth electrode connection heads, and main earthing terminal locations in switchgear rooms, substation buildings, and industrial facilities. These provide permanent, corrosion-resistant identification that survives decades of service without fading or peeling (unlike plastic labels). Brass construction ensures compatibility with the copper earthing system and avoids galvanic corrosion at the tag-conductor interface.

Brass Lightning Protection Identification Tags

Brass lightning protection system identification tags, brass down conductor markers, brass air termination network labels, brass earth electrode inspection pit labels, and brass surge protection connection markers are used in lightning protection systems per IEC 62305-3, BS EN 62561, and IS 2309. These identify each component of the lightning protection system for inspection, testing, and maintenance records. Manufactured from heavy-gauge brass (2.0–3.0 mm) with M8–M10 bolt holes for fixed attachment to down conductors, test links, and earth electrode pits. Engraved or embossed with system reference numbers per the lightning protection system design drawing.

Key Features

• CW614N brass — corrosion resistant, durable, and compatible with copper earthing systems
• IEC earth symbol (⏚, IEC 60417-5019) embossed or engraved on request
• Custom text stamping, engraving, or laser marking available
• Attachment options: M4–M8 hole, elongated slot, tee-bar notch, loop form
• Tin plating (3–10 μm) standard; bare brass and nickel-plated available
• Size range: 10×20 mm to 25×50 mm standard; custom on request
• Compliant with IEC 60445, IEC 60446, IEC 60417, BS 7671, DIN 46433
• Full REACH/RoHS compliance and material test documentation

Brass vs Copper for Grounding Tags

Brass grounding tags are slightly less conductive than copper tags (brass ~26–28% IACS vs copper ~100% IACS), but for identification purposes (not current-carrying), conductivity is not the primary selection factor. Brass is preferred over copper for grounding tags in many applications because: (1) better corrosion resistance in marine and humid environments than bare copper; (2) more stable golden appearance that retains marking legibility longer than copper’s green patina; (3) lower cost for standard identification tag applications where copper conductivity is not needed. Copper grounding tags are preferred where the tag also carries current (as a terminal component).

Marking and Identification Options

Brass grounding tags are marked by: (1) Embossing — raised symbols/text from a die during blanking; permanent, no extra process. (2) Engraving — machined recessed text after blanking; precise, variable text. (3) Laser marking — surface laser oxidation marking; fast, no tooling, for variable references. (4) Stamping — dot-punch or impact stamping of text; low cost, permanent. Standard markings: IEC earth symbol ⏚, text “PE”, “EARTH”, “GND”, “ERDE”, “TERRA”, circuit reference numbers, cable numbers, and date/revision codes. Tin plating after marking protects brass and preserves marking visibility against oxidation.

Dimensional Standards and Sizing

Brass grounding tags are manufactured to DIN 46433 accessory dimensions where applicable and to BS 7671 Appendix 7 conductor identification requirements. Standard blank sizes: 10×20 mm (micro), 12×25 mm (small), 15×30 mm (standard), 20×40 mm (large), 25×50 mm (heavy duty). Thickness: 0.5 mm (flexible strap-mount), 1.0 mm (standard), 1.5 mm (heavy-duty substation), 2.0–3.0 mm (lightning protection/NER). Profile tolerances: ±0.2 mm. Hole position: ±0.1 mm. Minimum lot marking consistency is verified by visual inspection of all pieces in a batch.

Surface Finish and Long-Term Durability

Bare brass grounding tags develop a gradual golden-brown patina over time that is self-protecting without significant corrosion in dry indoor environments. For humid, coastal, or marine environments, tin plating (3–10 μm electroplated) prevents corrosion and maintains bright appearance. Nickel plating (3–8 μm) is specified for aggressive chemical environments and elevated temperatures above 120°C. Heavy-duty substation tags may be specified with hard gold plating to maintain bright, easily readable marking for the full 25-year life of a substation installation.

Galvanic Compatibility and Installation

Brass grounding tags are galvanically compatible with both copper and stainless steel hardware (bolts, washers) used in switchgear and earthing systems. The potential difference between brass (CuZn39Pb3) and copper is typically <0.1V in the galvanic series, giving negligible galvanic corrosion at the tag-conductor interface. Brass-to-steel combinations in wet environments have higher galvanic potential difference — for outdoor applications with steel fixing hardware, tin-plated brass tags or stainless steel fixing bolts are specified to minimise galvanic corrosion.

Technical Specifications

Material Grades and International Equivalents

Product Types and Variants

Flat earth symbol tags (round hole); flat text tags (“PE”, “EARTH”, “GND”); tee-bar lug tags; slotted strap tags; loop-form cable wrapping tags; heavy-duty substation identification tags; lightning protection system tags; bonding conductor labels; test point markers; custom engraved circuit reference tags; MEB identification labels.

Applications in Industry

LV switchgear panel earth identification; distribution board PE marking; motor control centre earth bus labels; transformer neutral and frame earth identification; generator set bonding markers; cable screen earthing identification; lightning protection down conductor labels; main earthing terminal identification; equipotential bonding conductor labels; NER (neutral earthing resistor) connection tags; substation earth electrode identification.

Manufacturing Process

1. Brass strip procurement — CW614N ASTM B36/BS EN 12165 with MTC
2. Incoming inspection — composition (XRF), thickness, hardness
3. Blanking — single-hit or progressive die blanking to tag profile
4. Punching — attachment holes and slots
5. Marking — embossing, stamping, engraving, or laser marking
6. Deburring — barrel deburring; burr <0.05 mm
7. Cleaning — alkaline degreasing
8. Plating — barrel tin or nickel electroplating
9. Inspection — 100% visual and marking legibility check
10. Packing — poly bag per batch; export carton with documentation

Quality Standards and Certifications

Material: ASTM B36, BS EN 12165. Marking: IEC 60417, IEC 60445. ISO 9001:2015 QMS. REACH and RoHS compliance. EN 10204 Type 3.1 material test certificates standard.

Why Choose Electrical Accessories India

Electrical Accessories India manufactures brass grounding tags and earth identification accessories at its Jamnagar facility. Our in-house embossing dies, engraving equipment, and laser marking capability enable flexible marking options from standard symbols to custom circuit references. We support low-volume prototype orders and high-volume OEM production. Full documentation is standard with every shipment.

Frequently Asked Questions (FAQ)

What is the IEC earth symbol for brass grounding tags?

The IEC earth (ground) protective symbol is defined in IEC 60417-5019 (⏚ — three horizontal lines of decreasing length below a vertical line). This symbol is embossed or engraved on grounding tags to identify protective earth connections per IEC 60445.

Are brass grounding tags suitable for outdoor substation use?

Yes, with tin plating (10–25 μm) for outdoor use. For coastal and marine outdoor environments, thicker tin plating or nickel-undercoated silver plating is specified for long-term marking legibility.

Can custom circuit reference text be marked on the tags?

Yes. Custom text is engraved, stamped, or laser-marked per batch. For repeating references, embossing dies are made. For variable references within a batch, laser marking is used without tooling cost.

What thickness is required for substation earth electrode tags?

1.5–3.0 mm brass thickness is recommended for substation earth electrode identification tags where permanent outdoor bolted attachment is required. M8 or M10 holes are specified for structural attachment.

Are brass earth tags galvanically compatible with copper conductors?

Yes. Brass (CuZn39Pb3) and copper are close in the galvanic series (both copper-based alloys), with <0.1V potential difference in the galvanic series. Galvanic corrosion at brass tag-to-copper conductor interfaces is negligible in service.

What is the minimum order quantity?

Standard blank tags: 200 pieces. Custom engraved/embossed tags: 500 pieces per text reference. Prototype samples: 25–50 pieces for qualification.

Are brass grounding tags RoHS compliant?

Yes. CW614N brass (CuZn39Pb3) contains lead (<3.5%); it is exempt from RoHS Directive Annex III exemption 6(c) for lead in copper alloy used in electrical connectors. REACH SVHC declaration confirming the exemption is provided with each shipment.

Can you supply brass tags pre-fitted to cable lugs?

Yes. Tags can be pre-fitted to cable lugs as a sub-assembly. Specify lug type, conductor size, and tag marking reference when ordering kitted assemblies for panel assembly lines.

Equivalent Terms – Multilingual Reference

Related Products and Linked Terms

• Brass Stamping – Brass Stamped Parts and Components
• Electrical Pressed Switch Parts in Brass
• Brass Fuse Clips – Brass Fuse Holders
• Brass Switch Contacts – Electrical Contact Parts
• Brass Grounding Tags – Brass Earth Tags
• Brass Earthing Terminals and Brass Earth Tags
• Copper Pressing and Copper Pressed Parts
• Copper Fuse Clips – Pressed Copper Fuse Clips
• Brass Parts – Brass CNC Machined Parts

Indicative Pricing

Brass Items: US$ 11.50 per kilogram, CIF USA Port

Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.

Request a Quote

Supply your drawing, size, marking requirement, and quantity to receive a technical and commercial proposal within 24 hours. We export to 30+ countries.

Contact us: Send your RFQ with quantity, size, thickness, marking, and material. We respond within 24 business hours.
