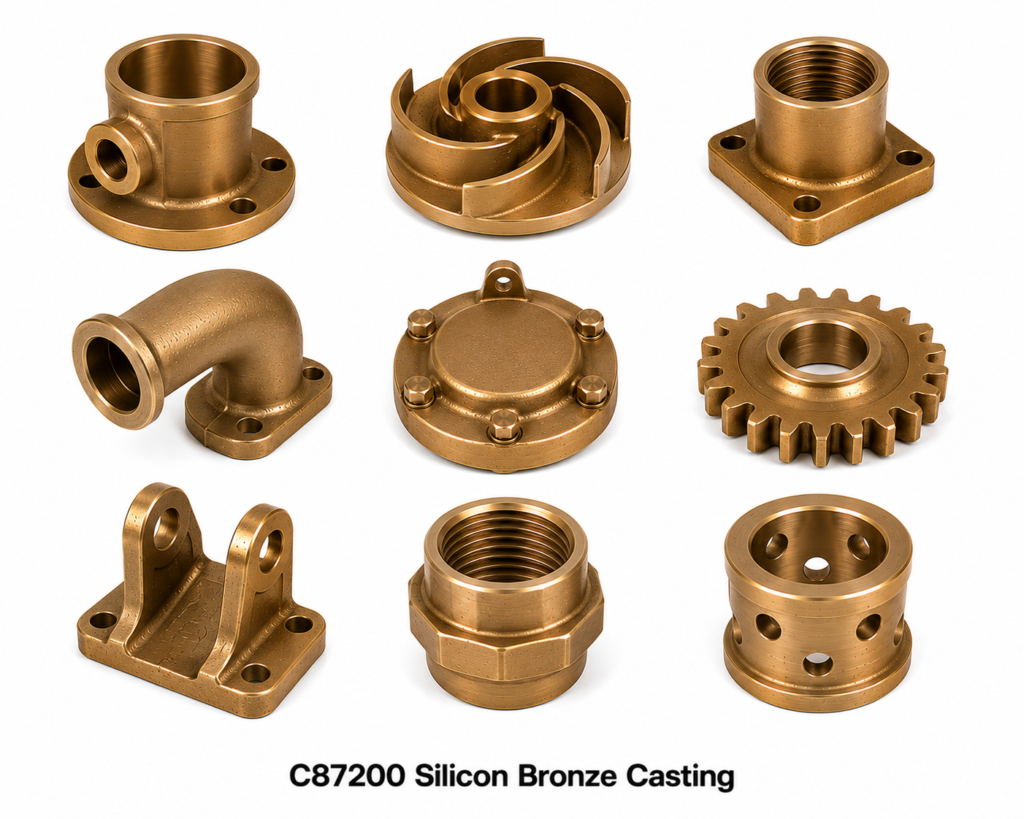

C87200 Silicon Bronze Casting
C87200 Silicon Bronze Casting | UNS C87200
C87200 Silicon Bronze casting (UNS C87200) is a silicon copper alloy. Electrical Accessories India manufactures C87200 silicon bronze castings using sand casting, investment casting, centrifugal casting, green sand casting, and permanent mold casting for marine, plumbing, and industrial applications.
C87200 Chemical Composition and Properties
| Property | C87200 Value | Standard |
|---|---|---|
| UNS Number | C87200 | ASTM/CDA USA |
| Silicon (Si) | 3.5-5.5% | ASTM B198 |
| Zinc (Zn) | Balance | ASTM B198 |
| Copper (Cu) | Remainder | ASTM B198 |
| Tensile Strength | 400 MPa min (approx) | ASTM B198 |
| Elongation | 16% min (approx) | – |
| Density | 8.3 g/cm3 | – |
| Weldability | Good (TIG/MIG ERCuSi-A) | AWS A5.7 |
C87200 Silicon Bronze Casting Processes
C87200 Silicon Bronze Sand Casting
C87200 Silicon Bronze Sand Casting uses furan resin-bonded sand moulds for versatile production of large and medium-weight components. Component weights from 0.05 to 200+ kg. Tolerances CT7-CT9, surface finish Ra 6.3-12.5 um. Lead times 1-2 weeks from existing patterns.
C87200 Silicon Bronze Centrifugal Casting
C87200 Silicon Bronze Centrifugal Casting produces sound hollow cylindrical components with centrifugal force expelling gas and inclusions. Tolerances CT5-CT6. Suitable for bushings, flanges, and cylindrical fittings in C87200.
C87200 Silicon Bronze Investment Casting
C87200 Silicon Bronze Investment Casting achieves CT4-CT5 tolerances and Ra 1.6-3.2 um surface finish using the lost-wax process. Ideal for complex-geometry C87200 components requiring precision and fine surface quality.
C87200 Silicon Bronze Green Sand Casting
C87200 Silicon Bronze Green Sand Casting uses clay-bonded green sand for rapid, economical production of standard hardware shapes. Tolerances CT8-CT10. Most economical option for high-volume standard C87200 hardware.
C87200 Silicon Bronze Permanent Mold Casting
C87200 Silicon Bronze Permanent Mold Casting uses reusable steel dies for high-volume production with excellent dimensional consistency. Tolerances CT5-CT7. Ideal for 500-50,000 piece production runs in C87200.
Applications of C87200 Silicon Bronze Castings
- Marine Hardware: Deck fittings, cleats, hardware for marine boatbuilding
- Plumbing and Valves: Valve bodies, plumbing fittings with silicon dezincification resistance
- Architectural Hardware: Door and window hardware, decorative architectural elements
- General Engineering: Pump components, hydraulic fittings, valve bodies
Quality Standards
- ASTM B198 – Copper-Silicon Alloy Sand Castings
- AWS A5.7 ERCuSi-A – Silicon Bronze Welding Wire
- ISO 9001:2015 Quality Management System
- EN 10204 3.1 Mill Certificates
- RoHS 3 and REACH compliant
Request a Quote for C87200 Silicon Bronze Castings
Contact Electrical Accessories India for C87200 silicon bronze castings. Quotations within 24 hours. Provide drawing (PDF/DXF/STEP), grade (C87200), quantity, casting process, and delivery destination. Indicative pricing: USD 13.90 per kg CIF US Port.
