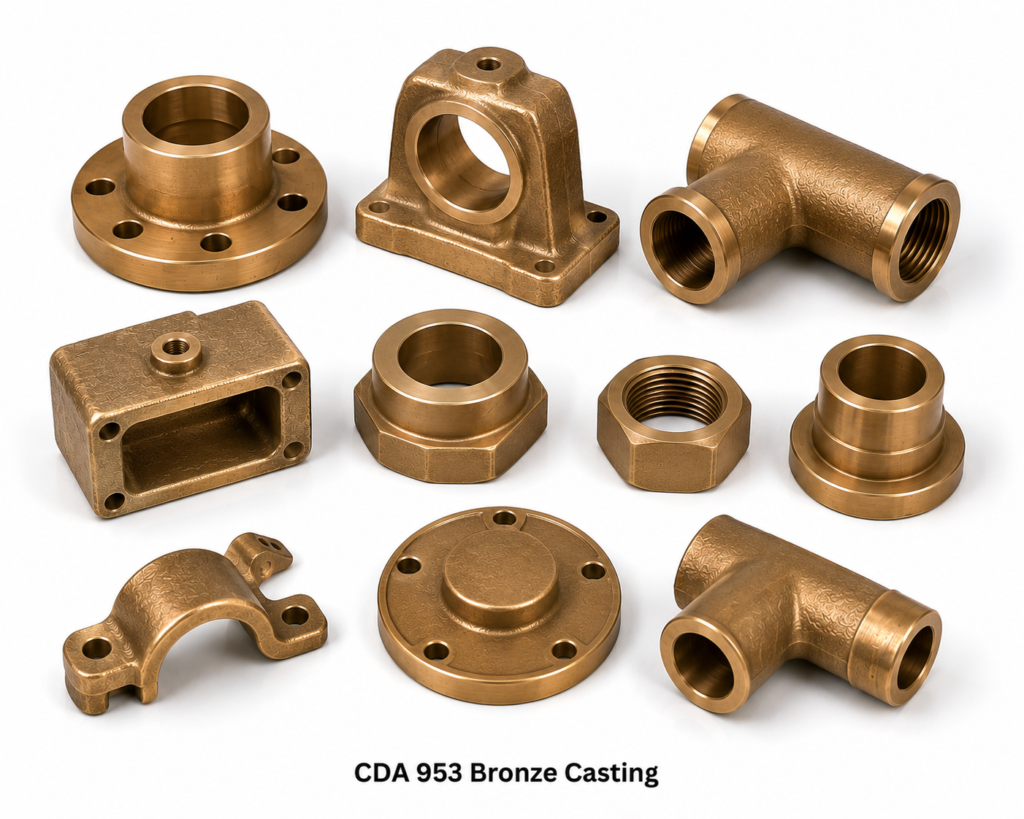

CDA 953 Bronze Casting
CDA 953 Bronze Casting – C95300 | Low Iron Aluminum Bronze
CDA 953 is the CDA designation for C95300, a low-iron aluminum bronze. Lower iron content provides better machinability (35%) and a softer microstructure than AB1 (CDA 952), making CDA 953 suitable for applications where ease of machining outweighs the need for maximum strength. Tensile strength 480 MPa min per ASTM B148.
Chemical Composition – CDA 953 / C95300
| Element |
Min % |
Max % |
| Cu |
Balance |
— |
| Al |
9.0 |
11.0 |
| Fe |
0.8 |
1.5 |
| Ni |
— |
1.0 max |
| Mn |
— |
0.5 max |
| Pb |
— |
0.05 max |
Equivalence
| Standard |
Designation |
| CDA/UNS |
CDA 953 / C95300 |
| IS 318 |
Grade 5 |
Properties
| Property |
Value |
| Tensile Strength |
480 MPa min |
| Yield Strength |
170 MPa min |
| Elongation |
18% min |
| Hardness |
100–140 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US Port.
