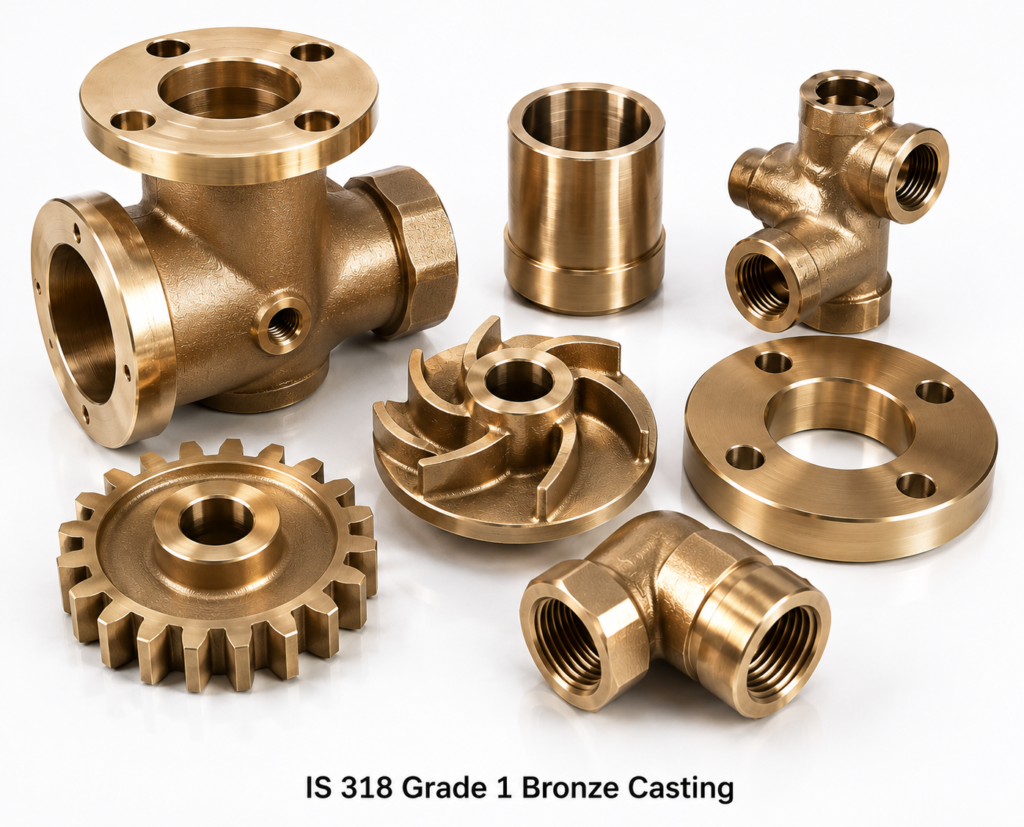

IS 318 Grade 1 Bronze Casting
IS 318 Grade 1 Bronze Casting – Indian Standard | Equiv C95200 AB1 | CuAl9
IS 318 Grade 1 is the Indian Standard (IS 318) designation for aluminum bronze equivalent to C95200 (AB1), CC330G, and CuAl9. Electrical Accessories India manufactures IS 318 Gr.1 castings under its NABL-accredited laboratory, certified to BIS. Used in Indian Navy shipyards, domestic OEM supply, and Indian EPC projects.
Chemical Composition – IS 318 Grade 1
| Element | Min % | Max % |
|---|---|---|
| Cu | Balance | — |
| Al | 8.5 | 9.5 |
| Fe | 2.5 | 4.0 |
| Ni | — | 1.0 max |
| Mn | — | 0.5 max |
Equivalence
| Standard | Designation |
|---|---|
| IS 318 | Grade 1 |
| ASTM/UNS | C95200 (AB1) |
| EN 1982 | CC330G |
| ISO/DIN | CuAl9 |
| BS 1400 | AB1 |
| JIS H5111 | AlBC1 |
Properties (IS 318 Gr.1)
| Property | Value |
|---|---|
| Tensile Strength | 500 MPa min |
| Yield Strength | 200 MPa min |
| Elongation | 15% min |
| Hardness | 120–160 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US/EU Port.
