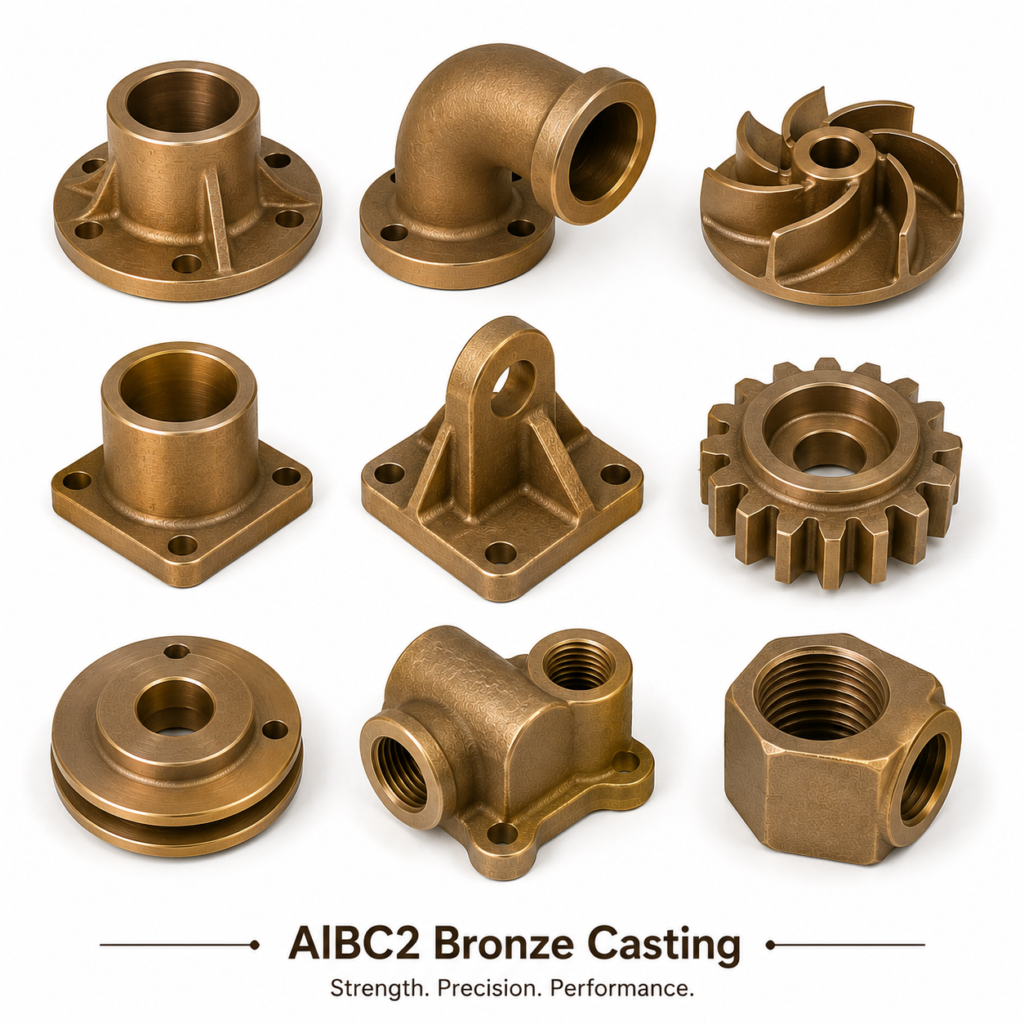

AlBC2 Bronze Casting
AlBC2 Bronze Casting – JIS H5111 | Equiv C95400 AB2 | CC331G | CuAl10Fe3
AlBC2 is the JIS H5111 designation for the high-strength aluminum bronze equivalent to C95400 (AB2), CC331G, and CuAl10Fe3. Electrical Accessories India supplies AlBC2 castings with JIS certification for Japanese and Asian OEM and EPC supply chains.
Chemical Composition – AlBC2 (JIS H5111)
| Element | Min % | Max % |
|---|---|---|
| Cu | Balance | — |
| Al | 10.0 | 11.5 |
| Fe | 3.0 | 5.0 |
| Ni | — | 0.5 max |
| Mn | — | 0.5 max |
Equivalence
| Standard | Designation |
|---|---|
| JIS H5111 | AlBC2 |
| ASTM/UNS | C95400 (AB2) |
| EN 1982 | CC331G |
| ISO/DIN | CuAl10Fe3 |
| BS 1400 | AB2 |
Properties (JIS H5111)
| Property | Value |
|---|---|
| Tensile Strength | 570 MPa min |
| Yield Strength | 250 MPa min |
| Elongation | 12% min |
| Hardness | 140–180 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US/EU Port.
