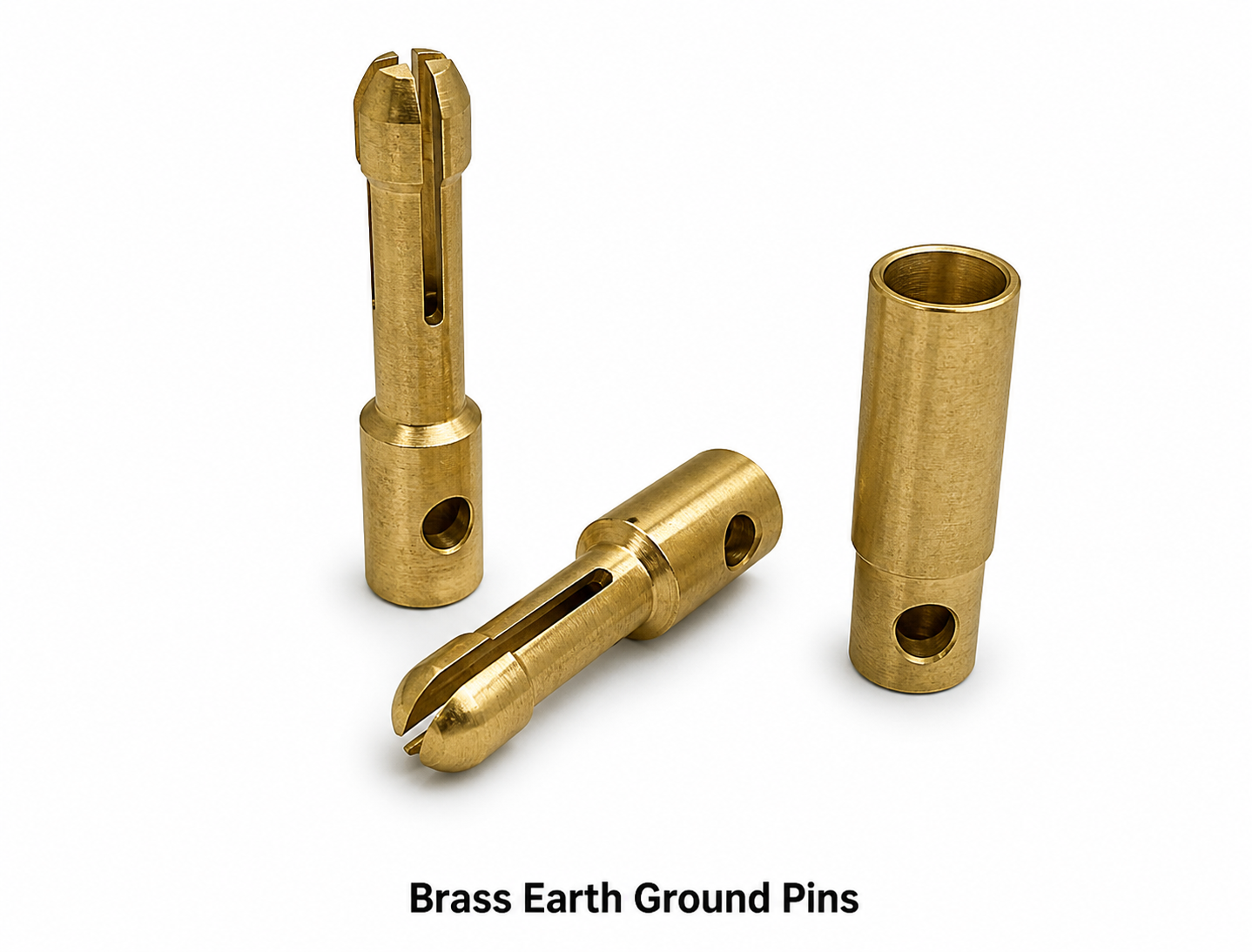

Brass earth ground pins are precision-machined cylindrical contact components used to establish low-resistance electrical grounding paths in panels, switchgear, distribution boards, busbar systems, and industrial enclosures. Manufactured from high-conductivity free-cutting brass alloys such as CW614N, CZ121, and C36000, these grounding pins comply with IS 3043, IEC 60364, and BS 7671 earthing standards. Electrical Accessories India supplies brass earth pins to OEMs, EPC contractors, switchgear manufacturers, and power utilities across India and internationally. Price: US$ 11.50/kg

Product Overview

Design and Construction

Brass earth ground pins are manufactured using CNC precision turning from free-machining brass rods. The pin body is designed for press-fit, thread-in, or solder-type installation into earthing terminals, grounding bars, earth blocks, neutral links, and bonding conductors. Pin geometry is optimized for minimum contact resistance, ensuring reliable equipotential bonding across all phases of panel assembly. Variants include solid round pins, threaded ground pins, hexagonal-shoulder grounding pins, and flat-head earth pins depending on application.

Grounding Pin Application in Switchgear and Panels

Switchgear grounding pin contacts provide the primary protective earth (PE) path in MCB boxes, MCCB enclosures, power distribution units (PDUs), and low-voltage switchboards. Brass earth pins are press-fitted into DIN rail earth terminals, copper earth bars, aluminum neutral bars, and stainless steel enclosure earth points. Related components include earth tags, earth blocks, grounding lugs, grounding clamps, equipotential bonding conductors, and earthing ferrules. All grounding pins are compatible with IEC 61439, IS 8623, and IEEE 80 electrical grounding standards.

Material Grades and Conductivity

The primary material for earth pins is free-cutting brass (CW614N / C36000 / CZ121) offering electrical conductivity of 26–28% IACS and excellent machinability rating above 85. For higher conductivity requirements, copper C101 or bronze C51100 ground pins are available. Material selection depends on operating temperature, corrosive environment, and contact resistance specification. All materials comply with RoHS 2011/65/EU, REACH SVHC, and IEC 60068 environmental standards.

Surface Finishes

Standard surface finishes for brass earth ground pins include natural brass (mill finish), electroless nickel plating (3–10 µm), electrolytic nickel plating (5–15 µm), tin plating (3–8 µm), and silver plating for high-frequency grounding applications. Nickel-plated brass earth pins resist oxidation in humid switchroom environments, salt-fog conditions (tested per IEC 60068-2-11), and industrial atmospheres containing SO₂ and H₂S. Tin-plated ground pins are preferred for low-torque screw terminals and compression-type earthing connectors.

Dimensional Range and Thread Types

Brass grounding pins are available in metric thread sizes M3, M4, M5, M6, M8, M10, and M12, and BSP/NPT thread sizes 1/8″ to 1/2″. Pin body diameters range from 3 mm to 25 mm, with lengths from 10 mm to 120 mm. Pin heads are available in hexagonal, round, flat, and custom-profile geometries. Thread form options include ISO metric fine and coarse pitch, UNC, UNF, and BA threads per customer specification.

Related Grounding Components

Brass earth ground pins are typically assembled alongside Brass Plug Pins, Brass Sockets For Pins, Brass Earth Blocks, Neutral Terminals and Earth Terminals, Brass Earthing Terminals, and Copper Grounding Ferrule Connectors. These components form a complete earthing system within switchgear and distribution panels, ensuring personnel safety and equipment protection per IEC and IS standards.

Key Features

• High conductivity free-cutting brass (CW614N / C36000) for minimal contact resistance
• Precision CNC turned to tight tolerances (±0.01 mm on pin diameter)
• Available with metric, BSP, NPT, and UNC/UNF threads
• Multiple surface finishes: natural brass, nickel, tin, silver plating
• RoHS and REACH compliant materials
• Custom lengths, diameters, and head profiles available
• Tested to IEC 60068 environmental standards
• Compatible with all standard earth terminals, earth bars, and grounding blocks

Electrical Performance

Contact resistance of brass earth pins tested per IEC 60512-2-1 is typically below 5 mΩ at 1A test current. The ground pin sustains short-circuit fault currents in accordance with IEC 60364-5-54 and BS 7671 earthing conductor sizing requirements. Rated current-carrying capacity depends on pin cross-section, contact area, and thermal mass.

Corrosion Resistance

Brass earth pins undergo salt spray testing per IEC 60068-2-11 (NSS 96–500 hours depending on finish). Nickel-plated pins show no base metal corrosion up to 500 hours NSS. Dezincification-resistant DZR brass (CW602N) grades are available for marine, coastal, and high-humidity panel environments.

Mechanical Strength

Thread pull-out strength and torque retention values are measured per ISO 898 and DIN 267 standards. Pin shear strength for solid brass ground pins exceeds 200 N/mm² tensile. Thread engagement depth is designed per VDI 2230 guidelines for fatigue-resistant bolted joints.

Custom Engineering

Electrical Accessories India offers full custom engineering for brass earth ground pins including customer-specified drawings, 2D/3D CAD-based manufacturing, first article inspection (FAI), and PPAP documentation. Prototype quantities from 100 pcs; production quantities from 5,000 pcs. Lead time for standard items: 2–4 weeks; custom items: 4–6 weeks ex-works Jamnagar.

Packaging and Identification

Brass earth ground pins are packed in polybags with anti-tarnish paper, bulk-packed in corrugated cartons or wooden crates for export. Each shipment includes material test certificates (MTC), RoHS declaration, and packing list. Export marking as per buyer’s specification. ISPM-15 compliant wooden packaging for all international shipments.

Technical Specifications

Raw Material Grades

Product Types and Variants

Applications by Industry

Manufacturing Process

Brass earth ground pins are manufactured at our CNC precision turning facility in Jamnagar, Gujarat. The process begins with incoming material inspection of brass rods per EN 12164 (free-cutting brass bars). Rods are cut to billets and fed into Swiss-type CNC turning centers (Citizen, Star) for high-precision turning of pin body, threading, and head profiling. Secondary operations include knurling, cross-drilling, slotting, and deburring. Surface treatment (nickel/tin/silver plating) is performed in our in-house electroplating facility with full process control per ISO 2081 and ASTM B456. Final inspection uses CMM (Coordinate Measuring Machines), thread gauges (GO/NOGO), and digital micrometers. Every batch is covered by a material test certificate (MTC) and dimensional inspection report.

Quality Standards and Certifications

Why Choose Electrical Accessories India

• 35+ years of precision brass parts manufacturing experience from Jamnagar — India’s brass capital
• In-house CNC turning, electroplating, and CMM inspection under one roof
• ISO 9001:2015 certified quality system with full traceability
• Export experience to 40+ countries including USA, UK, Germany, UAE, Australia
• Flexible MOQ — prototype quantities available; competitive pricing at US$ 11.50/kg
• Full documentation: MTC, RoHS, REACH, PPAP, COA on request
• Custom engineering support with 2D/3D CAD, first article inspection, and PPAP

Frequently Asked Questions (FAQ)

Q1. What is the difference between an earth pin and a ground pin?

In electrical engineering, “earth pin” (IEC/BS terminology) and “ground pin” (ANSI/IEEE/NEC terminology) refer to the same protective conductor contact. Both establish the zero-potential reference and fault-current return path in electrical systems.

Q2. What brass alloy is best for earth pins in high-humidity environments?

DZR brass (CW602N / CZ132) is recommended for high-humidity and marine environments as it resists dezincification corrosion. Nickel plating (10–15 µm) provides additional surface protection against salt-fog and H₂S atmospheres.

Q3. What thread size is standard for panel earthing pins?

M6 and M8 are the most common thread sizes for panel earthing pins, complying with IEC 60439 and IS 8623 requirements for earth terminal connections in distribution boards and switchgear.

Q4. Can brass earth pins carry short-circuit fault current?

Yes. The adiabatic equation per IEC 60364-5-54 and BS 7671 Appendix 4 defines minimum conductor cross-section for fault current. Ground pins are designed with sufficient cross-section to carry prospective fault currents without exceeding allowable temperature rise.

Q5. What is the minimum order quantity (MOQ)?

Standard MOQ is 1,000 pieces for catalog sizes; 5,000 pieces for custom items. Sample orders of 50–100 pcs are available for engineering approval at nominal tooling charges.

Q6. Do you supply nickel-plated brass earth pins?

Yes. We supply nickel-plated brass earth pins with electrolytic nickel 5–15 µm, tested to 500 hours NSS per IEC 60068-2-11. Tin-plated and silver-plated options are also available.

Q7. Are your brass earth pins RoHS compliant?

Yes. All our brass alloys comply with RoHS 2011/65/EU Directive (lead content <0.1 wt%) for applicable products. REACH SVHC declarations are available upon request.

Q8. What is the lead time for custom brass earth pins?

Standard catalog items: 2–4 weeks ex-works Jamnagar. Custom items per drawing: 4–6 weeks including first article inspection. Expedited production available for urgent requirements.

Q9. What countries do you export brass earth pins to?

We export to USA, UK, Germany, UAE, Australia, Canada, Singapore, South Africa, Brazil, and 35+ other countries. All shipments include material test certificates and comply with destination country import requirements.

Q10. Can you supply brass earth pins with customer-specific part numbers and packaging?

Yes. We offer OEM packaging, custom labeling, part number marking, and white-label supply for distributors and OEM manufacturers. Contact our sales team for private-label pricing.
