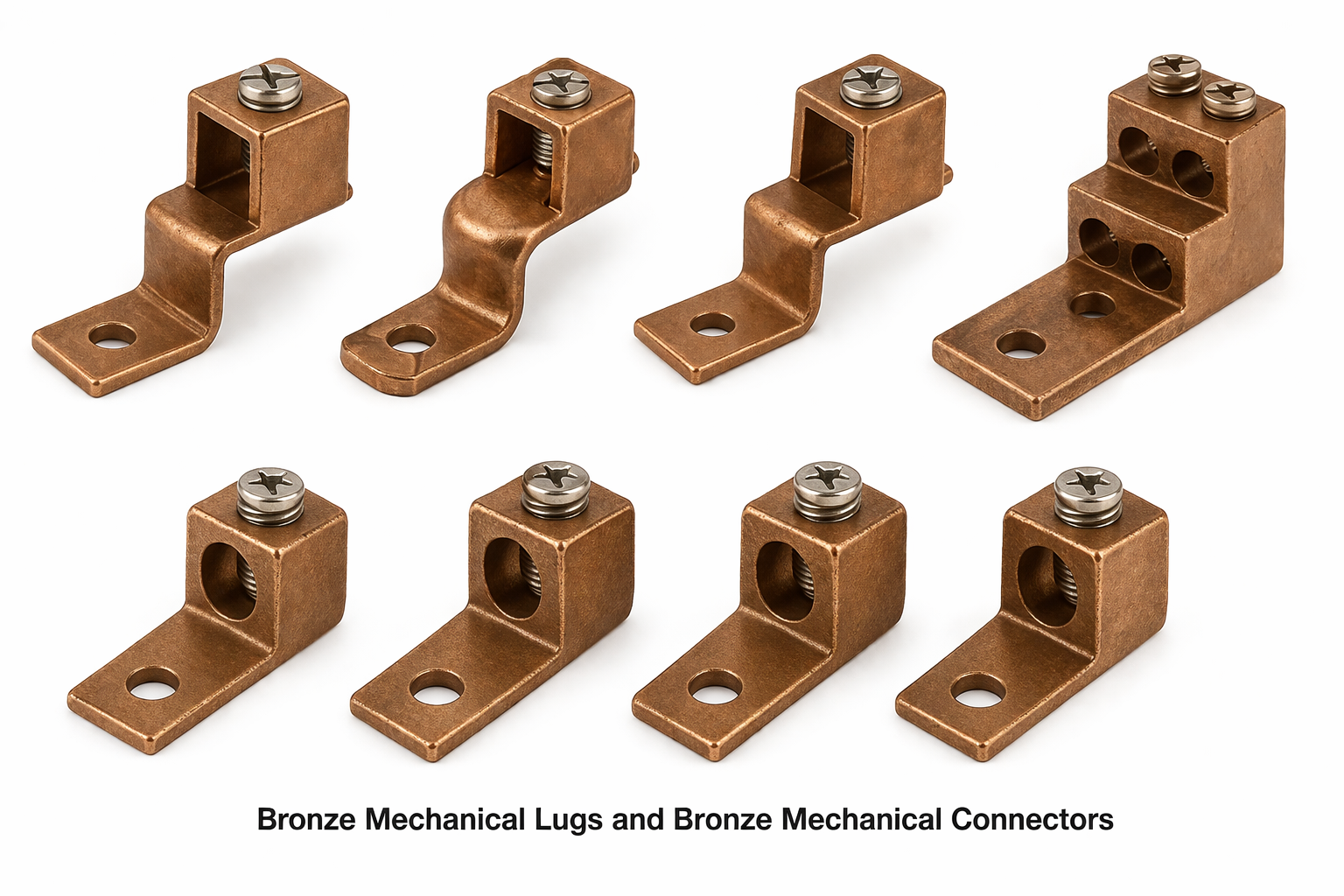

Bronze Mechanical Lugs and Bronze Mechanical Connectors

Bronze Mechanical Lugs and Bronze Mechanical Connectors

Electrical Accessories India manufactures and exports bronze mechanical lugs, bronze mechanical connectors, bronze cable lugs, bronze compression-free terminal connectors, and bronze bolted cable connectors from our ISO-compliant facility in Jamnagar, Gujarat, India. Produced from C95400 (Aluminum Bronze), C83600 (Leaded Red Bronze), and C90500 (Gun Metal / Tin Bronze) by hot forging and precision CNC machining, these connectors deliver reliable, maintenance-friendly cable terminations for MV and LV power systems, substation earthing networks, transformer connections, and industrial switchgear. Electrical Accessories India supplies electrical OEMs, EPC contractors, power utilities, panel builders, and electrical distributors in over 30 countries.

Product Overview – Bronze Mechanical Lugs and Bronze Mechanical Connectors

What Are Bronze Mechanical Lugs?

A bronze mechanical lug — also referred to as a bronze mechanical cable lug, bronze bolted lug connector, bronze set-screw lug, bronze compression-free lug, bronze cable terminal, bronze conductor lug, or bronze cable end connector — is a non-crimping cable termination device that secures a conductor within the barrel using one or more clamping bolts or set screws. Unlike compression lugs that require hydraulic tooling, mechanical lugs are installed using only a torque wrench, making them the preferred choice for field terminations in substations, industrial switchgear, and site-erected panel assemblies where crimping tools may not be available or practical. Bronze is the material of choice in corrosive, coastal, and high-humidity environments due to its superior resistance to oxidation and galvanic compatibility with copper conductors.

Bronze Mechanical Connector Types and Configurations

Bronze mechanical connectors include a broad range of bronze bolted connectors, bronze set-screw connectors, bronze clamp-type connectors, bronze split-bolt connectors, bronze H-tap connectors, bronze parallel groove connectors, bronze tap connectors, and bronze straight splice connectors. These devices are used to join, tap, or terminate copper and aluminium conductors in overhead distribution, underground cabling, busbar systems, transformer secondary connections, and grounding grid installations. The mechanical clamping design accommodates a wide conductor size range in a single connector body, eliminating the need for size-specific tooling.

Bronze Mechanical Lugs for Cable Termination

Bronze mechanical cable lugs for MV and LV systems terminate cables in the range of 10 mm² to 630 mm² and beyond. The bronze lug barrel accepts stranded or solid copper conductors; the bronze tongue (palm) connects to bus bars, switchgear terminals, transformer bushings, or earthing bars via bolted connection. Standard tongue configurations include flat palm lug, offset palm lug, two-hole lug, three-hole lug, 90-degree angled lug, and long barrel lug. Bolt hole diameters range from M8 to M24 to match switchgear terminal pad dimensions per IEC 61439-1.

Bronze Split-Bolt and H-Tap Connectors

Bronze split-bolt connectors — also called bronze knife tap connectors, bronze running tap connectors, or bronze twin-bolt connectors — are used to tap a branch conductor from a main run without cutting the main. They are widely used in transformer secondary connections, service entrance wiring, and grounding conductor taps. The bronze H-tap connector (also known as bronze H-frame connector, bronze C-tap connector, or bronze wedge tap) creates a permanent parallel tap using a single bolt, suited to both main-to-tap and tap-to-tap applications.

Bronze Parallel Groove and Multi-Tap Connectors

Bronze parallel groove (PG) connectors, bronze compression-style parallel connectors, bronze multi-port tap connectors, and bronze four-way cable connectors allow multiple conductors to be connected at a single point without crimping. These are used extensively at transformer secondary terminals, earthing bus points, panel board tap connections, and overhead distribution transformer bays. The multi-bolt design ensures progressive, uniform clamping across the full conductor cross-section.

Mechanical Lugs for Grounding and Earthing Systems

In grounding and earthing systems, bronze mechanical grounding lugs, bronze earth cable terminals, bronze ground connector lugs, bronze bolted earth connectors, and bronze earth bar lugs provide tool-free installation and reliable long-term contact. Bronze alloys resist the soil chemistry and moisture exposure typical of buried or surface-mounted grounding systems. C95400 and C83600 bronze lugs are compatible with copper tape, bare stranded copper cable, and copper earth rods used in IS 3043 and IEEE 80 compliant grounding installations.

Bi-Metallic Bronze Mechanical Lugs

Where aluminium conductors must connect to copper bus bars or bronze terminals, bi-metallic bronze mechanical lugs — also referred to as aluminium-to-copper transition lugs, bimetallic mechanical cable lugs, or AL-CU bronze connectors — prevent galvanic corrosion at the conductor-to-lug interface. The conductor barrel is manufactured from aluminium or friction-welded aluminium-copper billet, while the tongue (palm) remains bronze for superior contact at the terminal. Filled with anti-oxidant compound before dispatch.

Custom Bronze Mechanical Lug Configurations

Electrical Accessories India manufactures custom bronze mechanical lugs to customer drawing, including extended barrel lugs, pin-type bronze lugs, ring-type bronze cable terminals, flag-type bronze lugs, submarine cable bronze lugs, and screened cable bronze earth lugs. CNC machining capability allows tight dimensional tolerances (±0.05 mm) and custom thread forms for OEM requirements.

Key Features

• Tool-free installation using standard torque wrench — no hydraulic crimping tool required
• Wide conductor size range in a single connector body: 10 mm² to 630 mm²
• Bronze alloy body: C95400 / C83600 / C90500 — superior corrosion and oxidation resistance
• Stainless steel A4-80 clamping bolts as standard — no differential corrosion at fastener
• Full compatibility with copper conductors; bi-metallic variants available for aluminium conductors
• Hot-forged barrel and tongue for superior grain structure and mechanical strength
• Tin-plated or nickel-plated variants available for coastal, saline, and high-humidity environments
• Compliant with IEC 61238-1, IS 3043:2018, IEEE 837, BS 7430

Corrosion and Environmental Performance

Bronze mechanical lugs from C95400 and C83600 alloys demonstrate outstanding corrosion resistance in outdoor substation environments, coastal locations, chemical plants, and below-grade grounding installations. Unlike tinned copper lugs that rely on the plating layer for corrosion protection, bronze lugs are corrosion-resistant throughout the connector body — ensuring decades of reliable service even if surface finish is scratched or worn during installation. Salt spray resistance exceeds 500 hours per ASTM B117 for standard bronze alloy bodies.

Contact Resistance and Electrical Performance

Machined flat contact faces on the lug tongue ensure low, stable contact resistance at switchgear terminals and bus bars. Contact resistance values for bronze mechanical lugs are ≤15 µΩ when torqued to manufacturer specification — meeting IEC 61238-1 Class A performance requirements. The bronze barrel’s grip geometry (serrated or knurled inner bore options) prevents conductor pull-out under vibration and thermal cycling.

Mechanical Strength and Clamping Force

Hot-forged bronze construction provides tensile strength of 241–586 MPa depending on alloy (C83600 to C95400). The multi-bolt clamping system distributes clamping force uniformly across the conductor cross-section, preventing strand damage while ensuring full electrical contact. Pull-out force on a 240 mm² conductor exceeds 8 kN — meeting the requirements of IEC 61238-1 for Class A connectors. Thread engagement depth and bolt torque specifications are provided for each connector size.

Temperature and Fault Current Rating

Bronze mechanical lugs are rated for continuous operation from −40°C to +120°C. Short-circuit current ratings are calculated per IEC 60949 adiabatic equation for the bronze cross-section — standard configurations support fault currents from 10 kA (small lugs) to 50 kA (large grounding lugs) for 1-second duration. Custom cross-sections for higher fault current ratings available on request.

Ease of Inspection and Maintenance

The bolted mechanical design allows visual inspection of clamping bolt torque at any maintenance interval — unlike compression connections that cannot be visually verified after installation. Re-torquing is possible at transformer or switchgear maintenance shutdowns. The bronze body does not cold-weld to copper conductors, allowing removal and re-termination without connector replacement in most cases.

Dimensional Compatibility with IEC and ANSI Standards

Bronze mechanical lug tongue dimensions are matched to IEC 61439-1 and ANSI/NEMA CC1 terminal pad hole patterns, including standard hole spacing for single-hole, two-hole, and NEMA four-hole configurations. Stud bolt dimensions comply with IEC metric or ANSI inch standards as specified. Custom tongue drilling is available for OEM terminal pad layouts.

Technical Specifications

Bronze Alloy Grades and International Equivalents

Product Types and Variants

Bronze mechanical lugs and connectors from Electrical Accessories India include: Single-bolt bronze mechanical lug (10–95 mm² conductor range); Two-bolt bronze mechanical lug (70–240 mm² conductor range); Three-bolt bronze heavy-duty lug (185–630 mm² conductor range); Bronze split-bolt connector (main 35–500 mm² / tap 6–240 mm²); Bronze H-tap / C-tap connector (main 35–500 mm² / tap 10–150 mm²); Bronze parallel groove connector – two-bolt and three-bolt configurations; Bronze multi-tap connector – four-port and six-port configurations; Bi-metallic AL-CU bronze mechanical lug (aluminium conductor / bronze tongue); Bronze pin-type (spade) lug for round stud terminals; Bronze flag lug (90° angled tongue) for restricted-space panel terminations; Bronze earth bar lug (flat, drilled, for copper earth bus); Custom bronze mechanical connectors to customer drawing.

Applications in Industry

Manufacturing Process

1. Material Receipt and Verification: Bronze bar or billet stock (C95400, C83600, C90500) received with mill test reports (MTR); composition verified by in-house XRF analysis against ASTM B505 / ASTM B271 limits before release to production.
2. Billet Preparation: Bar stock sawn to weight-controlled billets; scale and oxide removed by shot blasting. Billet weight controlled to ±2% to minimise forging flash.
3. Hot Forging: Billets induction-heated to 750–850°C and closed-die drop-forged on mechanical presses to net-shape blanks. Forging refines grain structure and eliminates casting porosity, providing 25–40% superior tensile strength vs. sand-cast equivalents.
4. Trimming and Annealing: Flash trimmed on trimming press; forgings stress-relieved at 350–450°C, air cooled; hardness verified (60–100 HRB target range).
5. CNC Machining: Multi-axis CNC turning and milling of conductor barrel bore, palm tongue, mounting hole drilling, and thread tapping to ±0.05 mm tolerances. Barrel bore diameter matched to conductor OD per IEC 61238-1 sizing tables.
6. Surface Finishing: Deburring, edge breaking, surface cleaning. Electrolytic tin plating (5–25 µm) or nickel plating (3–8 µm) for specified variants. Anti-oxidant grease applied to conductor barrel bore before dispatch.
7. Assembly: A4-80 stainless steel clamping bolts, spring washers, and flat washers assembled and torque-stripe marked. Shear-head clamping bolts fitted where specified.
8. Inspection and Testing: Contact resistance per IEC 61238-1; conductor pull-out force; dimensional report; visual inspection per AQL 1.5 sampling plan. First article inspection report (FAIR) available.
9. Packing and Export: Individual labelling with part number, conductor size range, and torque value. Export carton with moisture barrier and product data sheet; EN 10204 2.2 MTRs in shipment documentation.

Quality Standards and Certifications

IEC 61238-1 — Compression and mechanical connectors for power cables up to 30 kV (Class A performance); IS 3043:2018 — Code of Practice for Earthing (Bureau of Indian Standards); IEEE 837 — Standard for Qualifying Permanent Connections Used in Substation Grounding; BS 7430 — Code of Practice for Protective Earthing of Electrical Installations; IEC 61439-1 — Low-voltage switchgear and controlgear assemblies (terminal provisions); ASTM B505 / ASTM B271 — Copper alloy castings (raw material standard); ISO 9001:2015 — Quality Management System (manufacturing facility); RoHS 2011/65/EU — Lead-free alloy variants (C95400, C90500) available on request.

Why Choose Electrical Accessories India

Electrical Accessories India has 30+ years of manufacturing experience in bronze and copper electrical connectors from Jamnagar, the global hub of non-ferrous metal component manufacturing. Our in-house hot forging and CNC machining capability gives direct control over alloy quality, dimensional accuracy, and lead times. We supply bronze mechanical lugs and connectors to switchgear OEMs, transformer manufacturers, EPC contractors, and electrical distributors across 30+ countries with full documentation including EN 10204 MTRs, dimensional inspection reports, and RoHS declarations. Custom configurations are available from drawing in 3–5 weeks for sample quantities, with competitive pricing for production volumes.

Frequently Asked Questions

What is a bronze mechanical lug?

A bronze mechanical lug is a cable termination device that clamps the conductor in a barrel using clamping bolts or set screws rather than hydraulic compression. It requires only a torque wrench for installation and is manufactured from bronze for superior corrosion resistance in harsh environments.

What is the difference between a bronze mechanical lug and a compression lug?

A mechanical lug uses bolt clamping and requires no special tooling — installation is by torque wrench. A compression lug uses hydraulic or hand crimping tools to form a permanent connection. Mechanical lugs are preferred for field terminations and maintenance-accessible installations; compression lugs offer a more compact profile and are preferred for factory-assembled switchgear.

Which bronze alloy is used for mechanical lugs?

The most common alloys are C95400 (Aluminum Bronze), used for maximum strength and corrosion resistance, and C83600 (Leaded Red Bronze), used where machinability and moderate strength are required. C90500 (Gun Metal) is used where both corrosion resistance and good pressure tightness are needed. Alloy selection is guided by the environmental exposure and mechanical requirements of the application.

What conductor sizes are available?

Standard bronze mechanical lugs are available from 10 mm² to 630 mm² for copper conductors and from 16 mm² to 630 mm² for aluminium conductors (bi-metallic variants). Custom barrel configurations for larger conductor sizes are available on request.

Are bronze mechanical lugs compatible with aluminium conductors?

Standard bronze lugs are compatible with copper conductors. For aluminium conductors, bi-metallic versions with an aluminium barrel and bronze tongue are required to prevent galvanic corrosion at the conductor-to-lug interface. These bi-metallic lugs are available with anti-oxidant compound pre-filled.

What is the applicable standard for bronze mechanical connectors?

The primary standard is IEC 61238-1 (Compression and mechanical connectors for power cables up to 30 kV). Additional relevant standards include IS 3043:2018, IEEE 837, BS 7430, and IEC 61439-1 for switchgear terminal compliance.

What surface finishes are available?

Standard finish is natural bronze. Electrolytic tin plating (5–25 µm per ASTM B545) and bright nickel plating (3–8 µm per ASTM B689) are available for high-humidity, coastal, or saline environments. Passivation treatment is available for RoHS-compliant grades.

What is the lead time for bronze mechanical lugs?

For standard configurations in stock alloys: 2–4 weeks for sample quantities; 4–8 weeks for production quantities. For new custom configurations requiring tooling: 6–10 weeks from drawing approval. Urgent orders for standard sizes can be accommodated at shorter lead times — contact us with your requirement.

What is the indicative pricing?

Bronze Items: US$ 13.90 per kilogram, CIF US Port. Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.

Can bronze mechanical lugs be re-used after removal?

In most cases, bronze mechanical lugs can be re-used after conductor removal, provided the barrel bore, clamping bolt threads, and tongue are undamaged. The clamping bolts (A4-80 stainless steel) should be inspected and replaced if deformed. Anti-oxidant compound should be re-applied to the barrel before re-use.

Multilingual Equivalent Terms

Related Products and Linked Terms

Bronze Transformer Ground Connectors; Hotline Clamps of Bronze; Transformer Spade Connectors of Bronze; Bronze Wise Connectors; Bronze Transformer Tank Connectors; Bronze Grounding Clamps; Copper Lugs; Brass and Copper Connectors

Request a Quote

Submit your conductor size, connector type, alloy grade, quantity, and delivery requirement and Electrical Accessories India will provide a technical and commercial offer within one business day. We export to 30+ countries with full shipping documentation, EN 10204 MTRs, and RoHS declarations.

Bronze Items: US$ 13.90 per kilogram, CIF US Port. Prices are indicative and subject to change based on quantity, specification, and alloy grade. Contact us with your RFQ for a firm quotation.
