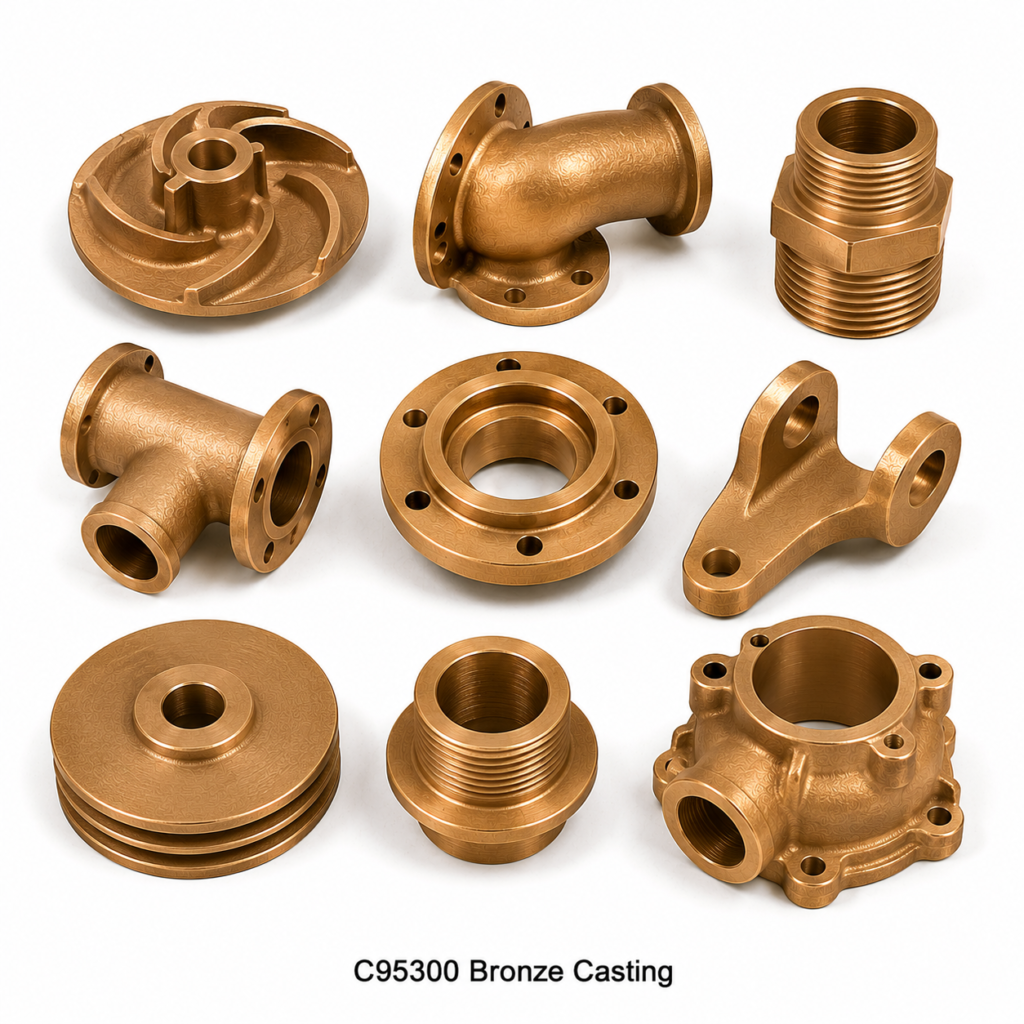

C95300 Bronze Casting
C95300 Bronze Casting – CDA 953 | Low Iron Aluminum Bronze | IS 318 Gr.5 | UNS C95300
C95300 (UNS C95300, CDA 953, IS 318 Gr.5) is a low-iron aluminum bronze casting alloy containing 9.0–11.0% aluminium and only 0.8–1.5% iron, making it softer and more machinable than the higher-iron AB1 and AB2 grades while still retaining the excellent corrosion resistance characteristic of the aluminum bronze family. The reduced iron content results in a predominantly alpha microstructure at lower aluminium levels, transitioning to alpha-beta at the upper aluminium range, giving C95300 a wider range of achievable mechanical properties depending on melt chemistry control. Electrical Accessories India manufactures C95300 castings as an economical alternative for applications where the full strength of AB2 is not required but corrosion resistance must exceed that of standard leaded tin bronzes.
Product Overview
Chemical Composition – C95300
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | Balance | — |
| Aluminium (Al) | 9.0 | 11.0 |
| Iron (Fe) | 0.8 | 1.5 |
| Nickel (Ni) | — | 0.5 |
| Manganese (Mn) | — | 0.5 |
| Lead (Pb) | — | 0.05 |
Mechanical Properties – C95300 (Per ASTM B148)
| Property | Value |
|---|---|
| Tensile Strength | 480 MPa (69,700 psi) min |
| 0.2% Yield Strength | 170 MPa (24,700 psi) min |
| Elongation in 2″ | 18% min |
| Brinell Hardness | 100–140 HB |
| Density | 7.6 g/cm³ |
| Thermal Conductivity | 62 W/m·K |
| Electrical Conductivity | 13–15% IACS |
| Max. Service Temperature | 280°C |
| Machinability Rating | 35% (free-cutting brass = 100%) |
International Equivalents – C95300
| Standard | Designation |
|---|---|
| USA (ASTM/UNS) | C95300 / UNS C95300 / CDA 953 |
| India (IS) | IS 318 Gr.5 |
| UK (BS) | BS 1400 LG2 (approximate equivalent) |
Applications
C95300 is selected for medium-duty applications where machinability, corrosion resistance, and moderate strength are the primary requirements. Typical applications include pump casing bodies for freshwater and moderately aggressive service, valve bodies for industrial water and compressed air systems, bearing housings for light-duty machinery, electrical connector housings, earthing hardware castings, and marine deck fittings in freshwater or brackish water environments. The higher machinability compared to AB2 and NAB grades makes C95300 economically attractive for high-volume machined casting orders where tight tolerances and short cycle times are required.
Pricing and Supply
C95300 Low Iron Aluminum Bronze Casting: US$ 16.80 per kilogram, CIF US/EU Port. Prices are indicative and subject to revision based on order quantity and specification. Submit your RFQ for a firm quotation within 24 hours.
