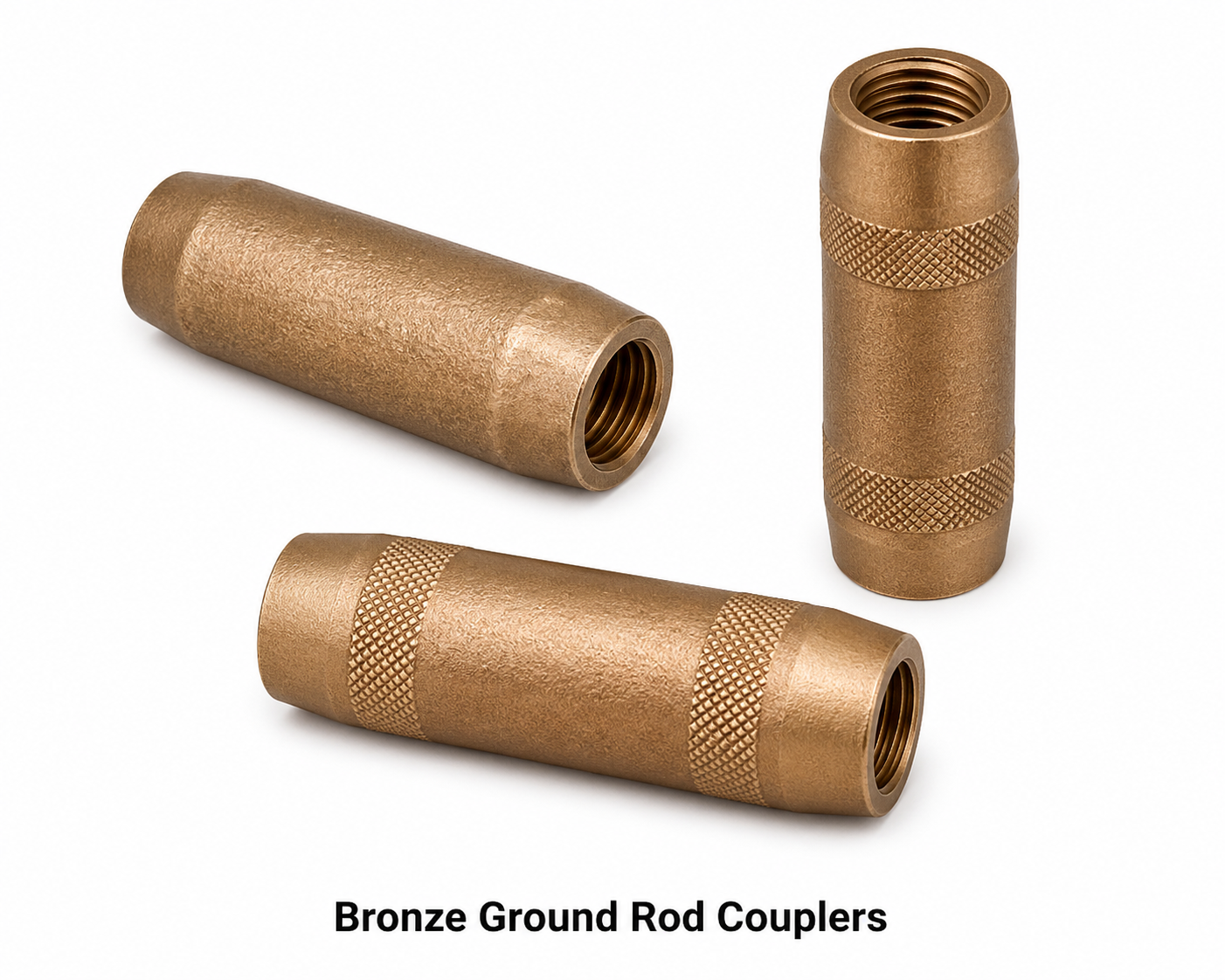

Bronze Ground Rod Couplers

Bronze Ground Rod Couplers

Bronze ground rod couplers — also called earth rod couplers or earth rod connectors — are female-threaded sleeve fittings used to mechanically join two copper-bonded earth rods end-to-end, enabling deeper driven grounding systems. Manufactured from leaded brass, silicon bronze, or gunmetal LG2 by Electrical Accessories India (Jamnagar), these couplers are compatible with standard 5/8-inch (16 mm) and 3/4-inch (19 mm) threaded earth rods conforming to IS 3043, BS 7430, IEC 62561-2, and IEEE Std 80. They are used in substation earthing grids, tower earthing, telecom BTS grounding, and industrial earthing systems worldwide.

Product Overview

Function and Role in Earthing Systems

Earth rod couplers serve as threaded female connectors between two sections of a ground rod assembly, allowing installers to drive rods to the required depth in stages — particularly in rocky or high-resistivity soils where long single rods cannot be driven. The coupler threads onto the male-threaded end of the lower rod, and the upper rod screws in from the top. Internal thread form is matched precisely to the rod thread to ensure a low-resistance, mechanically rigid joint. The joint does not introduce measurable impedance when correctly torqued, preserving the electrical continuity of the earthing electrode. Related terms: earth rod extension coupler, ground rod splice coupling, threaded rod connector, driving coupler, sectional earth rod coupling.

Material Selection and Corrosion Resistance

Couplers are produced in leaded brass (CW614N / IS 319 Grade 1), silicon bronze (C65100/C65500), or gunmetal LG2 (CC491K / IS 318). Silicon bronze and gunmetal variants offer superior corrosion resistance in aggressive soils — acidic, saline, or high-moisture environments — where brass may suffer dezincification. For coastal, marine, or chemical-plant earthing, silicon bronze or LG2 gunmetal couplers are the recommended specification. All materials are non-sparking, making them suitable for hazardous area (ATEX Zone 1/2) installations. Relevant standards: IS 319, IS 318, ASTM B98, BS EN 12163, ASTM B584.

Thread Compatibility and Rod Standards

Earth rod couplers are produced in standard thread configurations to match the world’s most common ground rod specifications. The internal thread is precision-cut to BSW (British Standard Whitworth), UNC (Unified National Coarse), or metric coarse standards. Common rod-to-coupler pairings: 5/8″-11 UNC for North American rods (IEEE Std 80 / NEC Article 250), 5/8″ BSW for BS 7430 rods, and M16 or M20 metric for European DIN/IEC rods. Thread form is inspected using Go/No-Go gauges to ASME B1.1 or BS 84 standards. Proper thread engagement depth (minimum 1.5× diameter) is maintained for mechanical pull-out strength exceeding 5 kN.

Driving Head and Coupler Variants

Beyond the standard mid-coupler for rod-to-rod joining, Electrical Accessories India also supplies driving-head couplers (cross-hole type) that accept a driving pin for hammer driving the rod assembly into soil. Threaded driving caps are available to protect rod threads during driving. The product range includes: standard female-female couplers, driving-head couplers with cross-hole, reducer couplers (5/8″ to 3/4″), stainless steel option for extreme environments, and galvanized mild steel couplers for temporary earthing. All bronze and brass variants are free of magnetic properties, important for substation control room environments.

Dimensional and Tolerancing Standards

Coupler body length is matched to provide a minimum 1.5× rod diameter engagement on each side. Wall thickness is calculated to withstand the rated driving torque and pull-out force for the rod cross-section. Outer hexagonal flats (across flats: 22 mm to 32 mm) allow wrench-tightening. Surface finish is typically natural as-machined or electrolytic tin-plated for added protection. Dimensional conformance is checked per IS 5529 (earthing system hardware) and IEC 62561-2 (requirements for earth rods). Tolerance on thread pitch diameter: per IS 4218 or ASME B1.1 Class 2B.

Electrical Continuity at Joints

The coupler joint introduces no measurable contact resistance when threads are fully engaged and torqued. Electrical continuity tests (DC milliohm measurement) are performed on sample couplers per IEC 62561 test protocols. The joint resistance typically measures below 0.001 Ω, negligible compared to earth rod electrode-to-soil resistance. For additional protection against galvanic corrosion at the joint, copper-based anti-seize compound is recommended per IEEE Std 80 Section 11. Related test methods: BS EN 62561-2, IS 5529 Part 1.

Key Features

• Female-threaded sleeve design for rod-to-rod coupling in sectional earthing systems
• Available in leaded brass (CW614N), silicon bronze (C65100/C65500), and gunmetal LG2 (CC491K)
• Thread options: 5/8″-11 UNC, 5/8″ BSW, M16, M20 — compatible with IS 3043, BS 7430, IEEE Std 80 rods
• Reducer couplers available: 5/8″ to 3/4″ for mixing rod diameters
• Driving-head coupler variant with cross-hole for mechanical rod driving
• Hex wrench flats (AF 22 mm to 32 mm) for torque installation
• Corrosion-resistant: suitable for acidic, saline, and high-moisture soils
• Non-sparking material — suitable for ATEX Zone 1/2 hazardous area installations
• Contact resistance: typically <0.001 Ω when fully engaged
• Dimensional conformance: IS 5529, IEC 62561-2, BS 7430

Material Grades and International Equivalents

Technical Specifications

Product Types and Variants

• Standard Female-Female Coupler: Same thread size both ends, for standard rod extension
• Reducer Coupler: 5/8″ one end, 3/4″ other end — for mixed rod diameter systems
• Driving-Head Coupler: Cross-hole allows driving bar/pin insertion during mechanical driving
• Driving Cap: Protects rod thread during driving, discarded after installation
• Stainless Steel Coupler (SS316): For highly aggressive or marine environments
• Galvanised Mild Steel: Low-cost option for temporary earthing applications

Applications in Industry

• Power Substations: Extending earth rods in high-resistivity soil to reach target earth resistance (<1 Ω)
• Transmission Towers: Tower footing earthing with deep-driven sectional rods
• Telecom BTS / Data Centres: Driven earthing electrodes for sensitive electronic equipment protection
• Industrial Plants: Earthing of HV/MV equipment, transformers, cable trays in chemical and petrochemical facilities
• Solar Farms / Wind Farms: Renewable energy plant grounding networks requiring deep electrodes
• Railway Earthing: Overhead line equipment (OLE) and track earthing systems
• Hazardous Areas (ATEX): Non-sparking bronze couplers for Zone 1/2 earthing in oil, gas, and mining
• Lightning Protection: Down conductor earth termination assemblies per IEC 62305-3

Manufacturing Process

1. Material Procurement: Round bar stock in brass CW614N, silicon bronze C65100, or gunmetal LG2 — certified to IS/ASTM/BS EN with mill test certificates (MTCs)
2. Sawing: Bar stock cut to coupler blank lengths on CNC circular saws
3. Turning: CNC lathe machining of OD profile, hex flat milling on CNC machining centres
4. Internal Threading: CNC thread milling or tapping to ASME B1.1, BS 84, or ISO 965 thread standards
5. Thread Gauging: 100% inspection with calibrated Go/No-Go thread plug gauges
6. Surface Finishing: Deburring, barrel tumbling for smooth finish; tin plating where specified
7. Dimensional Inspection: CMM or vernier-based dimensional check per IS 5529 / IEC 62561-2
8. Pull-out and Torque Testing: Sample batch testing of mechanical strength
9. Packing: Polyethylene bag + carton with thread protection caps

Quality Standards and Certifications

• IS 3043 – Code of Practice for Earthing (India)
• BS 7430 – Code of Practice for Protective Earthing (UK)
• IEC 62561-2 – Requirements for Earth Rods (international)
• IEEE Std 80 – Guide for Safety in AC Substation Grounding (USA)
• IS 5529 – Earthing System Hardware
• ASME B1.1 / BS 84 – Thread Standards
• ISO 9001:2015 – Quality Management System
• RoHS Compliant – Lead content within permissible limits for industrial applications

Why Choose Electrical Accessories India

• 30+ years manufacturing non-ferrous earthing hardware in Jamnagar, India
• In-house CNC turning, thread milling, and Go/No-Go thread gauging — no outsourced threading
• All 3 material variants (brass, silicon bronze, LG2 gunmetal) stocked and available
• Coupler-rod compatibility matched and tested with our own copper-bonded earth rod range
• Export to 30+ countries: UK, USA, UAE, Australia, South Africa, Nigeria, Singapore, Malaysia
• Full documentation: MTCs, test reports, dimensional certificates, REACH/RoHS declarations
• Custom thread forms and body lengths machined to customer drawing within 2–3 weeks
• Minimum order quantities flexible for project-specific requirements

Frequently Asked Questions (FAQ)

What is a ground rod coupler used for?

A ground rod coupler (earth rod coupler) is a female-threaded sleeve that joins two sections of a copper-bonded earth rod end-to-end, allowing installers to drive rods deeper into the soil in stages. This is essential where a single rod cannot reach the required soil depth for low earth resistance.

What thread size is standard for 5/8″ earth rod couplers?

The standard thread for 5/8″ (16 mm) copper-bonded earth rods is 5/8″-11 UNC (Unified National Coarse) per North American standards (IEEE Std 80 / NEC), and 5/8″ BSW (British Standard Whitworth) for UK/IS rods (BS 7430 / IS 3043). Always confirm the rod thread standard before ordering couplers.

What is the difference between brass and silicon bronze earth rod couplers?

Leaded brass (CW614N) couplers are standard for most inland earthing installations. Silicon bronze (C65100/C65500) offers superior resistance to dezincification and stress-corrosion cracking, making it the preferred choice for coastal, acidic-soil, or chemically aggressive environments. Silicon bronze also has higher tensile strength.

Can couplers be used with stainless steel earth rods?

Yes. Bronze and brass couplers are compatible with stainless steel earth rods. However, an anti-seize compound should be applied to prevent thread galling between dissimilar metals. For extreme corrosion environments, SS316 couplers are also available.

What pull-out strength do your couplers provide?

Our standard bronze couplers provide a minimum pull-out (tensile) strength of ≥5 kN per IEC 62561-2 requirements, with typical values of 8–12 kN depending on thread engagement and material. Exact test data is available upon request.

How many couplers are needed per earth rod set?

One coupler is required per rod joint. A typical installation driving 4 × 1.2 m rods to 4.8 m depth requires 3 couplers and 1 driving cap (to protect the top thread during driving).

Are your couplers compatible with other manufacturers’ earth rods?

Yes, provided the thread form and rod diameter match. Our 5/8″-11 UNC couplers are compatible with rods from Erico, Galmar, Furse, Raychem/nVent, and other major brands. Please confirm thread form before ordering.

Do you supply driving caps and driving heads separately?

Yes. We supply driving caps (to protect rod threads during SDS/rotary hammer driving) and driving-head couplers with cross-holes for pin-driving. Both are available in brass and bronze.

What documentation is provided with the couplers?

We provide Material Test Certificates (MTCs), dimensional inspection reports, thread gauge calibration certificates, and RoHS/REACH declarations. For project-specific requirements, IEC 62561-2 type test reports can be provided.

What is the minimum order quantity?

MOQ is typically 50 pieces per size/material combination for standard items. For custom thread forms or special materials, MOQ and lead time will be confirmed against specific inquiry.

Equivalent Terms – Multilingual Reference

Related Products and Linked Terms

• Copper Bonded Earth Rods
• Bronze Ground Rod Clamps
• Bronze Grounding Pipe Clamps
• Bronze Copper Grounding Clamps
• Bronze Transformer Ground Connectors
• Aluminum Bronze Casting
• Silicon Bronze Castings
• Hotline Clamps of Bronze
• Brass A Clamps
• Brass Earth Blocks

Request a Quote

Specify rod diameter, thread standard (UNC / BSW / Metric), material preference (brass / silicon bronze / LG2 gunmetal), quantity, and any special requirements (custom length, tin plating, IEC 62561-2 test reports). Our engineering team will respond within 24 business hours with pricing, lead time, and technical data sheets.

Contact us: Send your RFQ with quantity, thread specification, and delivery requirement. We export to 30+ countries with full shipping documentation including Certificate of Origin, Packing List, and Material Test Reports.

Indicative Pricing

Bronze Items: US$ 13.90 per kilogram, CIF US Port

Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.
