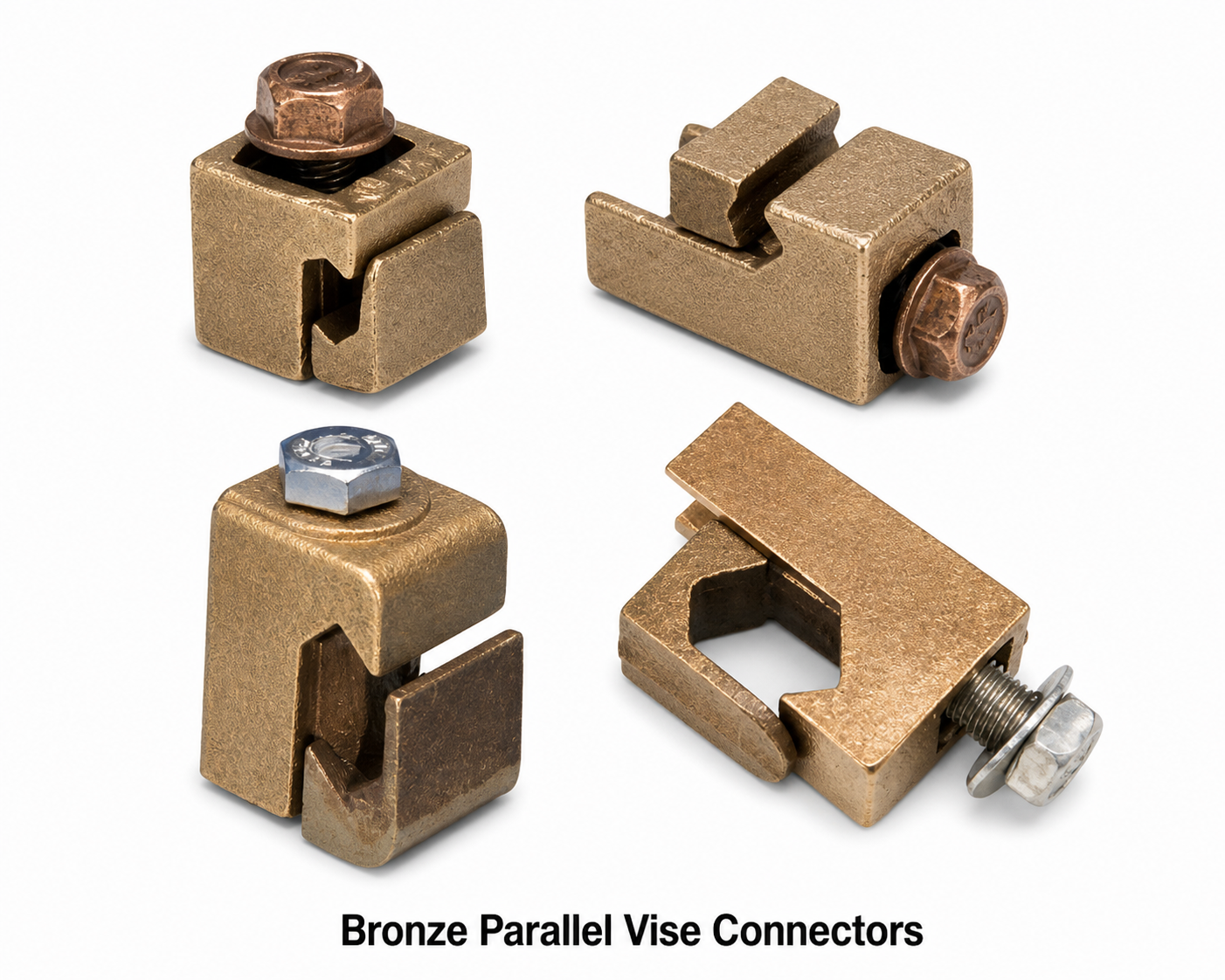

Bronze Parallel Vise Connectors
Bronze Parallel Vise Connectors – Silicon Bronze EAI-BPVC Series | Electrical Accessories India
Bronze Parallel Vise Connectors (EAI-BPVC Series) are high-strength silicon bronze parallel groove connectors engineered for reliable mechanical and electrical bonding of copper conductors across utility, industrial, and OEM applications. Manufactured from C955 silicon bronze alloy, these parallel tap connectors feature an interlocking vise mechanism that resists vibration loosening, while an integrated spacer provides expanded contact area for reduced joint resistance. Designed to accept overlapping conductor size ranges, the EAI-BPVC series minimizes inventory complexity while maintaining compliance with ASTM and ANSI electrical connector standards. Electrical Accessories India supplies these connectors to electrical OEMs, EPC contractors, power distribution utilities, and authorized distributors globally, with manufacturing based in Jamnagar, India.
Indicative Pricing
Bronze Items: US$ 13.90 per kilogram, CIF US Port
Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.
Product Overview
Silicon Bronze Alloy Construction
Bronze Parallel Vise Connectors are cast from high-strength silicon bronze (C651/C655 or equivalent C955 copper alloy), delivering superior tensile strength, corrosion resistance, and electrical conductivity. The silicon bronze matrix provides higher mechanical strength than standard brass connectors while maintaining the galvanic compatibility required in mixed-metal grounding systems. These alloys resist atmospheric corrosion, salt spray, and industrial chemical exposure, making them suitable for outdoor substations, coastal installations, and underground grounding networks. The material’s inherent anti-galling properties ensure consistent clamping force across the service life of the connection, reducing maintenance cycles and field replacement frequency.
Interlocking Vise Mechanism
The defining mechanical feature of the EAI-BPVC series is the interlocking parallel vise body that resists vibration-induced loosening without additional locking hardware. The vise jaws engage conductors on opposing sides simultaneously, distributing clamping stress uniformly across the conductor cross-section. This dual-clamping action eliminates point-loading that can deform soft conductors such as annealed copper or ACSR aluminum cables. The 9/16-inch hex bolt head, combined with 5/16-inch or 3/8-inch bolt diameters, enables torque-controlled installation using standard field tools, ensuring repeatable connection quality across large utility projects.
Spacer Design for Low-Resistance Contacts
An integrated metal spacer between the vise body segments increases the effective contact surface area between connector and conductor, reducing contact resistance at the joint interface. Lower contact resistance translates directly to reduced I²R heating, improved joint longevity, and compliance with IEEE Std 837 qualification requirements for permanent grounding connections. The spacer also maintains minimum conductor separation when two conductors of different diameters are installed in the same connector, preventing conductor-to-conductor abrasion and insulation damage in live-line tap applications.
Overlapping Conductor Size Range
The EAI-BPVC series is engineered with overlapping wire acceptance ranges across part numbers, so a single connector can accommodate multiple conductor AWG sizes. This overlap reduces the number of part numbers required in a field inventory, lowering procurement complexity and stocking costs. The EAI-BPVC-20, for example, accepts conductors from #8 AWG through 2/0 Stranded or 3/0 Solid, covering both main run conductors and smaller tap conductors within the same connector body. The EAI-BPVC-58SH variant is specifically designed for 5/8-inch ground rod terminations, bridging the conductor range from #6 to #2 AWG.
Conductor Compatibility and Configuration
These parallel groove vise connectors accommodate bare copper conductors, stranded copper cables, solid copper rods, and ground rods within specified size ranges. The parallel groove geometry maintains consistent contact geometry whether the installed conductor is solid or stranded, preventing differential settlement that can increase resistance over time. The EAI-BPVC-58SH variant with its extended body geometry accommodates 5/8-inch diameter copper-bonded ground rods as the main conductor while accepting #6 to #2 AWG wire taps, making it the preferred connector for ground rod termination assemblies in grounding electrode systems (GES) per NEC Article 250.
Corrosion Protection and Surface Finish
Silicon bronze parallel vise connectors are supplied with a mill finish that develops a stable, adherent copper-oxide patina on exposure to atmosphere, providing self-protecting corrosion resistance without coatings that can degrade in outdoor environments. The EAI-BPVC-20G variant includes a factory-applied protective coating for enhanced corrosion resistance in highly aggressive environments such as coastal marine installations, industrial chemical plants, and direct-burial applications. The EAI-BPVC-20P variant is produced with a standard polished finish suitable for indoor switchgear and transformer grounding applications where surface appearance is specified.
Part Number Variants and Dimensional Data
The EAI-BPVC series is organized into four standard part numbers covering the conductor range from #8 AWG to 5/8-inch ground rod. Dimensional data is provided in inches and covers the height (A), width (B), and length (C) of the connector body, enabling engineers to verify clearance requirements in confined terminal boxes, switchgear cubicles, and underground junction enclosures. All variants use 9/16-inch hex bolt heads, simplifying tooling requirements across a mixed installation fleet.
Technical Specifications
| EAI Part Number | Wire Min | Wire Max | Dim A (in) | Dim B (in) | Dim C (in) | Bolt Size | Bolt Head |
|---|---|---|---|---|---|---|---|
| EAI-BPVC-02 | #8 | #2 Sol | 1-3/16 | 1 | 3/4 | 5/16 | 9/16 |
| EAI-BPVC-10 | #8 | #1 | 1-7/16 | 1 | 1 | 5/16 | 9/16 |
| EAI-BPVC-20 | #8 | 2/0 Str / 3/0 Sol | 1-9/16 | 1 | 1 | 5/16 | 9/16 |
| EAI-BPVC-58SH | #6 – #2 | 5/8 Ground Rod | 2-1/4 | 1-3/16 | 1-3/16 | 3/8 | 9/16 |
Material Grades and Properties
| Property | Value |
|---|---|
| Base Material | Silicon Bronze / C955 Copper Alloy |
| Copper Content | ≥ 94.8% (min) |
| Silicon Content | 2.8 – 3.8% |
| Manganese Content | ≤ 1.5% |
| Tensile Strength | ≥ 414 MPa (60,000 psi) |
| Yield Strength | ≥ 172 MPa (25,000 psi) |
| Electrical Conductivity | 7% IACS (min) |
| Thermal Conductivity | 36 W/(m·K) |
| Hardness | 70–90 HRB |
| Operating Temperature | -40°C to +150°C |
| EAI Series Code | EAI-BPVC |
International Material Equivalent Standards
| Standard | Designation | Description |
|---|---|---|
| ASTM B99 | C65100 / C65500 | Silicon Bronze Rod, Bar, Shapes |
| UNS | C95500 / C95510 | Aluminum Bronze (alt. silicon bronze family) |
| BS EN | CuSi3Mn1 (CW116C) | Silicon Bronze – European Standard |
| DIN | 2.1023 / CuSi3 | Silicon Bronze – German DIN |
| JIS | C6541 | Silicon Bronze – Japanese Industrial Standard |
| IS | Bronze Grade 2 | Bureau of Indian Standards |
| GB | QSi3-1 | Silicon Bronze – Chinese National Standard |
Key Features
- High-strength silicon bronze body (C955 / C651 / C655 alloy)
- Interlocking vise design resists vibration loosening
- Integrated spacer increases contact area, reduces joint resistance
- Overlapping wire size ranges reduce inventory requirements
- Accepts #8 AWG through 5/8-inch ground rod
- 9/16-inch hex bolt head for uniform tooling across all variants
- Self-protecting corrosion resistance – no external coating required
- Suitable for bare copper, stranded cable, and solid copper rod
Vibration-Resistant Interlocking Vise
The interlocking vise body is the primary structural innovation of the EAI-BPVC series. Unlike simple u-bolt clamps or split-bolt connectors, the vise geometry mechanically keys the two body halves together under bolt tension, preventing jaw rotation or slip under vibration loads typical of transformer bushings, motor control centers, overhead line tie-points, and seismically active installations. This design feature eliminates the need for split-washer lock hardware, reducing total parts count and installation time per connection point.
Parallel Groove Contact Geometry
The parallel groove profile of the connector jaws maintains full longitudinal contact along the conductor, unlike tapered saddle connectors that contact only at the conductor center. Full-length contact reduces current density at the interface, preventing localized heating, oxidation acceleration, and contact degradation under cyclic thermal loading. The geometry is equally effective with stranded conductors (compacted or non-compacted) and solid copper rods, without the need for separate connector variants for each conductor type.
Ground Rod Termination – EAI-BPVC-58SH
The EAI-BPVC-58SH variant features a reinforced extended body designed specifically to grip 5/8-inch diameter copper-bonded ground rods while simultaneously accepting #6 through #2 AWG tap conductors. The 3/8-inch bolt and wider body geometry provide greater clamping force for the larger ground rod diameter. This connector is widely specified for grounding electrode systems (GES), driven ground rod arrays, lightning protection down-conductor terminations, and telecommunication tower grounding installations.
Corrosion and Environmental Resistance
Silicon bronze is inherently resistant to atmospheric corrosion, salt-fog, and galvanic corrosion when mated with copper conductors. The alloy’s resistance to stress corrosion cracking (SCC) in ammonia-containing environments makes it suitable for agricultural facilities, fertilizer plants, and wastewater treatment infrastructure – environments where brass connectors frequently fail. The EAI-BPVC series is rated for direct burial when installed per applicable grounding codes, including NEC 250.50 and IEEE Std 80 for AC substation grounding.
Reduced Inventory Through Size Overlap
The deliberate overlap in conductor acceptance ranges across adjacent EAI-BPVC part numbers means that one EAI-BPVC-20 can replace multiple competitor SKUs in field inventory. This simplification is especially valuable for EPC contractors managing multi-SKU procurement across large industrial or utility projects, reducing PO complexity, warehouse space, and field crew training requirements. For bulk procurement inquiries, Electrical Accessories India offers custom kitting by project BOM.
Tool Compatibility and Installation Torque
All EAI-BPVC connectors use a 9/16-inch hex bolt head, compatible with standard fixed-torque wrenches used across utility lineman and substation electrician toolkits. Recommended installation torque for 5/16-inch bolts (EAI-BPVC-02, EAI-BPVC-10, EAI-BPVC-20) is 12–15 ft-lb; for 3/8-inch bolts (EAI-BPVC-58SH) the recommended torque is 20–25 ft-lb. Torque-controlled installation is critical for ensuring rated contact force without crushing stranded conductors or cracking the connector body.
Product Types / Variants
| EAI Part Number | Description | Special Feature |
|---|---|---|
| EAI-BPVC-02 | Compact connector, #8 to #2 Sol AWG | Smallest body in series; ideal for tight enclosures |
| EAI-BPVC-10 | Standard connector, #8 to #1 AWG | General-purpose tap connector |
| EAI-BPVC-20 | Heavy connector, #8 to 2/0 Str / 3/0 Sol | Widest wire range in standard series |
| EAI-BPVC-20G | EAI-BPVC-20 with protective coating | Enhanced corrosion protection for aggressive environments |
| EAI-BPVC-20P | EAI-BPVC-20 with polished finish | Clean appearance for indoor switchgear applications |
| EAI-BPVC-58SH | Ground rod connector, #6–#2 to 5/8″ rod | Extended body for 5/8″ copper-bonded ground rods |
Applications by Industry
| Industry Segment | Application |
|---|---|
| Power Utilities | Overhead line tap connections, transformer grounding, substation earthing grids |
| EPC Contractors | Grounding electrode system (GES) terminations, lightning protection conductor taps |
| Electrical OEMs | Switchgear grounding bus taps, motor control center (MCC) earth connections |
| Telecommunications | Tower grounding, BESS grounding systems, data center earthing networks |
| Industrial Plants | Petrochemical earthing, chemical plant grounding, mining substation bonding |
| Building Construction | Structural steel bonding, NEC 250 grounding electrode systems, supplemental electrodes |
| Renewable Energy | Solar farm DC grounding, wind turbine tower grounding conductors |
Manufacturing Process
EAI-BPVC Bronze Parallel Vise Connectors are manufactured at Electrical Accessories India’s Jamnagar facility using shell mould casting for dimensional accuracy and fine surface finish. Silicon bronze ingot is melted in induction furnaces under controlled temperature profiles to maintain alloy composition within ASTM B99 limits. Molten bronze is poured into pre-heated ceramic shell moulds dimensioned to the EAI-BPVC series geometry, ensuring wall thickness uniformity and freedom from porosity. After casting, parts are shot-blasted to remove scale, then machined on CNC centers to achieve thread dimensions, bore diameters, and bolt seat geometry within ±0.05 mm tolerances. Bolts are sourced to matching silicon bronze or stainless steel (AISI 316) specifications and assembled with controlled pre-load. Each connector batch undergoes dimensional inspection per drawing and electrical continuity verification before packing.
Quality Standards and Certifications
| Standard / Certification | Relevance |
|---|---|
| ASTM B99 | Silicon Bronze material – rod, bar, shapes specification |
| ASTM B187 | Copper bus bar, rod, and shapes material standard |
| IEEE Std 837 | Qualification of permanent connections for power conductors |
| ANSI/NEMA CC 1 | Electric power connectors for substations |
| UL 467 | Grounding and bonding equipment |
| NEC Article 250 | Grounding and bonding requirements (installation compliance) |
| RoHS Compliant | Restriction of hazardous substances – export compliance |
| ISO 9001:2015 | Quality management system – manufacturing facility |
Why Choose Electrical Accessories India
- Specialized Bronze Expertise: Over two decades manufacturing silicon bronze and copper alloy connectors, grounding clamps, and electrical hardware for global OEM and utility customers.
- Jamnagar Manufacturing Hub: Located in India’s premier brass and non-ferrous metal machining cluster with vertically integrated casting, machining, and assembly capabilities.
- Export-Ready Compliance: Products tested and documented to ASTM, IEEE, UL, and NEMA standards required by North American, European, and Australian procurement specifications.
- Custom Geometry Capability: Non-standard conductor size ranges, special body geometries, and OEM branding available for volume orders with engineering drawings provided at NRE cost.
- Competitive MOQ and Lead Times: Standard part numbers maintained in semi-finished stock; typical lead time 4–6 weeks for standard orders, 8–10 weeks for custom tooling.
- Full Technical Documentation: Material test certificates (MTC), dimensional inspection reports, and third-party test reports available per customer purchase order requirements.
Related Products in Bronze Connectors Category
- Bronze Stirrup Clamps and Bronze Bail Clamps
- Bronze-Copper Cast Lugs for Transformers
- Bronze Mechanical Lugs and Bronze Mechanical Connectors
- Bronze Transformer Ground Connectors
- Hotline Clamps of Bronze
- Transformer Spade Connectors of Bronze
- Bronze Vise Connectors (Wire Connectors)
- Bronze Transformer Tank Connectors
Equivalent Terms in International Languages
| Language | Term 1 | Term 2 | Term 3 |
|---|---|---|---|
| Spanish | Conectores de tornillo paralelo de bronce | Abrazadera paralela de bronce | Conector de mordaza paralela |
| Russian | Параллельные зажимные соединители из бронзы | Бронзовые параллельные соединители | Зажим параллельного провода бронзовый |
| French | Connecteurs à étau parallèle en bronze | Connecteur rainure parallèle bronze | Serre-câble parallèle en bronze |
| Portuguese | Conectores de torno paralelo de bronze | Abraçadeira paralela de bronze | Conector de ranhura paralela bronze |
| Italian | Connettori a morsa parallela in bronzo | Connettore a scanalatura parallela bronzo | Morsetto parallelo in bronzo |
Frequently Asked Questions (FAQ)
Q1: What alloy are Bronze Parallel Vise Connectors made from?
They are manufactured from high-strength silicon bronze, typically conforming to ASTM B99 C65500 or C955 copper alloy, providing superior tensile strength, corrosion resistance, and electrical conductivity compared to standard brass or cast zinc connectors.
Q2: Can EAI-BPVC series connectors be used for aluminum conductors?
The standard EAI-BPVC connectors are designed primarily for copper conductors and copper-bonded ground rods. For aluminum conductor tap applications, consult Electrical Accessories India for aluminum-compatible versions or appropriate bimetallic interface coatings to prevent galvanic corrosion between aluminum and bronze.
Q3: What is the installation torque for EAI-BPVC-20 connectors?
For EAI-BPVC-20 (5/16-inch bolt), the recommended installation torque is 12–15 ft-lb (16–20 N·m). For the EAI-BPVC-58SH (3/8-inch bolt), the recommended torque is 20–25 ft-lb (27–34 N·m). Always use a calibrated torque wrench for code-compliant installations.
Q4: Are EAI-BPVC connectors suitable for direct burial in soil?
Silicon bronze connectors are generally rated for direct burial when the soil chemistry is not aggressively acidic (pH below 4). For high-sulfur or chemically aggressive soils, request the EAI-BPVC-20G variant with protective coating, or consult the project corrosivity classification per IEEE Std 80 Annex C.
Q5: What is the difference between EAI-BPVC-20G and EAI-BPVC-20P variants?
EAI-BPVC-20G has a factory-applied protective coating for enhanced corrosion resistance in outdoor, direct-burial, or marine environments. EAI-BPVC-20P has a polished finish for indoor switchgear and transformer grounding applications where a clean surface appearance is specified or preferred.
Q6: Do you supply material test certificates (MTC) with the connectors?
Yes. Material test certificates confirming alloy composition per ASTM B99, along with dimensional inspection reports, are supplied as standard documentation. Third-party test reports per IEEE 837 are available on request for qualified project procurement.
Q7: What is the minimum order quantity (MOQ) for EAI-BPVC Bronze Parallel Vise Connectors?
Standard MOQ is 500 pieces per part number for catalog sizes. Custom sizes or special finishes require a minimum of 1,000 pieces. Contact sales@elecaccs.com with your project BOM for firm pricing and lead time confirmation.
Q8: Are these connectors UL Listed?
The EAI-BPVC connectors are manufactured to materials and dimensional standards referenced in UL 467 (Grounding and Bonding Equipment). Formal UL Listing is available for volume OEM customers subject to product qualification testing. Contact us for UL-mark procurement options.
Q9: Can the EAI-BPVC connector body size be customized for non-standard conductor combinations?
Yes. Electrical Accessories India provides custom connector geometry engineering for non-standard conductor size combinations, special bolt patterns, or extended body lengths. Submit a technical inquiry with conductor sizes, installation environment, and applicable standards for a custom design quotation.
Q10: What markets does Electrical Accessories India export to?
We export EAI-BPVC Bronze Parallel Vise Connectors and related grounding hardware to North America (USA, Canada), Europe (UK, Germany, Netherlands), Middle East (UAE, Saudi Arabia), Southeast Asia (Malaysia, Singapore, Indonesia), Australia, and South Africa. All export documentation, CO, and packing lists are provided per buyer requirements.
Call to Action
Request a Quote for Bronze Parallel Vise Connectors – EAI-BPVC Series
Contact Electrical Accessories India for technical specifications, custom size enquiries, bulk pricing, and material test certificates. We respond to all RFQs within one business day.
Email: sales@elecaccs.com
Phone: +91-22-43449300 | +91-22-43449323
Address: Plot 10, GIDC Industrial Estate, Shanker Tekri, Udyog Nagar, Jamnagar 361004, India
