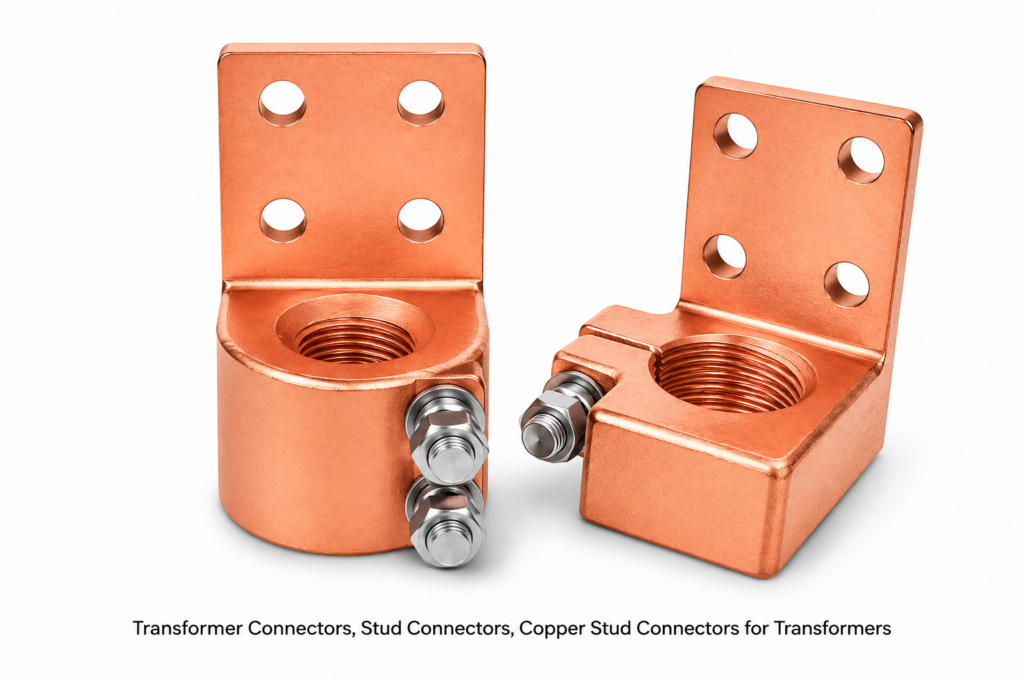

Copper Transformer Stud Connectors
Copper Transformer Stud Connectors
Pricing: US$ 15.80 / Kilogram (FOB India | MOQ: 50 Kg | Custom specifications accepted)
Electrical Accessories India manufactures and exports copper transformer stud connectors—also called internal transformer connectors—machined from pure copper (C11000 ETP and C10100 OFHC) to OEM-specified dimensions for use in distribution transformers, power transformers, dry-type transformers, and pad-mounted transformers. These connectors provide the critical electrical and mechanical interface between transformer coil windings, copper terminal studs, bushing assemblies, and external cable/bus-bar connections, ensuring full-path copper conductivity from the winding to the point of connection. Electrical Accessories India supplies transformer OEMs, EPC contractors, power utilities, and maintenance organizations across North America, Europe, the Middle East, Asia-Pacific, and Africa.
Product Overview – Copper Transformer Stud Connectors
Copper transformer stud connectors—also referenced as copper internal transformer terminal connectors, copper stud-to-bus connectors, copper coil-to-terminal adapters, copper transformer winding connectors, copper tap connector blocks, copper terminal lug connectors, copper LV connector assemblies, copper transformer terminal plates, and copper bushing-to-stud adapters—are machined or cast components that bridge the coil winding exits to the external terminal stud array in a transformer. They are designed for smooth double-sided machine finishing, which maximizes surface contact area, reduces contact resistance, and ensures uniform current distribution across the connector interface.
Design Function and Electrical Role
In distribution transformers (up to 2,500 kVA, 11 kV–33 kV), the internal transformer connector connects the winding foil or round-wire exit to the LV/HV terminal stud or bushing through a copper bridge block. This connector must accommodate thermal expansion, winding movement under short-circuit forces, and assembly tolerance stack-up while maintaining reliable, low-resistance contact. The connector is typically bolted to the transformer stud (see our Copper Transformer Studs) using copper nuts and flat washers (see our Copper Machined Washers), forming a complete copper-to-copper electrical joint with negligible resistance and no bimetallic galvanic cell.
Pure Copper for Maximum Conductivity
All internal transformer connectors are manufactured from 100% pure copper—either C11000 ETP copper (≥ 98% IACS) for standard distribution transformer applications, or C10100 OFHC copper (≥ 101% IACS) for high-efficiency transformer designs complying with IEC 60076-11 Tier 2/3, DOE 2016, or IS 1180 efficiency tiers. Using pure copper throughout—from the winding, through the connector, to the bushing—eliminates any dissimilar metal interface and provides the lowest possible conductor losses. Cast copper connectors with machined smooth surfaces on both sides are the standard design, ensuring maximum connectivity and consistent clamping contact.
Machined-to-Specification Design
Copper transformer stud connectors are manufactured precisely to the transformer OEM’s drawings or samples. Typical connector geometries include: rectangular flat connector plates with tapped stud holes; L-shaped (angle) connectors for orthogonal stud-to-winding connections; T-shaped and cross-shaped connector blocks for multi-tap winding configurations; cylindrical adapter sleeves for coaxial bushing-to-stud connections; and bridge connectors for connecting two parallel studs to a single winding exit. All connector faces are machine-finished on both sides to Ra ≤ 3.2 μm (125 μin) for maximum contact area and minimum interface resistance. Custom hole patterns, counter-bores, and thread inserts are machined per OEM specifications.
Compatibility with Transformer Stud Standards
Copper transformer stud connectors are designed to pair with the complete range of copper transformer studs in imperial thread sizes (3/8″ UNC, 1/2″ UNC/UNF, 3/4″ UNC/UNF, 1″ UNC/UNF) and metric sizes (M10, M12, M16, M20, M24). Tapped holes in the connector block can be supplied as through-tapped or blind-tapped, Class 2B (UNC/UNF/UNS per ASME B1.1) or 6H (metric per ISO 965). Clearance holes for pass-through bolt connections are reamed or bored to H7 fit. The transformer OEM’s standard stud pattern and connector geometry are reproduced exactly to ensure drop-in fit in transformer assembly without field modification.
Corrosion Resistance in Transformer Environments
Pure copper transformer stud connectors are fully compatible with all IEC 60296-compliant mineral transformer oils, IEC 61099 synthetic ester fluids, ASTM D6871 natural ester fluids (FR3), and silicone-based insulating fluids, exhibiting zero corrosion or degradation over a 30+ year transformer service life. In dry-type transformer applications (AN, AF, KNAN cooling per IEC 60076-12), copper connectors resist moisture, condensation, SO₂, H₂S, and industrial atmospheric pollutants via natural patina formation. No coatings, platings, or surface treatments are required for oil-immersed applications; tin-plating (ASTM B545) or silver-plating (ASTM B700) are offered for connectors used in dry-type or outdoor transformer enclosure environments.
Custom Manufacturing for OEM Transformer Designs
Electrical Accessories India specializes in OEM-specific transformer connector manufacturing. Customers submit engineering drawings, samples, or dimensional sketches (STEP, DXF, DWG, PDF). Engineering review and DFM (Design for Manufacturability) feedback are provided within 2 business days. Prototype samples (5–25 pieces) are produced within 5–7 days for OEM type-testing and approval. Upon approval, production tooling (fixtures, gauges) is manufactured and retained for repeat orders. Kanban supply arrangements with EDI-linked inventory management are available for high-volume transformer OEM customers.
Quality and Traceability
Each batch of copper transformer stud connectors is produced under ISO 9001:2015 QMS with full raw material traceability via EN 10204 Type 3.1 mill test certificates. Incoming copper rod/bar/plate is tested for chemical composition (OES/ICP spectroscopy), conductivity (eddy-current, ASTM E1004), and hardness (Vickers HV) before acceptance. 100% dimensional inspection per drawing; AQL 1.0 sampling for surface finish and thread gauging. Conductivity measurement on 10% of finished connectors. All inspection records, batch numbers, and MTCs are archived for 10 years for field warranty traceability.
Key Features of Copper Transformer Stud Connectors
- 100% pure copper construction: C11000 ETP (≥ 98% IACS) and C10100 OFHC (≥ 101% IACS)
- Double-sided machine finishing to Ra ≤ 3.2 μm for maximum contact area
- Custom manufactured to OEM transformer drawings – exact dimensions, hole patterns, and profiles
- Compatible with UNC, UNF, UNS (3/8″–1″) and Metric (M10–M24) transformer studs
- Suitable for mineral oil, synthetic ester, natural ester, and dry-type transformer environments
- EN 10204 Type 3.1 material test certificates with every shipment
- ISO 9001:2015 quality management system; NABL-traceable test reports
- RoHS 2 and REACH compliant; tin-plating and silver-plating options available
- Prototype samples in 5–7 days; production in 2–4 weeks
- Price: US$ 15.80 / Kilogram FOB India
Pure Copper Conductivity Advantage
The critical advantage of copper internal transformer connectors over aluminum or brass alternatives is conductivity. C11000 ETP copper at 98% IACS provides 1.6× the conductivity of aluminum (61% IACS) and over 3× that of brass (28% IACS). In transformer terminals where full winding current flows through the connector, this conductivity difference directly translates into lower I²R losses, lower temperature rise at the connector joint, and reduced hotspot formation in transformer windings. For a 1,000 kVA distribution transformer at full load, replacing aluminum connectors with copper reduces connector-joint losses by approximately 40%, contributing to meeting DOE 2016, IEC 60076-11 Tier 2, and IS 1180 efficiency requirements.
Precision CNC Machining
Transformer stud connectors are machined on CNC machining centers and CNC lathes from copper bar, plate, or cast copper billets. Dimensional tolerances of ±0.05 mm (±0.002″) on all critical dimensions are maintained. CNC milling machines with copper-specific tooling (sharp carbide inserts, high-speed spindles, minimum-quantity lubrication) produce burr-free, smooth connector faces without work-hardening the surface. Tapped holes are produced with spiral-point taps (CNC rigid tapping) achieving Class 2B thread tolerance per ASME B1.1. First Article Inspection (FAI) reports including CMM-measured dimensional data, surface roughness (Ra), and thread gauging are provided for each new OEM part number.
Double-Sided Smooth Finish
Both contact faces of the transformer stud connector are finish-machined to Ra ≤ 3.2 μm (125 μin) surface roughness. This smooth, flat contact surface ensures: maximum metal-to-metal contact area for low resistance; uniform clamping pressure distribution when torqued with copper nuts; prevention of micro-arcing at contact interfaces during load cycling; and effective sealing in oil-immersed transformers. Surface finish is verified by surface roughness tester (profilometer) per ISO 4287. Optionally, lapped surfaces to Ra ≤ 0.8 μm are offered for ultra-low resistance GIS and HV transformer applications.
Custom Hole Patterns and Profiles
No two transformer OEM designs use the same connector configuration. Electrical Accessories India’s CNC machining capability allows any combination of: tapped holes (UNC/UNF/Metric, blind or through), clearance holes (H7/H8 fit, chamfered), counter-bores, counter-sinks, slots (for sliding adjustment during assembly), keyways, boss features, ribs, and integral mounting lugs. Multi-connector assemblies (two or more conductors joined in a single block) are machined from copper solid stock or fabricated from copper plate. L-shaped, T-shaped, U-shaped, and custom-profile connectors are produced in prototype quantities within 5–7 working days.
Compliance with Transformer Standards
Copper transformer stud connectors are manufactured to ISO 9001:2015 QMS and comply with material standards ASTM B187 (copper rod), BS EN 13601 (copper rod), IS 191 (copper bar), and DIN EN 1977 (copper alloy rod). Dimensional and material compliance is verified against IEC 60076 (Power Transformers), IEC 60076-11 (Dry-Type Transformers), IEEE C57.12.00, IS 2026, and ANSI/NEMA ST-20. EN 10204 Type 3.1 material test certificates, RoHS 2 compliance declarations, and REACH compliance declarations are provided with every shipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Copper Internal Transformer Stud Connector |
| Material | C11000 ETP Copper (standard); C10100 OFHC (high efficiency) |
| Conductivity | ≥ 98% IACS (C11000); ≥ 101% IACS (C10100) |
| Tensile Strength | 200–250 MPa (annealed / half-hard) |
| Surface Finish | Ra ≤ 3.2 μm both contact faces (lapped to Ra ≤ 0.8 μm optional) |
| Thread Compatibility | UNC / UNF / UNS (3/8″–1″); Metric M10–M24; Custom on request |
| Geometry | Flat, L-shape, T-shape, cylindrical, bridge – custom per OEM drawing |
| Dimensional Tolerance | ±0.05 mm on critical dimensions; H7 bore fits per ISO 286 |
| Size Range | 10 mm to 150 mm (any dimension); custom per drawing |
| Transformer Compatibility | Mineral oil, synthetic ester, natural ester, dry-type, and pad-mounted |
| Surface Treatment | Bright copper / Tin-plated (ASTM B545) / Silver-plated (ASTM B700) |
| Standards | ISO 9001:2015, ASTM B187, BS EN 13601, EN 10204 Type 3.1 |
| Lead Time | 5–7 days (prototypes); 2–4 weeks (production) |
| MOQ | 50 kg standard; prototype samples 2–5 kg |
| Price | US$ 15.80 / Kilogram (FOB India) |
Copper Material Grades and International Equivalents
| UNS (USA) | EN (Europe) | BS (UK) | DIN (Germany) | IS (India) | JIS (Japan) | Description |
|---|---|---|---|---|---|---|
| C10100 | CW008A | C101 | E-Cu99.99 | — | C1011 | Oxygen-Free High Conductivity (OFHC) |
| C11000 | CW004A | C101 | E-Cu58 ETP | ETP Copper | C1100 | Electrolytic Tough Pitch (ETP) – Standard |
| C12200 | CW024A | C106 | SF-Cu | DHP Copper | C1220 | Phosphorus Deoxidized – Weldable |
Product Types and Variants
| Type | Geometry | Typical Application |
|---|---|---|
| Flat Connector Plate | Rectangular with tapped / clearance holes | LV terminal pad connection in distribution transformers |
| L-Shape Connector | 90° angle block | LV winding exit to orthogonal terminal stud |
| T-Shape Connector | T-profile with three connection ports | Multi-tap winding connections, OLTC tap arrays |
| Cylindrical Adapter Sleeve | Hollow cylinder with threaded bore | Bushing-to-stud coaxial connection, cable box entry |
| Bridge Connector Block | Twin-hole bar with smooth shank | Connecting two parallel studs to single winding exit |
| Custom Profile Connector | Per OEM drawing (any geometry) | OEM-specific transformer designs, specialty transformers |
Applications by Industry
| Industry / Application | Copper Transformer Stud Connector Application |
|---|---|
| Distribution Transformer OEMs | LV terminal pad connectors, HV bushing adapters, neutral link connectors |
| Power Transformer Manufacturers | Winding-to-bushing connector blocks, tap changer terminal connectors |
| Dry-Type Transformer Manufacturers | Cast resin transformer winding exit connectors, LV bus-bar adapters |
| Power Utilities (T&D) | Replacement connectors for transformer maintenance and refurbishment |
| Renewable Energy (Solar / Wind) | Pad-mounted transformer internal connectors for grid interface |
| Railways and Traction | Traction transformer internal connectors, AT transformer LV connectors |
| Data Centers and UPS | UPS transformer and PDU transformer winding connectors |
| Industrial Manufacturing | Furnace transformer, drive isolation transformer connectors |
Manufacturing Process
Copper transformer stud connectors are produced through a controlled process: (1) Material Selection and Incoming Inspection – copper rod, bar, or plate (ASTM B187, BS EN 13601, IS 191) is tested for conductivity (ASTM E1004), hardness (Vickers HV), and chemical composition (OES spectroscopy) before release to production. (2) Raw Material Sawing / Profiling – copper stock is cut to blank size on CNC saws. (3) CNC Milling and Drilling – connector profiles, faces, holes, counter-bores, threads, and slots are machined on CNC machining centers with copper-optimized tooling. (4) CNC Turning (for cylindrical connectors) – bore diameters and thread forms are turned on CNC lathes to H7/h6 dimensional tolerances. (5) Surface Finishing – both contact faces are finish-milled or lapped to Ra ≤ 3.2 μm; deburring and edge-breaking on all holes and features. (6) Surface Treatment (if required) – tin-plating or silver-plating per ASTM B545/B700. (7) Inspection – 100% dimensional check per drawing; surface roughness by profilometer; thread gauging per ASME B1.1 or ISO 965; conductivity test on 10% of pieces. (8) Packing and Documentation – VCI polybag, carton, ISPM-15 export crate; EN 10204 3.1 MTC, dimensional report, and compliance declarations.
Quality Standards and Certifications
| Standard / Certification | Scope |
|---|---|
| ISO 9001:2015 | Quality Management System |
| ASTM B187 / BS EN 13601 | Copper rod and bar chemical composition and properties |
| EN 10204 Type 3.1 | Material test certificate with independent inspection |
| IEC 60076 | Power transformer standard (application reference) |
| IEC 60076-11 | Dry-type transformer standard (application reference) |
| ASTM B545 | Tin electroplating specification |
| ASTM B700 | Silver electroplating specification |
| RoHS 2 / REACH | Restriction of hazardous substances compliance |
| ISO 4287 | Surface texture – roughness measurement |
Why Choose Electrical Accessories India for Copper Transformer Stud Connectors?
Electrical Accessories India has over two decades of experience manufacturing copper precision components for transformer OEMs, substation equipment manufacturers, EPC contractors, and power utilities worldwide. Our transformer connector manufacturing capability includes: dedicated CNC machining centers and turning centers for copper alloys; in-house electroplating lines (tin, nickel, silver); NABL-accredited testing facilities for conductivity, hardness, and dimensional verification; EN 10204 3.1 material certificates with every shipment; First Article Inspection (FAI) reports for new OEM part numbers; rapid prototype turnaround (5–7 days) for type-testing and qualification; and export packaging compliant with ISPM-15. We supply at US$ 15.80/kg FOB India to clients in India, USA, UK, Germany, UAE, Australia, Canada, Singapore, South Africa, and beyond.
Frequently Asked Questions (FAQ)
Q1. What is a copper internal transformer stud connector?
A copper internal transformer stud connector is a precision-machined copper block or plate that connects the transformer winding exit to the external terminal stud or bushing assembly. It forms a continuous copper pathway from the winding coil through to the external cable or bus-bar connection, ensuring maximum conductivity and minimum joint resistance. The connector is bolted to the transformer stud using copper nuts and washers.
Q2. Why must transformer stud connectors be made of pure copper?
Pure copper (C11000 ETP or C10100 OFHC) provides the best combination of electrical conductivity (98–101% IACS), thermal conductivity, and corrosion resistance for transformer terminal applications. Aluminum connectors introduce a dissimilar metal interface with copper windings/studs, creating galvanic corrosion and elevated contact resistance. Brass connectors (28–35% IACS) increase transformer losses by 2–3× compared to copper at the terminal joint. Pure copper ensures continuity of the copper conductor path from winding through terminal, meeting IEC 60076 and DOE 2016 efficiency requirements.
Q3. Can you manufacture connectors to customer drawings or samples?
Yes. We specialize in OEM-specific transformer connector manufacturing. Customers submit engineering drawings (STEP, DXF, DWG, PDF) or physical samples. Engineering review and DFM feedback are provided within 2 business days. Prototype samples (5–25 pieces) are produced within 5–7 working days for OEM type-testing. Upon approval, production quantities are delivered in 2–4 weeks. All tooling and gauges are retained for repeat orders at no additional cost.
Q4. What is the minimum order quantity for copper transformer stud connectors?
MOQ is 50 kg for production orders. For prototype and qualification samples, 2–5 kg (typically 5–25 pieces depending on connector weight) are accepted at nominal sample charges. Urgent prototype delivery in 3–5 days is available for critical type-testing programs at expedite surcharge.
Q5. What thread forms are used in the tapped holes of transformer stud connectors?
Tapped holes are supplied in UNC (3/8″, 1/2″, 3/4″, 1″) or UNF (3/8″, 1/2″, 3/4″, 1″) per ASME B1.1, or Metric coarse/fine (M10, M12, M16, M20, M24) per ISO 261, or any UNS special thread per customer drawing. Thread class is 2B (ASME) or 6H (ISO) as standard. Thread gauging is performed 100% with calibrated GO/NO-GO plug gauges.
Q6. What surface treatment is recommended for dry-type transformer connectors?
For dry-type transformer connectors exposed to atmospheric air, tin-plating per ASTM B545 (minimum 5 μm thickness) is recommended for general industrial environments. Silver-plating per ASTM B700 is recommended for high-temperature dry-type transformers and high-current LV bus-bar interfaces where oxidation-free contact is essential. For oil-immersed transformers, no plating is required as ETP copper is fully compatible with transformer oil per IEC 60296.
Q7. Can you supply replacement connectors for existing transformer models?
Yes. For transformer maintenance and refurbishment, we supply replacement copper stud connectors to match existing connectors by sample or drawing. Customers can send physical connector samples by courier; we reverse-engineer the connector dimensions, verify material grade by XRF/OES, and produce replacement connectors within 5–10 working days. This service is used by power utilities, transformer repair shops, and T&D maintenance contractors.
Q8. What surface roughness is achieved on connector contact faces?
Standard production achieves Ra ≤ 3.2 μm (125 μin) on both contact faces via CNC finish-milling. For ultra-low resistance applications (GIS transformers, high-efficiency power transformers), lapped surfaces achieving Ra ≤ 0.8 μm (32 μin) or Ra ≤ 0.4 μm (16 μin) are available. Surface roughness is measured per ISO 4287 using a calibrated profilometer and documented in the inspection report.
Q9. How are copper transformer stud connectors packed for export?
Connectors are individually wrapped in VCI (Volatile Corrosion Inhibitor) paper or polybag, then packed in cartons with silica gel desiccant and foam padding. Outer packaging is plywood or corrugated carton complying with ISPM-15 phytosanitary standards. Net weight, gross weight, part number, lot number, material grade, and country of origin are marked on each carton.
Q10. Do you offer design assistance for transformer connector optimization?
Yes. Our engineering team offers DFM (Design for Manufacturability) review and connector geometry optimization to reduce material weight, improve machinability, and enhance electrical performance. For new transformer design programs, we recommend optimal connector profiles, hole patterns, and material grades based on rated current, thermal class, and assembly method. This collaborative engineering approach is offered at no additional charge to qualified OEM customers.
Multilingual Equivalent Terms
| Language | Equivalent Terms |
|---|---|
| Spanish | Conectores de espárrago de transformador de cobre, Conectores internos de transformador en cobre, Bloques de conexión de transformador de cobre |
| Russian | Медные разъёмы шпилек трансформатора, Внутренние медные соединители трансформатора, Медные контактные блоки трансформатора |
| French | Connecteurs de goujon de transformateur en cuivre, Connecteurs internes de transformateur cuivre, Blocs de connexion de transformateur en cuivre |
| Portuguese | Conectores de pino de transformador em cobre, Conectores internos de transformador de cobre, Blocos de conexão de transformador em cobre |
| Italian | Connettori prigioniero trasformatore in rame, Connettori interni trasformatore in rame, Blocchi di connessione trasformatore rame |
Related Products – Copper Parts and Components
Explore our complete range of copper precision parts and components:
- Copper Transformer Studs
- Copper Hex Bolts, Copper Bolts
- Copper CNC Machined Parts
- Copper Impact Extrusion / Copper Extruded Parts
- Copper Milling Work / Copper Milled Parts
- Copper Screw Machine Parts
- Copper Cold Forged Parts
- Copper Forged Parts / Copper Hot Forged Components
- Copper Sealing Washers
- Copper Machined Washers
- Copper Machine Screws
- Copper Nuts
- Copper Casting High Conductivity
Request a Quote – Copper Transformer Stud Connectors
Electrical Accessories India | Manufacturer & Exporter of Copper Transformer Stud Connectors
Email: info@elecaccs.com | Website: elecaccs.com
Price: US$ 15.80 / Kilogram (FOB India)
Lead Time: 5–7 days (prototypes) | 2–4 weeks (production) | MOQ: 50 Kg
Submit your drawing, sample, or specification to receive a detailed technical quotation within 24 business hours. We serve clients across India, USA, UK, Germany, UAE, Australia, Canada, Singapore, and South Africa.
