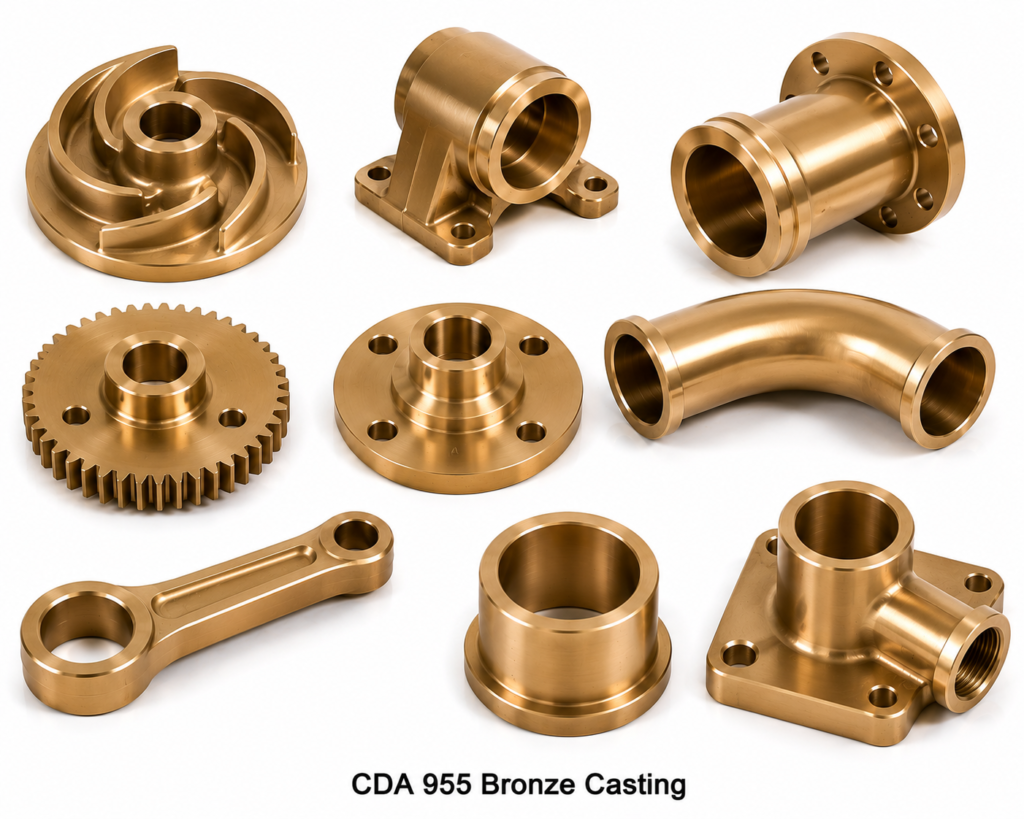

CDA 955 Bronze Casting
CDA 955 Bronze Casting – C95500 | AB2C | Nickel Aluminum Bronze
CDA 955 is the CDA designation for C95500 nickel aluminum bronze (AB2C), the nickel-bearing variant of AB2. The nickel addition improves high-temperature performance and elevated-temperature corrosion resistance. Tensile strength 620 MPa min per ASTM B148. Electrical Accessories India exports CDA 955 castings to US aerospace, marine, and oil and gas customers.
Chemical Composition – CDA 955 / C95500
| Element | Min % | Max % |
|---|---|---|
| Cu | Balance | — |
| Al | 10.0 | 11.5 |
| Ni | 3.5 | 5.5 |
| Fe | 3.0 | 5.0 |
| Mn | — | 0.5 max |
| Pb | — | 0.05 max |
Equivalence
| Standard | Designation |
|---|---|
| CDA/UNS | CDA 955 / C95500 |
| EN 1982 | CC333G |
| ISO/DIN | CuAl10Fe5Ni5 |
| BS 1400 | AB2C |
| IS 318 | Grade 3 |
Properties (ASTM B148)
| Property | Value |
|---|---|
| Tensile Strength | 620 MPa min |
| Yield Strength | 280 MPa min |
| Elongation | 10% min |
| Hardness | 160–200 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US Port.
