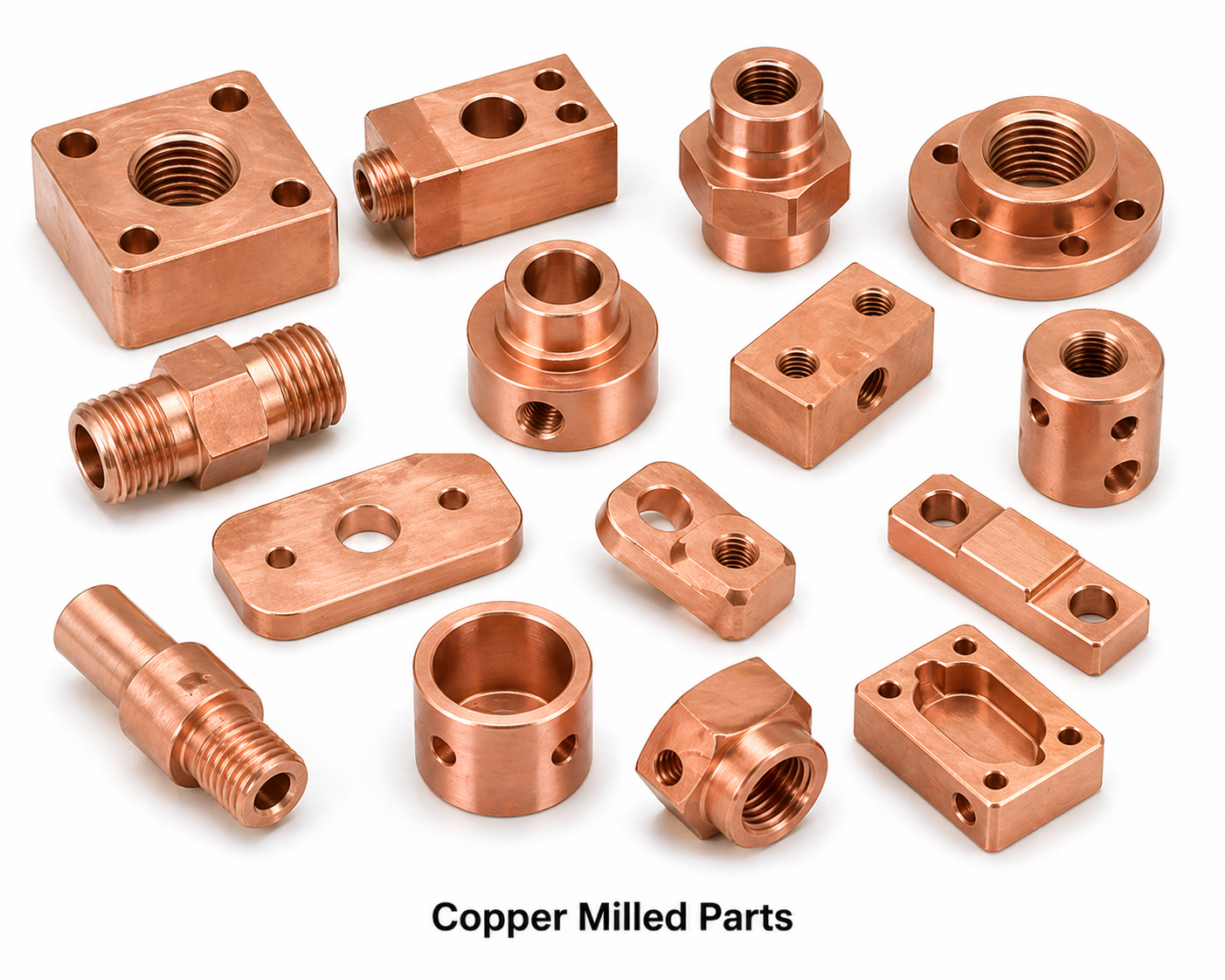

Copper Milled Parts
Copper Milled Parts
Copper milled parts — also identified as CNC milled copper components, copper machined profiles, copper VMC-machined parts, copper plate-machined parts, or copper prismatic components — are precision components produced by CNC milling, profile milling, slot milling, face milling, and drilling operations on copper plate, slab, or block stock. Unlike turned parts (which have rotational symmetry), milled copper parts have prismatic profiles — flat surfaces, slots, pockets, drilled hole patterns, and complex 3D profiles — that are better produced on Vertical Machining Centres (VMCs) or CNC milling machines than on lathes. Electrical Accessories India manufactures copper milled parts from ETP copper (C11000), OF copper (C10200), and IS 191 Grade 1 copper plate and bar for busbar connectors, contact blocks, current transformers, grounding pads, and custom electrical hardware for switchgear OEMs, power utilities, and EPC contractors.
Product Overview
Milling vs. Turning for Copper Components
The choice between milling and turning depends on the component geometry. Cylindrical components with circular cross-sections — pins, studs, connector bodies — are turned. Prismatic components with flat surfaces, rectangular profiles, slot patterns, and multiple drilled holes — busbar connectors, contact blocks, heat sinks, and mounting plates — are milled. Many complex copper components require both turning and milling operations — these are produced on multi-axis turning-milling centres that perform all operations in a single clamping. Electrical Accessories India has both CNC lathes and VMCs, enabling complete fabrication of combined turned-and-milled copper components without inter-machine handling.
Copper Grades for Milling
ETP copper (C11000, Cu-ETP, IS 191 Grade 1) is the standard grade for electrically functional milled copper parts. With ≥99.9% Cu (+ Ag counted as Cu) and electrical conductivity of 100% IACS, it is the material of choice for all current-carrying milled copper components — busbar connectors, contact blocks, and cable lug pads. Oxygen-free copper (C10200, Cu-OF) is used for milled parts in vacuum equipment, cryogenic systems, or where hydrogen embrittlement risk must be avoided (high-temperature brazing joints). DHP copper (C12200) is not used for electrically functional parts due to reduced conductivity (~85% IACS) but may be used for structural copper brackets or mounting components.
CNC Milling Capabilities for Copper
Electrical Accessories India’s VMC milling capability for copper covers: workpiece size up to 600 × 400 × 300 mm; spindle speeds to 8,000 rpm with high-power motorised spindle; 3-axis and 4-axis machining; high-pressure coolant for chip evacuation; and pallet change systems for unmanned production. Standard milling operations include: face milling (top surfaces of busbar pads), slot milling (busbar connector slots and cable entry channels), pocket milling (recessed terminal areas), hole drilling and tapping (M4–M24 in copper plate), and profile milling (complex 2D contours for custom connector profiles). Tolerances: ±0.05 mm general, ±0.01 mm precision on critical surfaces; flatness 0.02/100 mm; thread tolerance 6H.
Busbar Milled Copper Components
A significant portion of Electrical Accessories India’s copper milling production supports busbar system manufacturers and switchgear OEMs. Copper busbar connector blocks require: flat, burr-free mating surfaces (Ra <1.6 µm) for low contact resistance; drilled and tapped bolt holes for mechanical connection; chamfered edges to prevent corona discharge in MV applications; and tin or silver plating for oxidation protection and long-term contact stability. Electrical Accessories India produces standard busbar accessories — end caps, T-connectors, cross-connectors, phase separators, and custom profile adaptors — from ETP copper plate, with full dimensional documentation and plating certification.
Grounding Pads and Earth Terminal Blocks
Copper milled parts for earthing and grounding applications include: earth pad assemblies with multiple cable lug connection points; substation grounding terminal blocks machined from copper bar; grid-type grounding plates for equipment mounting pads; copper bonding strips and bridging connectors for equipotential bonding systems; and solar panel grounding clamp mounting plates. These components exploit copper’s combination of high conductivity (ensuring low impedance earth paths), corrosion resistance (ensuring long service life in outdoor and buried applications), and mechanical strength (ensuring secure connections under fault current conditions). All copper earth components are supplied tin-plated or silver-plated unless specified as bare copper.
Quality Control for Copper Milled Parts
Copper milled parts from Electrical Accessories India are subject to: XRF verification of copper purity (≥99.9% Cu) on every incoming batch; first-article inspection with 100% dimensional check and inspection report; in-process checks on critical dimensions at defined intervals; flatness measurement (±0.02 mm/100 mm) on busbar contact surfaces; thread gauging (6H Go/No-Go) on 100% of tapped holes; surface roughness measurement (Ra) on contact surfaces; plating thickness measurement by XRF on plated parts; and final AQL inspection to ISO 2859 Level II. Full batch traceability from copper slab/bar heat number to finished component shipping lot.
Key Features
- Grades: ETP copper C11000 (100% IACS), OF copper C10200, IS 191 Grade 1
- CNC VMC milling: workpiece to 600×400×300 mm; 3-axis and 4-axis capability
- Tolerances: ±0.01 mm on precision milled features; flatness 0.02 mm/100 mm
- Thread range: M4–M24 tapped in copper; drilling range 1.5–50 mm
- Surface finish: Ra 0.8–3.2 µm milled; Ra <0.5 µm polished/electropolished
- Busbar accessories: connectors, end caps, T-joints, phase separators
- Grounding hardware: earth pads, bonding plates, terminal blocks
- Surface treatment: tin plating, silver plating, nickel plating, BTA passivation
- ISO 9001:2015 certified; XRF purity verification on all copper
- Export to 30+ countries with full material documentation
Material Grades and International Equivalents
| India (IS) | USA (ASTM/UNS) | UK (BS EN) | Germany (DIN) | Europe (EN) | ISO | Conductivity |
|---|---|---|---|---|---|---|
| IS 191 Grade 1 | C11000 (ASTM B187) | Cu-ETP (BS EN) | E-Cu58 (DIN 1787) | EN 1977 Cu-ETP | ISO 197/1 | 100% IACS |
| IS 191 Grade 2 | C10200 (ASTM B187) | Cu-OF (BS EN) | OF-Cu (DIN 1787) | EN 1977 Cu-OF | ISO 197/1 | 100–101% IACS |
| IS 191 Grade 3 | C12200 (ASTM B187) | Cu-DHP (BS EN) | SF-Cu (DIN 1787) | EN 1977 Cu-DHP | ISO 197/1 | ~85% IACS |
Technical Specifications
| Parameter | Specification |
|---|---|
| Primary Alloy | ETP Copper C11000 (Cu-ETP) |
| Cu Purity | ≥99.9% (Cu + Ag) |
| Electrical Conductivity | 100% IACS min |
| Tensile Strength | 200–300 MPa (soft) |
| Hardness | 40–80 HB (soft annealed) |
| Max Workpiece Size | 600 × 400 × 300 mm |
| Positional Tolerance | ±0.05 mm general; ±0.01 mm precision |
| Flatness | 0.02 mm per 100 mm |
| Thread Tolerance | 6H (tapped holes) |
| Surface Finish | Ra 0.8–3.2 µm milled |
Product Types and Variants
Copper milled parts from Electrical Accessories India include: Busbar connector blocks — T-type, cross-type, and reduction connectors milled from ETP copper plate; Busbar end caps and phase separators; Earth pad assemblies with bolt holes and cable lug connections; Substation grounding terminal blocks machined from copper bar; Transformer terminal pads and LV winding connectors; Custom copper mounting plates and heat spreader blocks for power electronics; Copper contact blocks for contactors, circuit breakers, and tap-changer switches; Custom copper milled components to customer 2D drawing or 3D STEP model.
Applications in Industry
Copper milled parts serve critical applications in: Switchgear and controlgear — busbar connectors, contact blocks, and arcing contacts in LV and MV switchgear panels; Power transformers — HV and LV winding terminal pads, bushing connectors, and tap-changer contact components; Substation earthing — grounding grid connections, earth electrode connectors, and bonding pads; Solar and wind energy — inverter busbar connections, battery terminal plates, and grounding hardware; Railway and transit — third-rail connector pads, overhead line clamp plates, and earthing assemblies; Industrial motor control — power bus connections, terminal blocks, and earthing pads in motor control centres.
Manufacturing Process
- Material Procurement: ETP copper slab/bar ordered with ASTM B187 or EN 1977 MTR; purity confirmed by XRF (≥99.9% Cu).
- Blanking: Copper plate cut to blank size by saw or waterjet; burr removed.
- CNC Setup: VMC tooling prepared; high-rake copper-specific milling cutters fitted; flood coolant activated.
- Face Milling: Top and bottom faces milled for flatness and parallelism; Ra <1.6 µm achieved.
- Profile Milling: External profile milled to drawing contour; slots and pockets machined.
- Drilling: All holes drilled with sharp HSS or carbide drills; peck drilling for deep holes.
- Tapping: Threads tapped; spiral-flute taps used for copper chip evacuation.
- Deburring: Manual deburring of all edges; knife edge chamfer applied.
- Surface Finishing: Tin or silver plating per specification; passivation.
- Final Inspection: Flatness, hole position, thread gauging, surface finish; certificate issued.
Quality Standards and Certifications
Copper milled parts manufactured per: ISO 9001:2015 QMS; ASTM B187 (copper busbar and shapes); EN 1977 (copper rod and bar); IS 191 (Indian copper grades); IEC 60228 (conductors of insulated cables — conductivity reference); ISO 965 (thread tolerances); ISO 286 (dimensional tolerances); ASTM B545 (tin plating); ASTM B700 (silver plating); EN 10204 2.2 and 3.1 MTRs. RoHS compliant.
Why Choose Electrical Accessories India
Electrical Accessories India offers copper milled parts as part of a complete copper and brass component family — enabling electrical OEMs and switchgear manufacturers to source all machined metal components from one supplier. Our dedicated copper machining lines prevent contamination with ferrous metals. In-house tin and silver plating through certified partners, combined with conductivity verification (XRF purity check), ensures electrical performance of every copper component. Our VMC capability handles both small precision components (busbar connectors 20×20 mm) and large assemblies (substation terminal blocks 200×300 mm) within the same facility. Export to 30+ countries supported by full documentation packages.
Frequently Asked Questions (FAQ)
What is the difference between copper milled parts and copper turned parts?
Turned parts have rotational geometry (cylindrical, threaded, stepped) and are produced on lathes. Milled parts have prismatic geometry (flat surfaces, slots, pockets, complex 2D profiles) and are produced on milling machines or VMCs. Many copper components require both operations — these are completed on multi-axis CNC turning-milling centres at Electrical Accessories India.
What copper grade is used for busbar connectors?
ETP copper (C11000, Cu-ETP, IS 191 Grade 1) with ≥99.9% Cu and 100% IACS conductivity is used for all busbar connectors, terminal pads, and current-carrying copper milled parts. This grade ensures minimum contact resistance and maximum current-carrying capacity per cross-section.
Can you machine large copper plates for substation grounding?
Yes. Electrical Accessories India machines copper plates up to 600×400 mm on our VMCs. Larger plates can be accommodated by repositioning or step-milling. Custom earthing plates with complex hole patterns, cable lug slots, and connection pads for substation grounding grids are a standard product range.
What is the typical flatness of milled copper busbar contact surfaces?
Standard flatness for copper busbar contact surfaces: 0.02 mm per 100 mm (±20 µm over 100 mm span). This ensures uniform contact pressure when mating surfaces are bolted together, minimising contact resistance. Higher flatness (0.01 mm/100 mm) achievable on critical precision applications.
Do you supply tin-plated copper milled parts?
Yes. Electrolytic tin plating (5–15 µm, ASTM B545) is a standard finish for copper busbar connectors and terminal pads. Tin plating prevents copper oxidation, maintains low contact resistance over time, and provides consistent appearance. Silver plating (3–8 µm) for high-current or high-cycle applications. Plating thickness verified by XRF.
What hole sizes can you drill in copper plate?
Electrical Accessories India drills holes from 1.5 mm to 50 mm diameter in copper plate. Standard bolt holes: M4, M6, M8, M10, M12, M16, M20, M24. Custom hole patterns from DXF drawing. Deep holes (depth >5× diameter) drilled with peck cycle and high-pressure coolant for chip evacuation.
What is your lead time for copper milled parts?
Standard copper milled parts: 3–5 weeks from approved drawing. For simple profiles (busbar connectors with standard hole patterns): 2–3 weeks. Complex milled assemblies: 5–7 weeks. Prototype samples: 1–2 weeks.
Can you silver-plate copper busbar connectors for high-current applications?
Yes. Silver electroplating (3–8 µm ASTM B700) is standard for high-current busbar connectors, generator terminal pads, and transformer connections operating above 1000A. Silver maintains the lowest contact resistance over the service life and does not form insulating oxide layers. Silver-plated copper parts are supplied with ASTM B700 compliance certificates.
