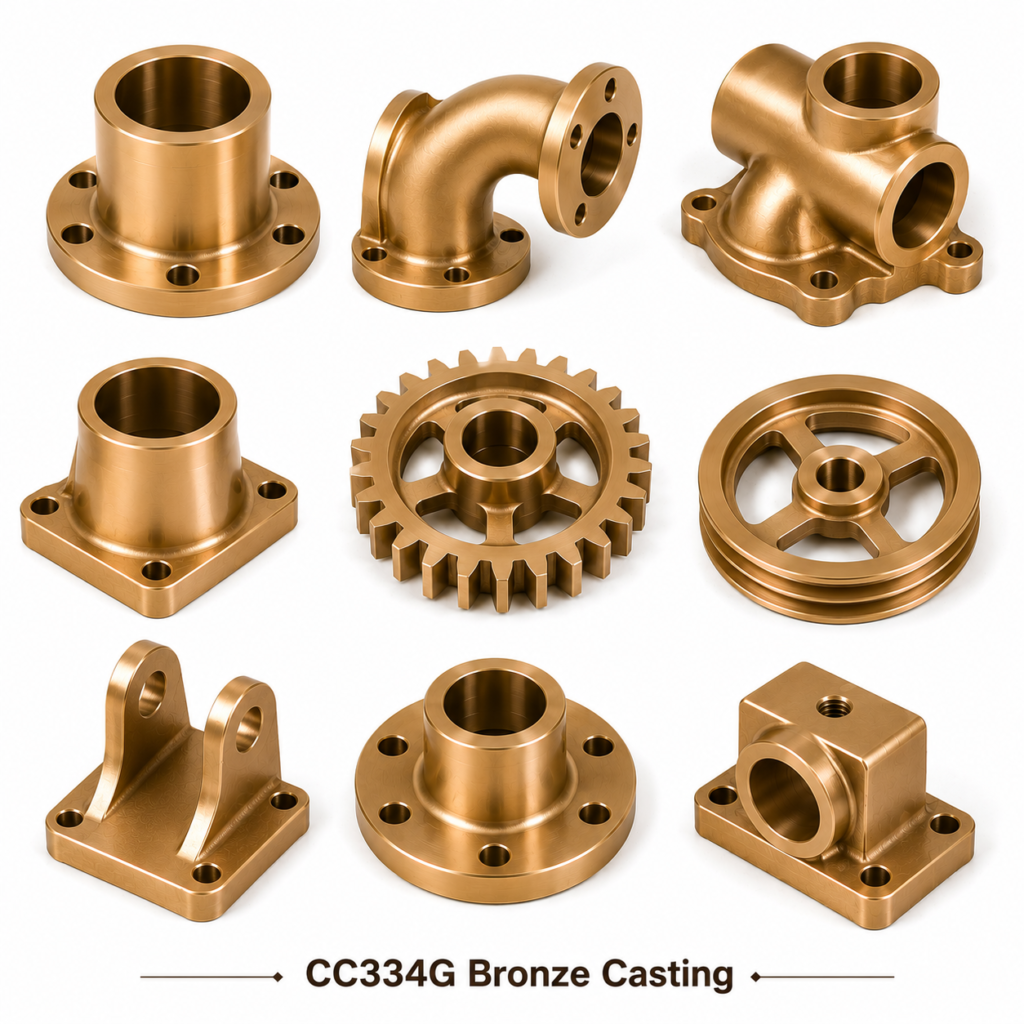

CC334G Bronze Casting
CC334G Bronze Casting – CC334G | CuAl10Ni5Fe4 | Equiv C95800 (NAB)
CC334G Bronze Casting – EN 1982 CuAl10Ni5Fe4 NAB is the European EN 1982 designation equivalent to C95800 (NAB). Tensile strength 690 MPa min. Manufactured by Electrical Accessories India with EN 10204 3.1 certificates.
Chemical Composition – CC334G / CuAl10Ni5Fe4
| Element | Min % | Max % |
|---|---|---|
| Cu | Balance | — |
| Al | 8.5 | 9.5 |
| Ni | 4.5 | 5.5 |
| Fe | 3.5 | 4.5 |
| Mn | 0.8 | 1.5 |
| Pb | — | 0.03 max |
International Equivalents
| Standard | Designation |
|---|---|
| EN 1982 | CC334G |
| ISO 428 | CuAl10Ni5Fe4 |
| ASTM/UNS | C95800 (NAB) |
| BS 1400 | NAB |
| DIN 1714 | CuAl10Ni5Fe4 |
| IS 318 | Gr.4 |
| JIS H5111 | — |
Properties (EN 1982)
| Property | Value |
|---|---|
| Tensile Strength | 690 MPa min |
| Yield Strength | 310 MPa min |
| Elongation | 15% min |
| Hardness | 160–210 HB |
Price: US$ 16.80/kg
US$ 16.80 per kilogram, CIF US/EU Port.
