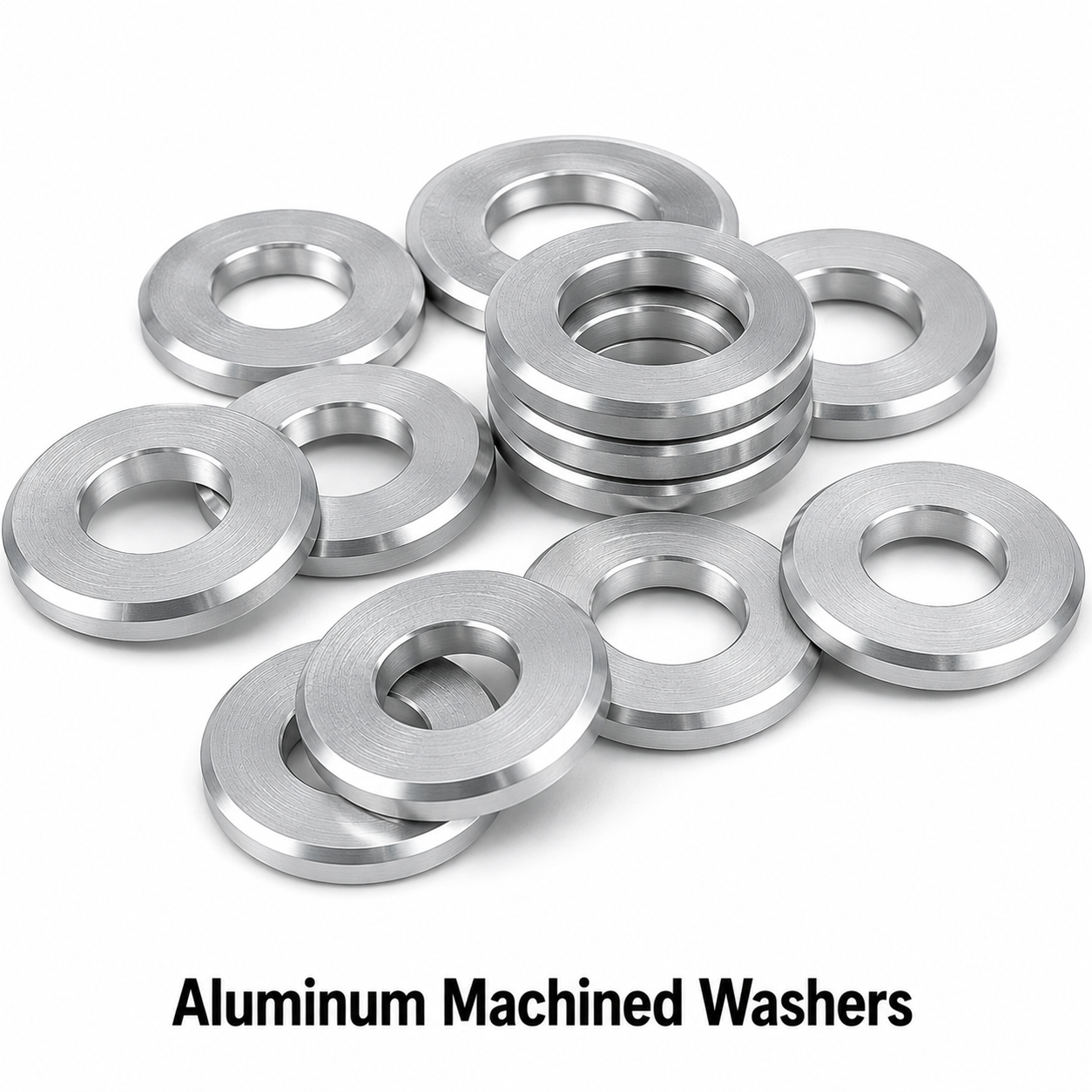

Aluminum Machined Washers

Aluminum Machined Washers — CNC Turned Precision Washers for Electrical and Structural Applications

Aluminum Machined Washers are precision-turned or CNC-milled fastener components manufactured from aluminum alloys including Al 6061-T6, Al 6082-T6, Al 5083-H111, and EC Grade 1350, engineered for load distribution, electrical isolation support, thermal spacer, and mechanical clamping functions. Also referenced as aluminum precision washers, aluminum turned washers, CNC aluminum washers, or aluminum flat disc components, these parts serve as critical interface elements in electrical switchgear assemblies, transformer mounting hardware, cable tray support systems, bus bar joint assemblies, and industrial machinery. Electrical Accessories India manufactures aluminum machined washers to customer drawings, international dimension standards (ISO 887, DIN 125, DIN 9021), and custom specifications for OEM manufacturers, EPC contractors, power utilities, and distributors globally. Price: US$ 9.80/Kilogram

Product Overview

Design and Dimensional Standards for Machined Aluminum Washers

Aluminum machined washers are produced by CNC turning from extruded bar stock or plate material, delivering dimensional tolerances of ±0.05 mm on inner diameter (ID) and outer diameter (OD), and ±0.1 mm on thickness — far superior to stamped or pressed washers. Key dimensional parameters include: inner bore diameter (ID) matched to bolt or stud shank; outer diameter (OD) determining bearing surface area and load distribution footprint; thickness determining stack height and compression under torque; and chamfer or countersink features as required. Standard machined washer profiles include flat plain washers, chamfered washers (DIN 125B), thick/heavy-duty washers, and shoulder washers. Surface finish (Ra) is typically 1.6–3.2 µm (N7–N8) on bearing faces, achieved by fine turning with carbide tooling on CNC lathe. Tighter tolerances (±0.01 mm) and finer finishes (Ra 0.8 µm, N6) are available for precision instrument and aerospace-grade applications on CNC machining centres.

Alloy Selection: 6061, 6082, 5083, and 1350

Aluminum machined washers are produced in multiple alloy grades based on mechanical, electrical, and corrosion requirements. Al 6061-T6 (UNS A96061, equivalent to BS L113, IS 65032) offers tensile strength 310 MPa, yield strength 276 MPa, and Brinell hardness 95 HB — the most widely used grade for structural and mechanical washers in switchgear, panel boards, cable management, and industrial assemblies. Al 6082-T6 (EN AW-6082, equivalent to BS HE30) offers slightly higher strength (tensile 340 MPa) and is preferred in European-specification projects. Al 5083-H111 (UNS A95083) provides superior corrosion resistance in marine and coastal electrical installation environments. EC Grade 1350 (≥99.5% Al, ≥61% IACS conductivity) is used for washers in electrical bus bar joints where the washer is part of the current-carrying assembly and conductivity is required, not just mechanical support. The alloy choice directly affects the washer’s weight, machinability, anodizing response, and compatibility with adjacent metals.

Surface Treatment Options for Aluminum Washers

As-machined aluminum washers exhibit a bright metallic finish but develop native Al₂O₃ oxide within hours of exposure. For functional applications, surface treatment is essential. Anodizing (Type II, 10–20 µm per MIL-A-8625 / BS 1615) provides hard, electrically insulating oxide layer with excellent corrosion resistance, available in natural (clear), black, and hard-anodized (Type III, 25–50 µm) variants. Hard anodizing (Type III) increases surface hardness to 400–600 HV (equivalent to case-hardened steel), eliminating wear and fretting concerns in bolted assemblies subject to vibration. Tin plating (ASTM B545, 5–15 µm) is applied to 1350-grade electrical washers to ensure low-resistance contact at bus bar joints. Zinc chromate or powder coating is available for outdoor and marine environments. For cosmetic or RoHS-compliant applications, clear alodine (chromate conversion coating) provides corrosion resistance without affecting electrical conductivity.

Dimensional Range and Custom Specifications

Standard production range for aluminum machined washers at Electrical Accessories India: ID (bore) from 3 mm to 100 mm; OD from 8 mm to 200 mm; thickness from 1 mm to 30 mm. Non-standard combinations, eccentric washers, washers with keyways, slotted washers, and custom profiles are produced to customer drawings within CNC capability. Washers for bus bar joints (flat face, close tolerance ID) are produced for M8 to M48 bolt sizes. Switchgear mounting washers with integral spacer shoulders or stepped OD profiles are turned from bar stock as single-piece components, eliminating the need for separate spacer-washer assemblies. Large-diameter washers (OD 100–200 mm) are produced from plate material by face milling and boring on CNC machining centres. Production runs from single prototypes to 50,000+ pieces/month with no additional tooling charges for dimensions within standard CNC capability.

Aluminum Flat Washers vs. Spring Washers vs. Locking Washers

Aluminum machined flat washers are distinct from spring washers (split lock washers) and toothed locking washers in both function and manufacture. Flat machined washers distribute bolt clamping load over a defined bearing area, preventing local crushing of softer substrate materials (GRP enclosures, aluminum profiles, polymer cable trays). Spring lock washers (DIN 127) are formed from strip and provide axial elastic force to resist loosening under vibration — aluminum spring washers are available in 6061 for use with aluminum fasteners to prevent galvanic corrosion. Toothed lock washers (DIN 6797) grip the substrate surface to prevent rotation. For electrical buswork, flat aluminum washers are standard practice; for switchgear exposed to vibration (rail traction, offshore), spring or lock washer combinations are specified per IEC 60439 and customer engineering standards.

Aluminum Washer Grades and International Equivalents

Understanding alloy equivalence is critical for procurement from multiple sources. The following equivalencies apply to washers produced by Electrical Accessories India:

Tolerances and Quality Classes

Machined aluminum washers are supplied to standard tolerance grades per ISO 286-1: h9/h11 for OD, H9/H11 for bore ID, and free tolerance (±0.1 mm) on thickness unless otherwise specified. Flatness is maintained within 0.05 mm/100 mm for plain turned washers; tight flatness (0.01 mm) is achievable by grinding on surface grinder. Parallelism of bearing faces: standard 0.05 mm, precision 0.01 mm. Burr-free edges are ensured by deburring tools and compressed-air blow-off after turning. For critical electrical applications (bus bar joints at >1,000A), contact surface roughness is verified by profilometer; records are maintained per ISO 9001:2015.

Related Fastener Components and Linked Parts

Aluminum machined washers are typically used with aluminum hex bolts (Al 6061), aluminum hex nuts, aluminum studs, and aluminum threaded rods in all-aluminum fastener assemblies for cable tray, switchgear, and bus bar applications where galvanic corrosion between dissimilar metals must be eliminated. They also interface with copper bus bars (requiring tin-plated or bi-metal interface washers), steel threaded rod (requiring anodized or coated aluminum washers with isolating sleeves), and GRP/FRP structural profiles.

Key Features

• CNC turned to ±0.05 mm tolerance on ID/OD for precision fit in machined assemblies
• Multiple alloy grades: 6061-T6, 6082-T6, 5083-H111, EC 1350 — matched to application
• Full surface treatment range: anodized (Type II/III), tin plated, alodine, powder coated
• ID range 3–100 mm, OD range 8–200 mm, thickness 1–30 mm
• Custom profiles: shouldered, stepped, chamfered, slotted, eccentric
• ISO 9001:2015 certified manufacturing with material traceability to mill certificates
• ROHS-compliant surface treatments available
• Low MOQ: prototypes to high-volume production without dedicated tooling charges

Precision and Dimensional Accuracy

CNC turning on modern 2-axis and live-tool lathes enables concentricity of ID to OD within 0.03 mm TIR (Total Indicator Runout), ensuring accurate load distribution and eliminating eccentric bearing stress in bolted joints. Batch SPC (Statistical Process Control) is applied to production batches over 500 pieces to monitor dimensional drift and maintain Cpk ≥ 1.33 on critical dimensions.

Electrical Grade Aluminum Washers for Bus Bar Joints

For high-current bus bar applications (400A–6,300A), EC Grade 1350 aluminum washers are specified where the washer forms part of the current path. Contact resistance at the washer-busbar interface is minimized by flat machined faces (Ra ≤ 0.8 µm), controlled OD/ID tolerances, and tin plating of contact surfaces. Joint resistance is verified by micro-ohmmeter measurement at incoming inspection per IEC 61439-1 requirements for LV switchgear assemblies.

Hard Anodized Washers for High-Wear Applications

Hard anodized (Type III) aluminum machined washers with 40–50 µm oxide layer achieve surface hardness of 400–600 HV and are used in rotating equipment clamp interfaces, cable management systems subject to vibration, and rail traction enclosures. The hard oxide layer also provides electrical isolation (breakdown voltage up to 2,000V depending on thickness and alloy), making hard-anodized aluminum washers a cost-effective substitute for ceramic or PTFE washers in medium-voltage isolation applications.

Marine and Corrosive Environment Grades

For offshore platforms, coastal power substations, and chemical plant electrical installations, 5083-H111 aluminum machined washers with hard anodize or powder coat finish provide the best corrosion resistance among aluminum alloys — exceeding 6061/6082 in salt spray testing (ISO 9227) by 3–5× due to the higher magnesium content. These washers are specified in NORSOK M-001 compliant material selections and offshore platform electrical standard EN 60079-14 installations.

Compliance with Standards

Aluminum machined washers are manufactured to comply with DIN 125 (plain washers), DIN 9021 (large OD/fender washers), ISO 887 (washer series tolerances), and BS 4320 (metric flat washers). Custom drawings and OEM specifications are accommodated with full PPAP (Part Production Approval Process) or FAI (First Article Inspection) reports on request.

Technical Specifications

Raw Material Grade Comparison Table

Product Types and Variants

Applications in Industry

Manufacturing Process

Aluminum machined washers are produced by CNC turning from aluminum bar stock (extruded round bar) or by CNC milling/boring from plate material for large-OD washers. Process flow: (1) Material receipt and incoming inspection — mill test certificate (MTC) verification of alloy, temper, and mechanical properties; (2) Bar stock cut-off on CNC bar-feed lathe to programmed washer thickness + machining stock; (3) CNC turning — OD, ID (bore), and face operations in one or two setups on CNC turning centre with carbide tooling, achieving Ra 1.6–3.2 µm; (4) Deburring — mechanical deburring tool removes edge burrs; (5) Batch inspection — CMM (Coordinate Measuring Machine) or micrometer/plug gauge inspection of ID, OD, thickness, and flatness per inspection plan; (6) Surface treatment — anodizing, tin plating, or alodine per order specification; (7) Post-treatment inspection — coating thickness measurement (eddy current gauge for anodize, X-ray fluorescence for tin plate); (8) Marking and packaging — batch identification, customer part number labelling, and anti-corrosion packaging (polybag + desiccant for tin-plated washers). Production capacity: 50,000–200,000 washers/month depending on size range and treatment.

Quality Standards and Certifications

Why Choose Electrical Accessories India?

• Alloy Flexibility — EC 1350, 6061, 6082, and 5083 available from certified sources with full material traceability
• Precision CNC Turning — ±0.05 mm standard tolerance; ±0.01 mm precision grade on request
• Complete Surface Treatment In-House — anodizing, tin plating, alodine, and powder coating at our Gujarat facility
• ISO 9001:2015 Certified — full documentation: inspection reports, MTCs, and COAs supplied with every batch
• Custom Capability — no minimum tooling charge for CNC-standard dimensions; prototypes welcomed
• Global Export — regular shipments to USA, UK, Australia, Middle East, Southeast Asia, Africa
• Competitive Pricing — US$ 9.80/Kilogram for standard aluminum alloy machined washers

Frequently Asked Questions

Q1. What is the difference between a machined aluminum washer and a stamped aluminum washer?

A machined washer is CNC-turned from bar stock, achieving ±0.05 mm tolerance on bore and OD, Ra 1.6 µm face finish, and true flatness. A stamped washer is punched from sheet, giving ±0.2–0.5 mm tolerance, rough sheared edges, and variable flatness. For precision assemblies, bus bar joints, and electrical applications, machined washers are specified. Stamped washers suit high-volume, non-critical general hardware.

Q2. Can you supply EC Grade 1350 aluminum washers for bus bar joints?

Yes. EC Grade 1350 aluminum machined washers with tin-plated contact faces are produced for bus bar joint assemblies up to 6,300A. The washer bore matches the bolt diameter, and the flat machined face ensures low-resistance contact. Material conductivity certificates (≥61% IACS) are provided.

Q3. What anodizing specification applies to your washers?

Standard anodizing is Type II (sulfuric acid), 10–20 µm, per MIL-A-8625 or BS 1615. Hard anodizing is Type III, 25–50 µm, with hardness 400–600 HV. Coating thickness is measured by eddy current gauge and reported in the inspection certificate.

Q4. What is the minimum order quantity?

For standard sizes (M6 to M24 bolt range): MOQ 100 pieces. For large or custom sizes: MOQ 25 pieces. Sample quantities (5–10 pieces) for qualification are available for OEM and EPC procurement teams.

Q5. Can you match a DIN 125 or ISO 887 dimension table?

Yes. We produce washers to full DIN 125 (Series A and B), DIN 9021, and ISO 887 dimension tables in all listed alloys and surface treatment options. Please specify the bolt size (M4 to M48), washer series, alloy, and surface treatment when enquiring.

Q6. Are PPAP or FAI reports available?

Yes. First Article Inspection (FAI) reports with dimensional data, material certificates, and surface treatment results are standard for new part approval. Full PPAP (Level 2 or 3) is available for automotive or defense procurement where required.

Q7. Do you supply washers for outdoor / corrosive environments?

For outdoor electrical substations, offshore platforms, and coastal environments, 5083-H111 alloy with hard anodize (Type III) or two-coat powder coating (epoxy primer + polyester topcoat, 60–80 µm DFT) is recommended, providing 1,000+ hours salt spray resistance per ISO 9227.

Q8. What is the delivery lead time for standard sizes?

Standard sizes (M6–M24, DIN 125) in 6061-T6 as-machined or anodized: 7–14 days ex-works. Large sizes, custom profiles, or special surface treatments: 2–4 weeks. Express dispatch within 5 working days is available for in-stock standard items.

Q9. Do you supply aluminum washers with electrical insulation?

Hard anodized aluminum washers provide limited electrical insulation (500–2,000V breakdown depending on coating thickness and alloy). For higher isolation requirements, composite (nylon or PTFE) washers are recommended. Anodized aluminum washers with additional PTFE sleeve inserts are produced for medium-voltage applications.

Q10. What packaging is standard for export shipments?

Aluminum machined washers are packed in polybags with batch labels (part number, lot number, quantity, alloy, surface treatment), placed in cardboard trays within corrugated master cartons. For tin-plated washers, vacuum-sealed polybags with silica gel desiccant packs are used to prevent oxidation during sea freight. Custom marking and labelling are accommodated per customer requirements.

Equivalent Terms in Other Languages

Related Aluminum Products

• Aluminum Machined Washers
• Aluminum Pressed Washers
• Aluminum Screw Machine Parts
• Aluminum CNC Machined Components
• Aluminum Terminal Bars
• Aluminum Transformer Lugs (Tubular)
• Aluminum Manifold Blocks (Milled)
• Aluminum Cable Lugs
• Aluminum Deep Drawn Parts

Get a Quote — Aluminum Machined Washers

Specify bolt size (M_), washer series (DIN 125A/B, DIN 9021, or custom OD/ID/thickness), alloy grade (6061/6082/5083/1350), surface treatment, and quantity. For bus bar applications, provide current rating and bus bar material (Al or Cu).

Price: US$ 9.80/Kilogram | MOQ: 100 pcs (standard sizes) | Gujarat, India | Global Export
