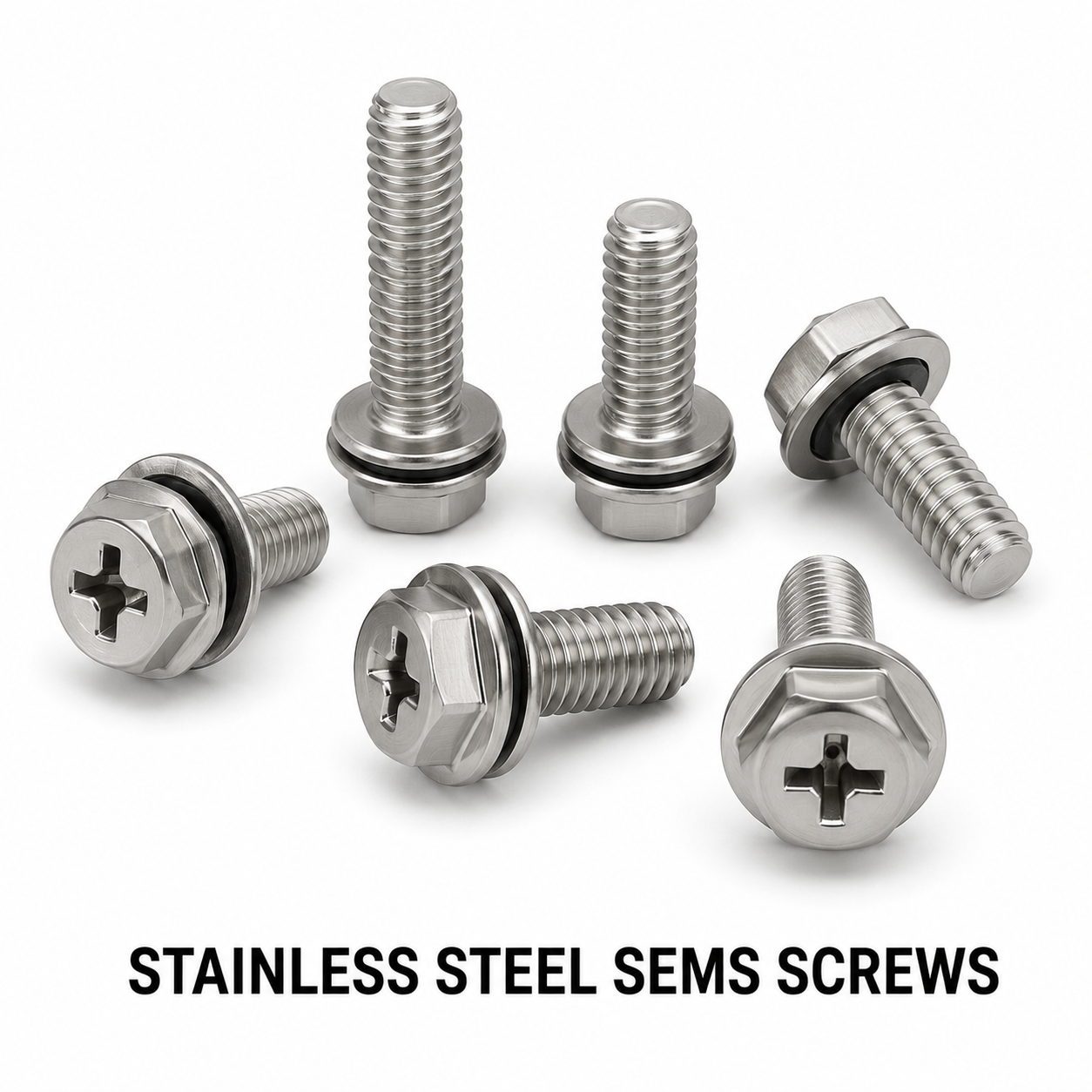

Stainless Steel SEMS Screws
Stainless Steel SEMS Screws — Pre-Assembled Captive Washer Fasteners
Stainless Steel SEMS Screws (also known as captive washer screws, screw and washer assemblies, or pre-assembled washer screws) are engineered fasteners combining a machine screw with a permanently captivated washer, eliminating loose washer handling during assembly. Manufactured from Grade A2 (304) and A4 (316) stainless steel, these fasteners are widely used in electrical panels, switchgear enclosures, control cabinets, and outdoor electrical equipment requiring corrosion resistance and assembly efficiency. Price: US$ 10.90/Kilogram.
Product Overview
What Are SEMS Screws?
SEMS is an acronym derived from the manufacturing concept of “Screw and washer asSEMblies.” The washer is threaded onto the screw shank before thread rolling, mechanically trapping it behind the thread crest. The washer cannot be removed without destructive force, ensuring it remains captive during transport, installation, and maintenance. This design eliminates lost washers, speeds up assembly lines, and improves joint consistency across high-volume production environments such as electrical panel manufacturing.
Material Grades and Corrosion Resistance
SEMS screws for electrical and outdoor applications are predominantly manufactured from austenitic stainless steel: A2-70 (Grade 304, UNS S30400) for general-purpose corrosion resistance and A4-80 (Grade 316, UNS S31600) for marine, coastal, and chemically aggressive environments. The molybdenum addition in A4/316 significantly improves resistance to chloride pitting, making it the preferred grade for outdoor switchgear, solar mounting systems, and coastal cable management. Both grades are non-magnetic in the annealed condition and comply with EU RoHS and REACH regulations.
Head and Drive Type Combinations
Stainless SEMS screws are available in a wide range of head geometries: pan head, truss head, hex head (with hexagonal cap), countersunk (flat), and flange head variants. Drive configurations include Phillips (cross-recess), Pozidrive (PZ), slotted, Torx (TX), and combination drives. For electrical enclosures, pan head Phillips SEMS M4 and M5 are the most common, while hex SEMS M6 to M8 are standard for heavy-duty panel mounting rails and DIN rail fixings.
Captive Washer Types
The captive washer in a SEMS assembly can be flat (plain), spring (split lock), internal tooth, external tooth, or conical (belleville). For electrical panel applications, internal tooth lock washer SEMS and external serrated flange SEMS are preferred for their vibration resistance and electrical continuity at ground connections. Flat washer SEMS are used where load distribution under the head is the primary requirement. The washer material matches the screw grade (A2 with A2 washer, A4 with A4 washer) to prevent galvanic incompatibility.
Thread Standards and Sizing
Stainless SEMS screws are manufactured to metric coarse thread (ISO 68-1) in sizes M3 × 0.5 through M10 × 1.5, with lengths from 6 mm to 50 mm. Pitch diameter and thread tolerances conform to ISO 4759-1 (class 6g for external threads). For export to North American markets, unified coarse thread (UNC) #6-32 through 3/8-16 SEMS are available. Thread engagement length and torque specifications depend on mating material (steel nut, tapped aluminum, or through-hole in sheet metal).
Applications in Electrical and Industrial Assembly
SEMS screws are the fastener of choice for: electrical panel component mounting (MCBs, contactors, relays), DIN rail endstop and bracket fixing, grounding lug attachment to copper bus bars, terminal block strip anchoring, cable gland plate mounting, junction box cover fastening, switchgear door and hinge assembly, solar panel frame fastening, and industrial control cabinet rack mounting. Their captive washer eliminates the risk of loose metal hardware falling into live electrical assemblies — a critical safety consideration in panel building.
Surface Finish and Passivation
Standard stainless steel SEMS screws are supplied with a natural mill finish after thread rolling. Passivation per ASTM A967 or AMS 2700 (nitric acid or citric acid bath) removes free iron contamination from the surface, enhancing the native chromium oxide passive layer and improving corrosion resistance. For enhanced aesthetics or additional protection in marine environments, electropolishing (EP) is available, reducing surface roughness Ra and improving corrosion test performance in 5% NSS salt spray per ISO 9227.
Key Features
- Captive pre-assembled washer — eliminates loose washer handling and improves assembly speed
- A2 (304) and A4 (316) stainless steel — corrosion resistance for indoor, outdoor, and marine environments
- Full thread range M3 to M10, lengths 6–50 mm
- Multiple head types: pan, truss, hex, countersunk, flange
- Multiple drive types: Phillips, Pozidrive, Torx, slotted, combination
- Multiple washer types: flat, split lock, internal tooth, external tooth, conical
- Complies with DIN 6900, ISO 8753, ASTM F593
- RoHS and REACH compliant — no restricted substances
- Passivated per ASTM A967 for enhanced corrosion resistance
- Suitable for electrical, solar, marine, food processing, and outdoor enclosure applications
Captive Washer Advantage in Electrical Panels
In high-density electrical panel assembly, dropped washers are a recurring safety and quality issue — a metal washer falling across live busbars causes arcing and short circuits. SEMS screws eliminate this failure mode entirely. Studies in automated assembly environments show SEMS fasteners reduce assembly time per joint by 20–35% compared to separate screw-and-washer combinations, with corresponding reductions in torque variability and installation errors during quality checks.
Corrosion Performance A2 vs A4
A2-70 (304 SS) passes 72-hour 5% neutral salt spray per ISO 9227 with no red rust. A4-80 (316 SS) passes 200+ hours NSS, with pitting resistance equivalent number (PREN) of approximately 25.6 vs 18.5 for A2. For applications within 5 km of coastline, in humid tropical environments, or where chloride-bearing cleaning agents are used, A4 grade is mandatory. A2 is adequate for dry indoor electrical panels and protected outdoor enclosures with powder-coated housings.
Torque and Clamping Data
Recommended installation torques for stainless SEMS in tapped steel (property class 4.8 equivalent nut): M3 = 0.5 Nm, M4 = 1.2 Nm, M5 = 2.5 Nm, M6 = 4.3 Nm, M8 = 10.5 Nm, M10 = 21 Nm. When fastening into tapped aluminum, reduce torque by 25–30% to prevent thread stripping. Spring lock washer SEMS require slightly higher torque to fully compress the washer before the joint achieves full clamping force — consult grade-specific torque charts provided with each shipment.
Packaging and Traceability
Supplied in bulk polyethylene bags, cardboard boxes, or resealable ESD-safe trays for electronic assembly environments. Each batch is accompanied by a material test report (MTR) confirming chemical composition (C, Cr, Ni, Mo, Mn, Si, P, S) and mechanical properties (Rm, Rp0.2, A%). Heat number traceability is maintained from mill certificate through finished fastener lot. Custom packaging — plastic tray, blister, or kit-pack with mixed sizes — is available for panel builder customers with BOM-based ordering.
Drive Recess Geometry and Tool Compatibility
Phillips recess depth and width conform to ISO 8764-1. Pozidrive (PZ) recesses per DIN 9065 require PZ-specific bits — using Phillips bits in PZ recesses causes cam-out. Torx (TX) recesses per ISO 10664 offer the highest torque transmission efficiency with minimal cam-out risk, preferred for automated screwdriving systems. All drive recesses are compatible with standard IEC/ISO power tool and manual screwdriver bit specifications. Bit size recommendations: M3–M4 = PH1/PZ1/TX10; M5–M6 = PH2/PZ2/TX20; M8–M10 = PH3/PZ3/TX25.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Grades | A2-70 (SS 304), A4-80 (SS 316) |
| Thread Standard | ISO 68-1 Metric Coarse, UNC (on request) |
| Size Range | M3 × 0.5 to M10 × 1.5 |
| Length Range | 6 mm to 50 mm |
| Head Types | Pan, Truss, Hex, Countersunk, Flange |
| Drive Types | Phillips, Pozidrive, Torx, Slotted, Combination |
| Washer Types | Flat, Split Lock, Internal Tooth, External Tooth, Conical |
| Thread Tolerance | 6g (ISO 4759-1) |
| Tensile Strength (A2-70) | 700 N/mm² minimum |
| Tensile Strength (A4-80) | 800 N/mm² minimum |
| Yield Strength (A2-70) | 450 N/mm² minimum (0.2% proof) |
| Yield Strength (A4-80) | 640 N/mm² minimum (0.2% proof) |
| Elongation | ≥ 8% (A4-80), ≥ 10% (A2-70) |
| Hardness | ≤ HV 250 (Vickers) |
| Surface Finish | Passivated per ASTM A967 / AMS 2700 |
| Operating Temperature | -50°C to +300°C (A2), -60°C to +400°C (A4) |
| Salt Spray Resistance | 72 hr (A2), 200+ hr (A4) per ISO 9227 |
| Compliance | RoHS, REACH, ISO 3506 |
Stainless Steel Grade Comparison
| Property | A2-70 (SS 304) | A4-80 (SS 316) |
|---|---|---|
| UNS Number | S30400 | S31600 |
| Chromium % | 18.0–20.0 | 16.0–18.0 |
| Nickel % | 8.0–10.5 | 10.0–14.0 |
| Molybdenum % | — | 2.0–3.0 |
| Carbon % (max) | 0.08 | 0.08 |
| PREN (Pitting Resistance) | ~18.5 | ~25.6 |
| Magnetic | Non-magnetic (annealed) | Non-magnetic (annealed) |
| Chloride Resistance | Moderate | Good |
| Recommended Use | Indoor panels, protected enclosures | Marine, coastal, chemical environments |
| Approx. Price Indicator | Standard | +15–20% premium |
International Material Equivalents
| Standard | A2 (304) Equivalent | A4 (316) Equivalent |
|---|---|---|
| Indian Standard (IS) | IS 6911 Grade 04Cr18Ni10 | IS 6911 Grade 04Cr17Ni12Mo2 |
| ISO / EN | EN 1.4301 / X5CrNi18-10 | EN 1.4401 / X5CrNiMo17-12-2 |
| ASTM / UNS | ASTM A193 B8 / S30400 | ASTM A193 B8M / S31600 |
| BS (UK) | BS 970 316S31 | BS 970 316S33 |
| DIN (Germany) | DIN 1.4301 | DIN 1.4401 |
| JIS (Japan) | JIS SUS 304 | JIS SUS 316 |
Product Types and Variants
| Type | Head Style | Washer Type | Common Sizes | Typical Application |
|---|---|---|---|---|
| Pan Head Phillips SEMS | Pan | Flat or Spring Lock | M3–M6 × 6–25 mm | PCB mounting, light panel components |
| Pan Head Pozidrive SEMS | Pan | Internal Tooth | M4–M6 × 8–30 mm | Electrical enclosure assembly |
| Hex Head SEMS | Hexagonal | Flat or Conical | M5–M10 × 10–50 mm | Panel frame, DIN rail bracket |
| Countersunk SEMS | Flat/CSK | Flat | M3–M8 × 6–35 mm | Flush-mount panel covers |
| Truss Head SEMS | Truss (large) | Flat | M4–M8 × 8–30 mm | Sheet metal with larger bearing area needed |
| Torx SEMS | Pan or Hex | Internal Tooth | M3–M8 × 6–35 mm | Automated assembly lines, tamper resistance |
| Flange Head SEMS | Hex Flange | Integral serrated flange | M5–M10 × 12–40 mm | Ground connections, high-vibration panels |
Applications in Industry
| Industry Sector | Application | Recommended Grade |
|---|---|---|
| Electrical Panel Manufacturing | MCB, contactor, relay, terminal block mounting; DIN rail fixing | A2-70 |
| Switchgear and MCC | Busbar support, panel door hinges, cover fastening | A2-70 / A4-80 |
| Solar PV Systems | Module frame fastening, junction box covers, mounting rail fixings | A4-80 |
| Marine and Offshore | Enclosure assembly, cable gland plate fixing, junction box covers | A4-80 |
| Food and Beverage Processing | Hygienic panel enclosures, washdown-rated equipment | A4-80 |
| Telecommunications | ODF rack mounting, equipment chassis, outdoor cabinet | A2-70 / A4-80 |
| Railway and Rolling Stock | Control panel components, vibration-resistant fastening | A4-80 |
| EPC and Utility Projects | Substation panel assembly, outdoor distribution boxes | A2-70 / A4-80 |
Manufacturing Process
Stainless steel SEMS screws are produced through a cold heading and thread rolling process. Wire rod of the specified stainless grade (conforming to SFA/QW or IS chemical composition limits) is drawn to precise diameter tolerances before being cut to blank length. Cold heading forms the head geometry without heat, preserving work-hardening and maintaining austenitic microstructure. The captive washer (separately stamped from stainless sheet) is threaded onto the shank prior to thread rolling — the thread-rolling process creates the crest geometry that permanently traps the washer. Thread rolling (as opposed to thread cutting) produces superior surface finish, compressive residual stress in thread roots, and higher fatigue strength. Post-rolling, screws undergo passivation in nitric or citric acid baths per ASTM A967, followed by rinse and drying. Dimensional inspection is performed 100% for critical dimensions (head height, thread pitch diameter, drive recess depth) on statistical sampling per AQL 1.0 to 2.5 per ANSI/ASQ Z1.4.
Quality Standards and Certifications
| Standard / Certification | Scope |
|---|---|
| ISO 3506-1 / -2 | Mechanical properties of stainless steel fasteners |
| DIN 6900 | SEMS screw and washer assembly dimensions |
| ISO 8753 | Screw and washer assemblies — dimensions |
| ASTM F593 | Stainless steel bolts, hex cap screws, studs |
| ASTM A967 | Passivation treatment for stainless steel |
| ISO 9227 | Neutral salt spray corrosion test |
| ISO 4759-1 | Thread tolerance and dimensional inspection |
| RoHS 2011/65/EU | Restriction of hazardous substances compliance |
| REACH (EC 1907/2006) | No SVHCs above threshold levels |
| ISO 9001:2015 | Quality management system (manufacturing site) |
Why Choose Electrical Accessories India
- Integrated manufacturing: In-house cold heading, thread rolling, washer stamping, and passivation under one roof ensures batch-to-batch consistency.
- Material traceability: Full MTR traceability from wire rod mill certificate to finished fastener lot — critical for EPC and utility project documentation.
- Grade breadth: Both A2-70 and A4-80 stainless SEMS available in all head/drive/washer combinations from stock or short lead time production.
- Custom configurations: Non-standard lengths, mixed-kit packaging, and BOM-based supply to panel builder specifications.
- Export experience: Supplied to electrical OEMs and panel builders in UAE, UK, Australia, South Africa, Singapore, and Malaysia.
- Competitive pricing: Direct manufacturer pricing with no distributor markup — US$ 10.90/Kilogram for stainless steel items.
- Quality documentation: EN 10204 3.1 test certificates, REACH and RoHS declarations provided standard with each order.
Frequently Asked Questions
What does SEMS stand for in SEMS screws?
SEMS is derived from “Screw and washer asSEMblies.” It describes the manufacturing method where a washer is placed on the screw shank before thread rolling, permanently trapping it as a captive component. The acronym is widely used in the fastener industry across ISO, DIN, and ASTM standards.
What is the difference between A2 and A4 stainless steel SEMS screws?
A2 (Grade 304) contains 18% Cr and 8–10% Ni with no molybdenum, offering good general corrosion resistance. A4 (Grade 316) adds 2–3% molybdenum, significantly improving resistance to chloride-induced pitting and crevice corrosion. A4 is specified for marine, coastal, food processing, and chemical environments. A2 is adequate for dry or semi-exposed indoor electrical panels.
Can SEMS screws be used for grounding connections in electrical panels?
Yes. Internal tooth or external serrated SEMS screws provide an effective low-resistance electrical contact between the screw head and panel metalwork, supporting equipotential bonding. The serrated washer bites through surface coatings (paint, anodize) to ensure bare metal contact. Verify that contact resistance meets IEC 60439 or the applicable panel standard requirements.
What torque should be applied when installing M5 stainless SEMS screws into tapped aluminum?
For M5 stainless SEMS into tapped aluminum (6061 or equivalent), recommended torque is 1.7–2.0 Nm — approximately 30% lower than the standard steel-on-steel value of 2.5 Nm — to prevent thread stripping of the softer aluminum tapped hole. Use a calibrated torque screwdriver and avoid impact drivers for aluminum tapped assemblies.
Are stainless steel SEMS screws magnetic?
Austenitic stainless steel (304 and 316) is nominally non-magnetic in the annealed condition. However, cold heading and thread rolling induce work hardening and partial martensite transformation, making finished SEMS screws slightly magnetic (permeability μr of 1.05–2.0). For applications requiring fully non-magnetic fasteners (MRI rooms, sensitive instruments), a retained austenite grade such as 316LN or non-magnetic certification at below μr 1.01 must be specified.
What is the minimum order quantity for stainless steel SEMS screws?
Minimum order quantity is typically 5 kg per size/type combination for standard stainless SEMS in M3–M8 sizes. For M10 and custom configurations, minimum order is negotiable. Mixed-size orders (BOMs) can be accommodated with an overall minimum of 25 kg. Contact Electrical Accessories India for project-specific pricing and packing requirements.
Do you supply SEMS screws with Torx drive for automated assembly?
Yes. Torx (TX) drive SEMS in pan head and hex head configurations are available in A2 and A4 grades for M3 to M8. Torx drive provides superior torque transmission efficiency with minimal cam-out, making it the preferred drive type for automated screwdriving stations in panel manufacturing. TX10 (M3–M4), TX20 (M5–M6), and TX25 (M8) bit sizes are standard.
Can stainless SEMS screws be supplied with REACH and RoHS certificates?
Yes. All stainless SEMS screws manufactured by Electrical Accessories India are supplied with REACH SVHC declaration (no restricted substances above 0.1% w/w threshold) and RoHS 2011/65/EU compliance declaration as standard. EN 10204 3.1 mill test certificates covering chemical composition and mechanical properties are available on request with a nominal documentation fee.
What is the lead time for stainless SEMS screws?
Standard sizes (M4, M5, M6 in pan head Phillips or Pozidrive, A2-70) are typically available from stock with 1–2 week dispatch. Non-standard sizes, A4 grade, or custom configurations carry 3–5 week manufacturing lead time. Consult the sales team for project schedule planning on large-volume EPC or OEM orders.
Are UNC thread stainless SEMS available for North American projects?
Yes. UNC (Unified Coarse) thread SEMS in A2 and A4 stainless, sizes #6-32 through 3/8-16, are produced to ASME B18.13 and ASTM F593. These are available on indent basis with 4–6 week lead time. Common sizes for electrical panel export to the USA and Canada are #10-32 and #10-24 pan head Phillips with flat washer in A2-70.
Multilingual Equivalent Terms
| Language | Term 1 | Term 2 | Term 3 |
|---|---|---|---|
| Spanish | Tornillos SEMS de acero inoxidable | Tornillos con arandela cautiva | Tornillos con arandela preinstalada |
| Russian | Винты SEMS из нержавеющей стали | Винты с несъёмной шайбой | Крепёжные элементы с захватной шайбой |
| French | Vis SEMS en acier inoxydable | Vis à rondelle captive | Assemblages vis-rondelle inox |
| Portuguese | Parafusos SEMS em aço inoxidável | Parafusos com arruela cativa | Conjuntos parafuso-arruela inox |
| Italian | Viti SEMS in acciaio inossidabile | Viti con rondella prigioniera | Gruppi vite-rondella inox |
