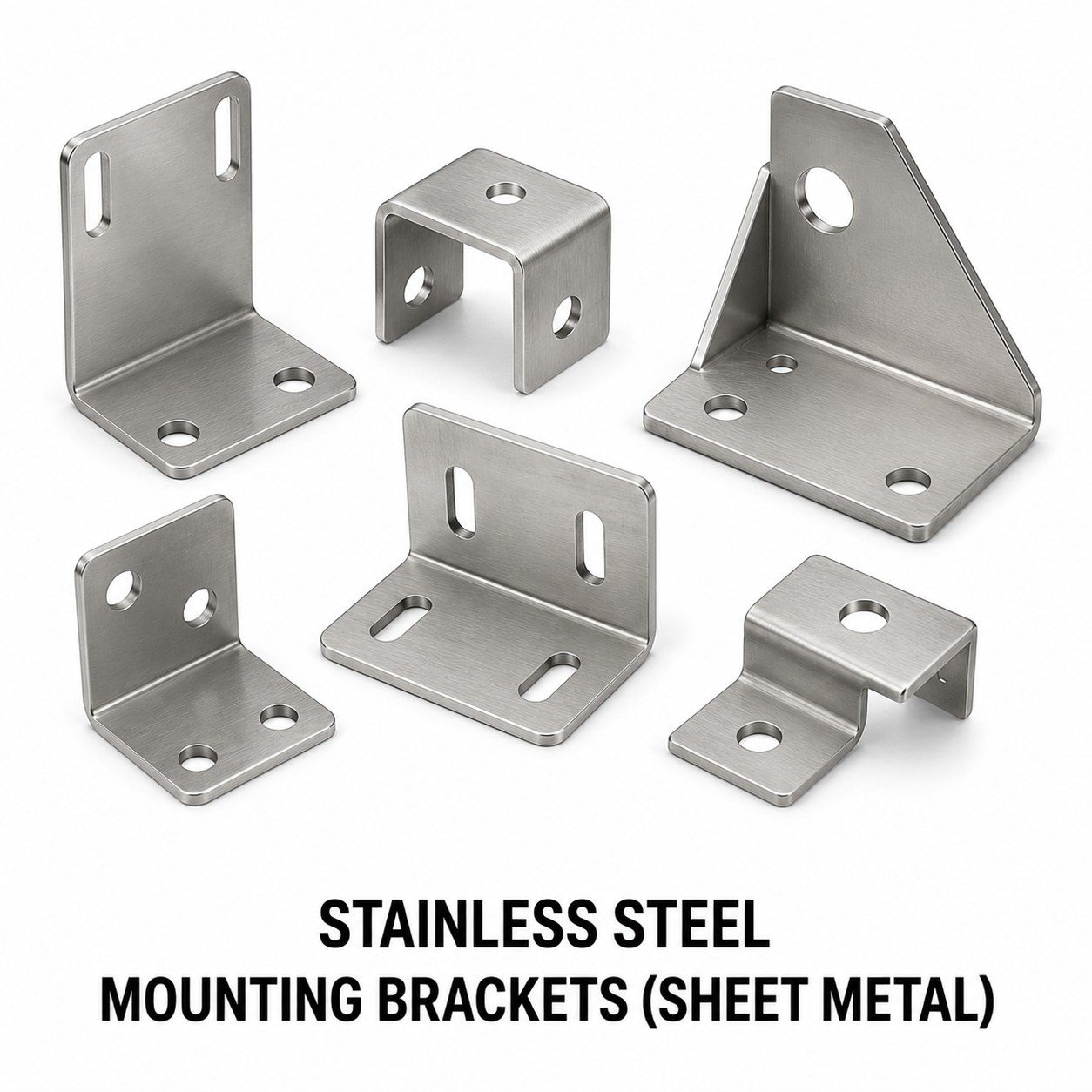

Stainless Steel Mounting Brackets (Sheet Metal)
Stainless Steel Mounting Brackets (Sheet Metal) — Panel, Cable and Structural Support Brackets
Stainless Steel Mounting Brackets (also known as stainless support brackets, fixing brackets, angle brackets, cable tray brackets, panel mounting plates, or enclosure support brackets) are precision-fabricated sheet metal components used to fix, support, and position electrical panels, cable management systems, conduit runs, junction boxes, and equipment within electrical and industrial installations. Manufactured from Grade A2 (304) and A4 (316) stainless steel sheet, these brackets provide the corrosion resistance, structural strength, and dimensional accuracy required in industrial, outdoor, marine, and corrosive environment applications. Price: US$ 10.90/Kilogram.
Product Overview
Role of Mounting Brackets in Electrical Systems
Mounting brackets are the structural interface between electrical equipment and the building or structure on which it is installed. In cable management systems, brackets support cable trays, cable ladders, and conduit hangers at defined spacing intervals to prevent sag and maintain bend radius compliance. In panel installations, brackets are used to mount distribution boards, junction boxes, cable gland plates, and DIN rails to walls, columns, cable tray frames, and equipment racks. The mechanical integrity, corrosion resistance, and dimensional consistency of mounting brackets directly affect the long-term reliability and safety of the electrical installation.
Sheet Metal Bracket Types for Electrical Applications
The most common stainless sheet metal bracket configurations for electrical and industrial applications are: L-brackets (right-angle brackets for wall mounting and panel fixing), U-brackets (channel or saddle-type for cable tray and conduit support), Z-brackets (offset brackets for fixing to uneven surfaces or creating standoff distances), flat mounting plates (for distribution board backplates, gland plates, and terminal block platforms), angle brackets (equal or unequal leg angles for structural panel frames), and channel section brackets (for heavy-duty cable tray wall support). All types are available in A2 or A4 stainless steel, fabricated to drawings or standard configurations.
Material Selection: A2 vs A4 for Mounting Brackets
A2 (304) stainless is the standard specification for mounting brackets in indoor industrial environments, commercial buildings, clean manufacturing, and protected cable management systems. A4 (316) stainless is specified for outdoor substation structures, marine vessel cable management, offshore platform electrical installations, coastal and beachfront electrical infrastructure, food and beverage processing plants (wet areas), pharmaceutical cleanrooms, and chemical plant installations. The molybdenum content in A4 prevents chloride-induced pitting at cut edges and bend radii — the areas most susceptible to corrosion in sheet metal brackets.
Sheet Thickness and Structural Grades
Stainless sheet mounting brackets are fabricated from cold-rolled stainless sheet in thicknesses of 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, and 4.0 mm (heavier gauges on request). Sheet selection is based on the bracket’s span, load, and point-of-fixity: light cable tray hangers (single conduit, short span) use 1.5–2.0 mm; standard panel mounting brackets use 2.0–3.0 mm; structural cable ladder support brackets in large substations use 3.0–5.0 mm. Grade EN 1.4301 (304) and EN 1.4401 (316) cold-rolled strip per EN 10088-2 with 2B or No. 4 finish is standard raw material.
Fabrication Methods
Stainless mounting brackets are produced using CNC laser cutting, CNC punch pressing, and CNC press brake bending. Laser cutting (fiber laser) provides highest edge quality and tight dimensional tolerances (±0.1 mm on cut dimensions) with no mechanical deformation of the sheet. Punch pressing is used for high-volume production of identical hole patterns. CNC press brake bending produces consistent bend angles (±0.5°) and bend radii across production batches. Weld assemblies (for complex multi-piece brackets or gusset-stiffened heavy duty types) are TIG or MIG welded using matching filler wire, followed by passivation to restore the passive layer at weld heat affected zones.
Hole Patterns and Fixings
Standard stainless mounting brackets are designed with bolt hole or slotted hole patterns for M6, M8, M10, or M12 fixings (metric). Slotted holes (rather than fixed round holes) allow adjustment of bracket position during installation — critical for aligning cable trays to straight runs and compensating for structural tolerance variations in concrete walls and steel columns. Standard slot width: M6 = 7 mm, M8 = 9 mm, M10 = 11 mm. Slot length: 15–25 mm. All cut edges and punched holes are deburred and in stainless grades, passivated to protect the freshly cut edge from corrosion initiation.
Gland Plates and Cable Entry Panels
A closely related bracket type is the stainless steel gland plate — a flat sheet panel mounted in the base or side of an electrical enclosure through which cable glands are installed. Gland plates are typically 2.0–3.0 mm thick stainless sheet (A2 or A4), pre-punched with knockout patterns or custom-drilled to the specified cable gland size and layout. They are supplied flat (for field drilling) or pre-punched to the customer’s cable schedule. For outdoor and marine enclosures, A4 gland plates with electropolished finish provide maximum corrosion resistance at the gland sealing face.
Surface Finish and Corrosion Protection
Standard stainless mounting brackets are supplied with 2B (cold-rolled, light-rolled annealed) or No. 4 satin (brushed, Ra 0.5–0.8 μm) surface finish, passivated per ASTM A967 (citric or nitric acid bath). For food, pharmaceutical, and marine applications, electropolished (EP) finish (Ra less than 0.4 μm) is available, providing superior corrosion resistance at cut edges and weld zones. Electropolishing also eliminates micro-crevices where bacteria and contamination can accumulate. Powder-coated stainless brackets are available for architectural or colour-coded cable management systems.
Key Features
- A2 (304) and A4 (316) stainless steel — corrosion resistance for indoor, outdoor, marine, and chemical environments
- Full range of bracket types: L, U, Z, flat plate, angle, channel saddle, gland plate
- Sheet thickness 1.0 mm to 5.0 mm depending on load and span requirements
- CNC laser cut, punch pressed, and press brake bent for dimensional accuracy
- Slotted hole options for installation adjustment
- Custom hole patterns, dimensions, and configurations fabricated to drawings
- TIG/MIG weld assemblies available for complex multi-piece bracket configurations
- Passivated per ASTM A967 — all types including cut edges and bend radii
- Surface finish options: 2B, No. 4 satin, electropolished
- RoHS and REACH compliant
Cable Tray Support Brackets
Stainless cable tray support brackets (wall-mounted hangers, cantilever arms, trapeze hangers) are fabricated from 2.5–4.0 mm A4 stainless sheet for outdoor, coastal, and marine cable management systems where galvanized steel would corrode within 5–10 years. A pair of 300 mm cantilever cable tray brackets in 3.0 mm A4 stainless can support a 600 mm wide cable tray filled with power cables at loads exceeding 150 kg per bracket pair. Bracket spacing is typically 1000–1500 mm for standard cable trays per IEC 61537 guidelines.
DIN Rail Mounting Brackets
DIN rail mounting brackets (35 mm top hat rail fixing plates) in stainless steel are used in outdoor junction boxes, coastal distribution boards, and explosion-proof enclosures where standard zinc-plated DIN rail clips corrode rapidly. Stainless mounting plates accept standard EN 60715 DIN rails (35 mm × 7.5 mm or 35 mm × 15 mm) via stainless M4 SEMS screws. Available as flat plates with pre-drilled DIN rail fixing holes, or as sub-panel assemblies with multiple DIN rail positions for outdoor IP66 enclosure fitting.
Enclosure Backplates and Sub-Panels
Stainless steel enclosure backplates (also called sub-panels or mounting plates) are flat sheet components that fit inside electrical enclosures as the mounting surface for MCBs, contactors, terminal blocks, and cable management. For small to medium outdoor junction boxes (400×400 mm to 800×600 mm) in corrosive environments, 2.0 mm A4 stainless backplates are supplied pre-drilled or undrilled for field configuration. Unlike painted steel or aluminum backplates, stainless backplates do not require repainting after field drilling.
Conduit and Cable Saddle Brackets
Stainless conduit saddle brackets (one-hole and two-hole types, for metric conduit from 16 mm to 63 mm) and cable saddles (for single cable OD 10–50 mm) in A2/A4 are used in outdoor cable runs, cable bridges, and exposed installation areas. Stainless saddle brackets prevent the galvanic corrosion that occurs when carbon steel or zinc-plated saddles contact stainless conduit or cable armour in wet environments. Compatible with standard metric conduit (EN 61386 series) and BS/NPT threaded conduit systems.
Custom Fabricated Bracket Assemblies
For EPC project and OEM customers, Electrical Accessories India manufactures custom stainless sheet metal bracket assemblies to customer-supplied drawings (DXF/DWG/PDF), including multi-piece welded bracket frames, equipment skid mounting brackets, instrument tube support assemblies, and cable gland panel sub-frames. 3D model review, DFM feedback, and first article inspection reports are available for project-critical custom bracket orders. Typical lead time for custom fabricated brackets: 3–5 weeks from drawing approval.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Grades | A2 (SS 304), A4 (SS 316) |
| Sheet Standard | EN 10088-2 (SS sheet), ASTM A240, IS 6911 |
| Sheet Thickness | 1.0 mm to 5.0 mm (standard); heavier on request |
| Surface Finish | 2B cold-rolled, No. 4 satin, Electropolished |
| Fabrication Methods | CNC laser cut, CNC punch, CNC press brake bend, TIG/MIG weld |
| Dimensional Tolerance | ±0.1 mm (laser cut), ±0.5° (bend angle) |
| Hole Types | Round (clearance), slotted (adjustment), tapped on request |
| Fixing Size | M5, M6, M8, M10, M12 (standard); custom on request |
| Yield Strength (A2, 2 mm) | 210 N/mm² minimum (0.2% proof) |
| Tensile Strength | 520–720 N/mm² (A2), 530–680 N/mm² (A4) |
| Operating Temperature | -50°C to +300°C |
| Salt Spray (ISO 9227) | 72 hr (A2), 240+ hr (A4) |
| Passivation | ASTM A967 (citric or nitric acid) |
| Compliance | RoHS, REACH; EN 10204 3.1 MTR available |
Grade Comparison Table
| Property | A2 (SS 304) | A4 (SS 316) |
|---|---|---|
| UNS Number | S30400 | S31600 |
| EN Designation | 1.4301 | 1.4401 |
| Chromium % | 18.0–20.0 | 16.0–18.0 |
| Nickel % | 8.0–10.5 | 10.0–14.0 |
| Molybdenum % | — | 2.0–3.0 |
| PREN | ~18.5 | ~25.6 |
| Salt Spray Life | 72 hr (5% NSS) | 240+ hr (5% NSS) |
| Best For | Indoor, protected outdoor | Marine, coastal, chemical, outdoor substation |
International Material Equivalents
| Standard | A2 (304) Equivalent | A4 (316) Equivalent |
|---|---|---|
| Indian Standard (IS) | IS 6911 Grade 04Cr18Ni10 | IS 6911 Grade 04Cr17Ni12Mo2 |
| ISO / EN | EN 1.4301 / X5CrNi18-10 | EN 1.4401 / X5CrNiMo17-12-2 |
| ASTM / UNS | ASTM A240 / S30400 | ASTM A240 / S31600 |
| BS (UK) | BS 970 304S31 | BS 970 316S31 |
| DIN (Germany) | DIN 1.4301 | DIN 1.4401 |
| JIS (Japan) | JIS SUS 304 | JIS SUS 316 |
Product Types and Variants
| Type | Profile | Thickness | Common Uses |
|---|---|---|---|
| L-Bracket (Wall Mount) | 90° equal leg | 2.0–4.0 mm | Panel wall fixing, junction box mount |
| Z-Bracket (Offset) | S/Z profile | 2.0–3.0 mm | Standoff mounting, surface irregularities |
| U-Bracket / Saddle | U-channel | 2.0–3.0 mm | Conduit, pipe, cable support |
| Flat Gland Plate | Flat sheet | 2.0–3.0 mm | Enclosure cable entry, gland mounting |
| DIN Rail Mounting Plate | Flat with DIN holes | 2.0–3.0 mm | MCB, relay, terminal block mounting |
| Cable Tray Hanger | Cantilever arm | 3.0–4.0 mm | Cable tray wall support |
| Backplate / Sub-panel | Flat sheet panel | 2.0–3.0 mm | Enclosure interior component mounting |
| Custom Welded Assembly | Per drawing | As specified | OEM, EPC project-specific brackets |
Applications in Industry
| Sector | Application | Recommended Grade |
|---|---|---|
| Electrical Panel Manufacturing | Enclosure backplates, DIN rail plates, gland plates | A2-70 |
| Substation and Switchgear | Outdoor panel mounting, cable tray hangers, conduit saddles | A4-80 |
| Marine and Offshore | Equipment mounting brackets, cable support in vessel cable routes | A4-80 |
| Food and Beverage | Hygienic enclosure sub-panels, equipment fixing brackets | A4-80 (EP) |
| Oil and Gas / Petrochemical | Instrument tube support, cable tray saddle, junction box mount | A4-80 |
| Solar and Renewable Energy | Inverter mounting brackets, cable management in solar arrays | A4-80 |
| Telecommunications | ODF rack mounting plates, cable management in data centers | A2-70 |
| Railway / Transportation | Trackside equipment mounting, cable saddles | A4-80 |
Manufacturing Process
Stainless mounting brackets begin as flat stainless steel sheet (EN 10088-2, ASTM A240, or IS 6911 certified coil or sheet) in the specified grade (304/316) and thickness. CNC fiber laser cutting machines cut the flat blank to the specified outer profile and internal cutouts, holes, and slots in a single operation, achieving dimensional tolerances of ±0.1 mm with a smooth, burr-free edge on stainless. CNC turret punch presses are used for production runs requiring specific punching tools. Following flat cutting, CNC press brake bending forms the bracket geometry (right angles, offsets, channels) using precision tooling and back-gauging to ±0.5° angular tolerance and ±0.2 mm leg length accuracy. Where brackets require welded assembly, TIG welding with matching ER308L (A2) or ER316L (A4) filler wire is used, followed by post-weld passivation. All finished brackets undergo passivation per ASTM A967 (nitric or citric acid bath), final deburring check, and dimensional inspection per AQL sampling plan before packing.
Quality Standards and Certifications
| Standard | Scope |
|---|---|
| ASTM A240 | Stainless steel sheet/plate for general applications |
| EN 10088-2 | Stainless steel strip and sheet — technical delivery conditions |
| IS 6911 | Indian standard stainless steel plate, sheet, and strip |
| ASTM A967 | Passivation treatment for stainless steel parts |
| ISO 9227 | Neutral salt spray corrosion test |
| IEC 61537 | Cable management — cable tray systems and ladders |
| ISO 9001:2015 | Quality management system |
| RoHS 2011/65/EU | Restriction of hazardous substances |
| REACH EC 1907/2006 | No SVHCs above threshold |
| EN 10204 Type 3.1 | Mill test certificate with chemical and mechanical test results |
Why Choose Electrical Accessories India
- Sheet metal fabrication expertise: CNC laser, punch, and press brake capabilities in-house — tight tolerances, consistent production quality.
- Both standard and custom: Standard bracket configurations in stock; custom brackets fabricated to customer DXF/DWG drawings within 3–5 weeks.
- Grade breadth: A2 (304) and A4 (316) stainless across all bracket types and thicknesses — full range from one source.
- Project documentation: EN 10204 3.1 mill test certificates, REACH/RoHS declarations, dimensional inspection reports for EPC project requirements.
- OEM supply capability: Long-term supply agreements with panel builders and electrical equipment OEMs in India and export markets.
- Export pricing: Direct manufacturer — US$ 10.90/Kilogram — no distributor margin added.
Frequently Asked Questions
What is the difference between A2 and A4 stainless steel mounting brackets?
A2 (Grade 304) is the standard specification for indoor and protected outdoor applications. A4 (Grade 316) contains 2–3% molybdenum, which significantly improves resistance to pitting corrosion in chloride-rich environments (seawater, coastal air, chlorinated cleaning chemicals). For outdoor substations within 5 km of the coast, marine vessel cable management, or food processing plants using CIP cleaning, A4 is mandatory. A2 is adequate for inland indoor industrial environments.
Can stainless mounting brackets be custom fabricated to my drawings?
Yes. Electrical Accessories India accepts customer drawings in DXF, DWG, STEP, or PDF format and fabricates custom stainless mounting brackets to specification. First article samples are provided for engineering approval before production quantities are commenced. DFM feedback is provided at no charge for orders above minimum quantities. Provide drawing files, material grade, sheet thickness, finish requirement, and required quantity for a fabrication quotation.
What thickness stainless sheet should I specify for cable tray wall support brackets?
For single-tier cable tray cantilever wall brackets supporting a 600 mm wide cable tray at 1000–1500 mm spacing with a full load of 60–90 kg/m, 3.0 mm A4 stainless sheet is the standard specification. For wider trays (more than 600 mm), heavier cable loads, or longer unsupported spans, 4.0 mm A4 is recommended.
Do you supply stainless gland plates pre-punched to a cable schedule?
Yes. Gland plates can be laser-cut or punched with the exact cable gland size and layout specified by the customer’s cable schedule. Provide the enclosure dimensions (H x W), gland sizes (metric M20, M25, M32, etc. or NPT equivalents), and number of glands per size, along with the preferred stainless grade (A2 or A4) and sheet thickness.
Are stainless steel brackets suitable for use with aluminum cable trays?
Stainless steel in contact with aluminum in a wet or outdoor environment creates a galvanic couple — stainless is nobler and aluminum corrodes preferentially. In dry indoor environments the risk is low, but for outdoor or wet installations, use insulating isolators (rubber or nylon washers/sleeves) at the contact points, or specify aluminum brackets to match the aluminum cable tray material.
What welding filler wire is correct for welding stainless steel mounting brackets?
For welded stainless bracket assemblies: A2 (304) base material uses ER308L filler wire; A4 (316) base material uses ER316L filler wire. The “L” designation (low carbon) minimizes sensitization in the weld heat-affected zone, preserving corrosion resistance. Post-weld passivation per ASTM A967 is performed after welding to restore the passive layer at weld and HAZ areas.
Can brackets be supplied with powder coat over the stainless for colour coding?
Yes. Powder-coated stainless mounting brackets (stainless substrate with polyester powder coat, typically 60–80 μm DFT) are available for colour-coded zone identification or aesthetic applications. The stainless substrate provides corrosion backup even if the powder coat is mechanically damaged. RAL colour matching available on request.
What is the lead time for standard stainless mounting brackets?
Standard configurations (L-brackets, flat gland plates, DIN rail plates in A2 or A4, 2.0–3.0 mm thickness) are available from stock with 1–2 week dispatch for standard sizes. Custom dimensions and non-standard configurations carry 3–5 week fabrication lead time from drawing approval. For large project quantities (more than 500 kg), plan 4–6 weeks for production scheduling and quality documentation preparation.
Do you provide structural calculations or load certificates for mounting brackets?
Load capacity data sheets are available for standard bracket configurations showing allowable working load at specified span, deflection limits, and safety factor. For project-critical applications requiring structural certification, engineering calculations can be prepared and stamped by a qualified structural engineer at an additional service fee. Specify the installation standard applicable to your project (IS, BS, AS/NZS, or IBC) when requesting structural documentation.
Are stainless mounting brackets ATEX/IECEx compatible?
Stainless steel is an acceptable material for mounting hardware within ATEX Zone 1 and Zone 2 hazardous areas as structural and support elements. However, large stainless surfaces in Zone 0 gas atmospheres (Group IIC) must be reviewed for electrostatic discharge risk — confirm that earthing provisions are in place per IEC 60079-14 installation requirements.
Multilingual Equivalent Terms
| Language | Term 1 | Term 2 | Term 3 |
|---|---|---|---|
| Spanish | Soportes de montaje en acero inoxidable | Escuadras de chapa inox para paneles | Ménsulas de fijación en acero inoxidable |
| Russian | Монтажные кронштейны из нержавеющей стали | Нержавеющие кронштейны для панелей | Опорные скобы из нержавейки листовой |
| French | Supports de fixation en acier inoxydable | Équerres de montage inox tôle | Consoles de support en inox pour panneaux |
| Portuguese | Suportes de montagem em aço inoxidável | Cantoneiras inox para painéis elétricos | Mísulas de fixação em chapa inox |
| Italian | Staffe di montaggio in acciaio inossidabile | Mensole in lamiera inox per quadri | Supporti in acciaio inox per pannelli |
