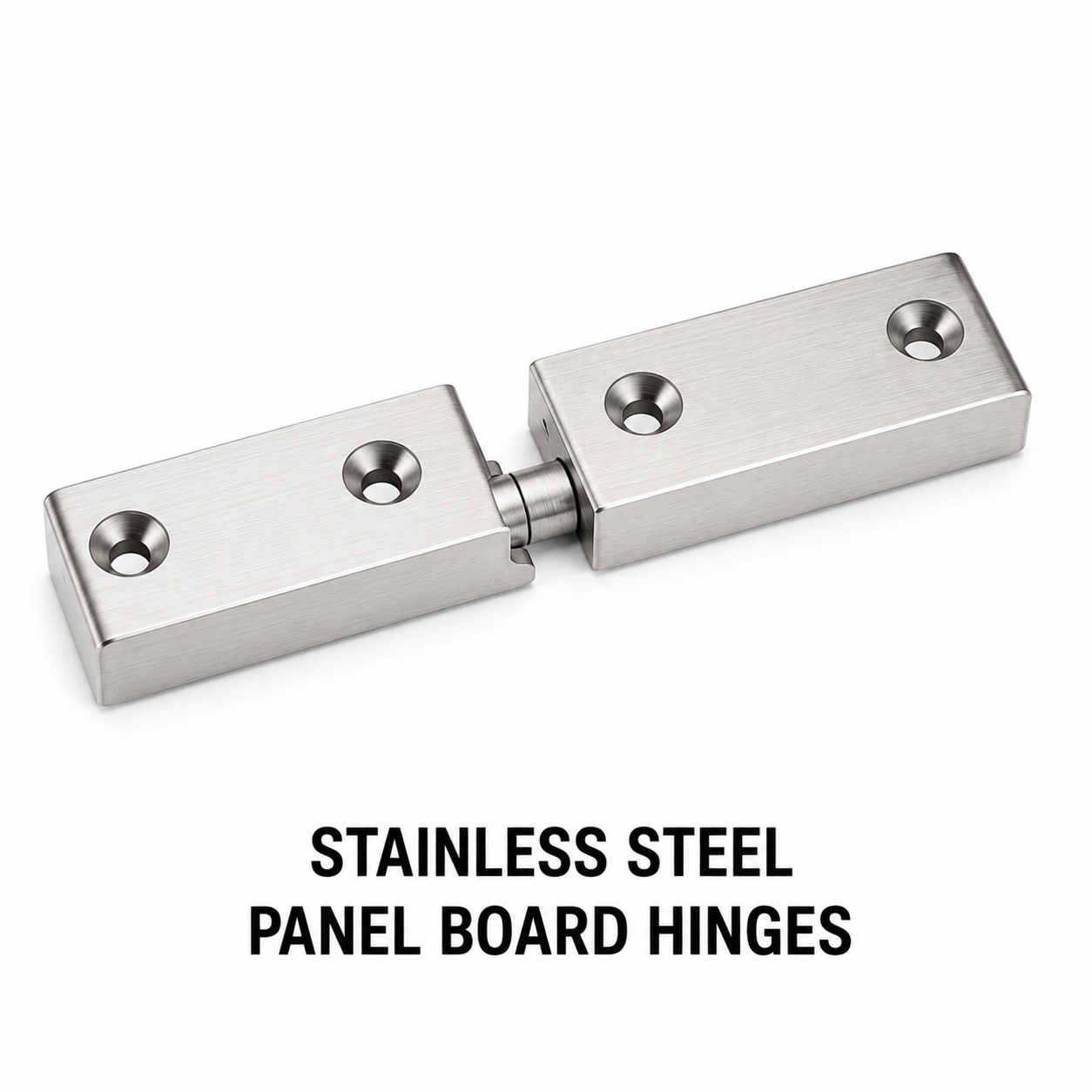

Stainless Steel Panel Board Hinges
Stainless Steel Panel Board Hinges — Enclosure and Switchgear Door Hardware
Stainless Steel Panel Board Hinges (also known as enclosure hinges, switchgear door hinges, cabinet hinges, or panel door pivots) are precision-engineered hardware components used to support and articulate the doors of electrical panels, control cabinets, distribution boards, and switchgear enclosures. Manufactured from Grade A2 (304) and A4 (316) stainless steel, these hinges provide corrosion resistance, high load capacity, and long service life in both indoor and outdoor electrical installations. Price: US$ 10.90/Kilogram.
Product Overview
Role of Hinges in Electrical Enclosures
Panel board hinges perform the critical function of supporting the full weight of enclosure doors while allowing controlled, smooth angular opening for access to internal components. For electrical panels, the hinge must satisfy mechanical performance requirements (load bearing, cycle life, angular range), environmental requirements (corrosion resistance in the installation environment), and in many cases aesthetic requirements (flush or concealed for clean panel appearance). Stainless steel hinges address all these requirements across indoor industrial, outdoor substation, marine, food processing, and cleanroom environments.
Types of Panel Board Hinges
The main categories of stainless steel panel hinges are: weld-on hinges (welded to panel frame and door edge — strongest joint, used for heavy steel enclosures), screw-fix hinges (bolt or screw-mounted for bolted panel frames and removable doors), concealed hinges (recessed into door edge — flush appearance when door is closed, used in modular panel systems), piano hinges (continuous hinge spanning full door height — maximum load distribution), and lift-off hinges (door is removable by simply lifting — facilitates maintenance access without tools). Each type is available in A2 and A4 stainless steel.
Material Selection: A2 vs A4 for Panel Hinges
For indoor electrical panels and MCC (motor control centers) in factory and commercial building environments, A2 (304) stainless provides adequate corrosion resistance and good mechanical properties at lower cost. For outdoor distribution boards, substation kiosks, marine panels, coastal installations, and food/pharma production environments, A4 (316) stainless is specified, with its molybdenum content providing superior resistance to chloride-induced pitting and crevice corrosion at hinge pivot joints. Salt spray test life: A2 = 72 hr minimum, A4 = 240+ hr at 5% NSS per ISO 9227.
Load Capacity and Door Weight Considerations
Hinge load capacity is a primary selection criterion for panel board applications. Heavy steel panel doors (2–4 mm thick, large format) with mounted components (meters, switches, indicators) may weigh 15–40 kg per door. For typical industrial panel doors up to 600 mm wide and 1200 mm tall, a pair of heavy-duty stainless hinges with a combined vertical load capacity of 50–80 kg is specified. Piano/continuous hinges distribute load over the full door height and are preferred for very heavy doors or doors with high-frequency operation cycles (>50 cycles/day).
Hinge Geometry and Opening Angle
Standard panel hinges provide 180° maximum opening angle, with 90° and 120° stop variants available for space-constrained installations. For back-to-back panel rows, 90° opening hinges prevent door-to-door collision. The hinge barrel diameter, knuckle count, and pin diameter determine the pivot strength and moment arm resistance. Butt hinges with 3-knuckle design are standard for light-to-medium panel doors; 5-knuckle designs are used for heavy doors requiring higher lateral stability at the pivot.
Surface Finish and Appearance
Stainless panel hinges are available with natural satin (brushed) finish (Ra 0.8–1.6 μm), mirror polished finish (Ra < 0.4 μm), or electropolished finish for food, pharma, and cleanroom applications. Satin finish is the standard for industrial electrical panels, providing good corrosion resistance and scratch concealment. Mirror polish is specified for medical equipment panels and architectural enclosures. All finishes are passivated per ASTM A967 to maximize corrosion resistance.
Fastener Compatibility and Installation
Screw-fix panel hinges are designed with pre-drilled or slotted mounting holes accepting M5 or M6 stainless SEMS screws or hex bolts. Counter-bore holes allow for flush-head fastener installation on door leaf surfaces. Weld-on hinges have plain flat leaves without pre-drilled holes, requiring MIG or TIG welding to the panel frame and door edge. For stainless steel enclosures, matching A2 or A4 welding wire must be used to prevent galvanic incompatibility at the weld joint. Lift-off hinges feature a non-removable pin leaf (frame side) and a removable pin-receptacle leaf (door side) — ensure pin orientation allows door removal in the correct upward direction.
Cycle Life and Maintenance
Heavy-duty stainless panel hinges are rated for 50,000–100,000 open/close cycles under rated load, far exceeding the expected service life in normal electrical panel maintenance scenarios (typically 1–5 cycles per week = approximately 500–2,500 cycles per 10-year period). The pivot pin is either a solid stainless rod (press-fitted or upset-headed) or a removable split pin. No lubrication is required for stainless-on-stainless pivot joints in normal industrial environments, though a PTFE-based dry lubricant can be applied in high-cycle or marine applications to reduce wear and prevent galling.
Key Features
- A2 (304) and A4 (316) stainless steel — comprehensive corrosion resistance for indoor and outdoor enclosures
- Multiple types: weld-on, screw-fix, concealed, piano, and lift-off variants
- Load capacity up to 80 kg per pair for heavy industrial panel doors
- Opening angles: 90°, 120°, and 180° variants available
- Satin, mirror, and electropolished surface finish options
- Pre-drilled mounting holes for M5/M6 fasteners (screw-fix variants)
- Compatible with steel, stainless steel, and aluminum enclosure frames
- Rated for 50,000+ open/close cycles under rated load
- Passivated per ASTM A967 — enhanced corrosion protection
- RoHS and REACH compliant
Weld-On Hinges for Heavy Steel Panels
Weld-on stainless hinges offer the highest joint strength and are the preferred type for heavy-gauge steel distribution boards and switchgear enclosures fabricated from 3–4 mm steel plate. The full-width weld along both leaves eliminates the stress concentration at screw holes, providing maximum resistance to door sag and hinge pull-out under heavy door loads. Leaf dimensions typically range from 40 mm × 40 mm to 80 mm × 80 mm, with thicknesses from 2.5 mm to 5 mm.
Concealed Hinges for Modular Panel Systems
Concealed (European cup or knife-style) stainless hinges are recessed into the door edge and panel frame, making them invisible when the door is closed. This type is widely used in modular panel systems, instrument enclosures, and control desks where a clean, uninterrupted front panel appearance is required. Concealed hinges typically allow door removal and adjustment (height, lateral, depth) through adjustment screws — important for field alignment during panel installation. Load capacity per pair: 15–40 kg.
Piano / Continuous Hinges for Large Doors
Continuous hinges (piano hinges) span the full height of the panel door, distributing load uniformly along the entire hinge line. This eliminates the concentrated stress at discrete hinge attachment points, making them ideal for large format doors (>800 mm height) and heavy doors (>25 kg) that would require 3+ individual hinges otherwise. Standard piano hinge lengths: 600 mm, 900 mm, 1200 mm, 1800 mm, 2400 mm (cut to length available). Leaf width: 25 mm, 40 mm per side. Pin diameter: 4–6 mm.
Lift-Off Hinges for Maintenance Access
Lift-off hinges allow the panel door to be removed entirely by lifting it vertically off the fixed pin. This is valuable in maintenance scenarios where full access to the panel interior is required without the door obstructing the working space. Particularly useful for large MCC panels and power distribution boards in substations and industrial plants. Available in right-hand and left-hand configurations — specify hinge orientation (door opens left or right) when ordering.
Corrosion in Marine and Outdoor Applications
Panel hinges in outdoor substations, offshore platforms, and coastal switchgear kiosks are subjected to UV radiation, salt-laden air, temperature cycling, and moisture ingress. A4 (316) stainless, with its higher PREN (pitting resistance equivalent number) of ~25.6, is the minimum specification for these applications. For aggressive offshore or chemical plant environments, consider electropolished A4 hinges, which exhibit a further 30–50% improvement in salt spray life due to the smoother, iron-depleted surface created by electropolishing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Grades | A2-70 (SS 304), A4-80 (SS 316) |
| Hinge Types | Weld-on, Screw-fix, Concealed, Piano, Lift-off |
| Leaf Dimensions | 40×40 mm to 80×80 mm (butt/screw-fix); custom on request |
| Leaf Thickness | 2.0 mm to 5.0 mm |
| Pin Diameter | 4 mm, 6 mm, 8 mm |
| Opening Angle | 90°, 120°, 180° (standard); up to 270° (specialty) |
| Load Capacity (per pair) | Up to 80 kg (heavy-duty weld-on); 15–40 kg (concealed) |
| Mounting Holes | M5 or M6 clearance (screw-fix variants) |
| Surface Finish | Satin, Mirror Polish, Electropolished |
| Cycle Life | 50,000–100,000 cycles at rated load |
| Tensile Strength | 700 N/mm² (A2-70), 800 N/mm² (A4-80) |
| Operating Temperature | -50°C to +300°C |
| Salt Spray (ISO 9227) | 72 hr min (A2), 240+ hr (A4) |
| Compliance | RoHS, REACH, ISO 3506, EN 1935 |
Material Grade Comparison
| Property | A2 (SS 304) | A4 (SS 316) |
|---|---|---|
| UNS Number | S30400 | S31600 |
| Chromium % | 18.0–20.0 | 16.0–18.0 |
| Nickel % | 8.0–10.5 | 10.0–14.0 |
| Molybdenum % | — | 2.0–3.0 |
| PREN | ~18.5 | ~25.6 |
| Salt Spray Life | 72 hr | 240+ hr |
| Best For | Indoor panels, protected cabinets | Outdoor, marine, coastal, chemical |
International Material Equivalents
| Standard | A2 (304) Equivalent | A4 (316) Equivalent |
|---|---|---|
| Indian Standard (IS) | IS 6911 Grade 04Cr18Ni10 | IS 6911 Grade 04Cr17Ni12Mo2 |
| ISO / EN | EN 1.4301 / X5CrNi18-10 | EN 1.4401 / X5CrNiMo17-12-2 |
| ASTM / UNS | ASTM A240 / S30400 | ASTM A240 / S31600 |
| BS (UK) | BS 970 304S31 | BS 970 316S31 |
| DIN (Germany) | DIN 1.4301 | DIN 1.4401 |
| JIS (Japan) | JIS SUS 304 | JIS SUS 316 |
Product Types and Variants
| Type | Mounting Method | Load Rating | Opening Angle | Best For |
|---|---|---|---|---|
| Butt Hinge (Screw-Fix) | Screws / bolts | 20–50 kg/pair | 180° | Standard panel doors, removable lids |
| Weld-On Hinge | Welded to frame | 40–80 kg/pair | 180° | Heavy steel enclosures, switchgear |
| Concealed / Cup Hinge | Screws (recessed) | 15–40 kg/pair | 90°–180° | Modular panels, instrument cabinets |
| Piano / Continuous Hinge | Screws along length | Up to 80 kg total | 180° | Large, heavy panel doors |
| Lift-Off Hinge | Screws / weld | 30–60 kg/pair | 180° | Maintenance-access panels, MCC doors |
| Flag / Strap Hinge | Screws / weld | 20–40 kg/pair | 180° | Narrow-frame panels, door frames |
Applications in Industry
| Sector | Application | Recommended Grade |
|---|---|---|
| Electrical Panel Manufacturing | LT panel, DB board, MCC door hinges | A2-70 |
| Substation and Switchgear | Outdoor kiosk doors, relay panels, cubicle doors | A4-80 |
| Marine and Offshore | Junction box covers, equipment cabinet doors | A4-80 |
| Food and Beverage | Hygienic enclosure doors, washdown-rated panels | A4-80 (EP) |
| Oil and Gas | Hazardous area junction boxes, control panel doors | A4-80 |
| Telecommunications | ODF cabinet doors, server rack enclosures | A2-70 |
| Railway | Trackside equipment cabinet doors | A4-80 |
| Building Automation | BMS panel doors, HVAC control cabinets | A2-70 |
Manufacturing Process
Stainless steel panel hinges are manufactured by precision sheet metal stamping, forming, and finishing. Flat blanks are stamped from hot-rolled or cold-rolled stainless steel coil (2–5 mm thickness) using progressive dies, maintaining tight flatness and perpendicularity tolerances essential for correct hinge operation. The knuckle loops are formed by roll-forming or press-bending the hinge leaf edge around a mandrel of the specified pin diameter. Pin holes are precisely bored or reamed to achieve a close-clearance fit with the hinge pin, minimizing play while allowing free rotation. The pin (solid stainless rod or tube) is inserted and upset-headed or peened at one end to retain it permanently. For removable-pin (lift-off) variants, one leaf has a closed-end socket instead of a through-bore. All machined and formed surfaces are deburred by tumbling or hand deburring. Passivation per ASTM A967 removes free iron contamination and enhances the passive chromium oxide layer. Final 100% dimensional inspection checks leaf flatness, hole position, pin fit, and opening/closing torque.
Quality Standards and Certifications
| Standard | Scope |
|---|---|
| EN 1935 | Building hardware — Single-axis hinges — Requirements and test methods |
| DIN 18274 | Hinges — Requirements and testing |
| IS 1341 | Steel butt hinges — Specification (Indian Standard) |
| ASTM A240 | Chromium and chromium-nickel stainless steel plate, sheet, and strip |
| ASTM A967 | Passivation treatment for stainless steel |
| ISO 9227 | Neutral salt spray corrosion test |
| ISO 9001:2015 | Quality management system |
| RoHS 2011/65/EU | Restriction of hazardous substances |
| REACH EC 1907/2006 | No SVHCs above threshold |
Why Choose Electrical Accessories India
- Panel hardware specialists: Deep application knowledge in electrical enclosure hardware, including hinge-door-lock integration for complete panel door systems.
- Grade and type breadth: A2 and A4 grades across all hinge types — weld-on, screw-fix, concealed, piano, lift-off — from one supplier.
- Custom fabrication: Non-standard leaf dimensions, special opening angles, custom hole patterns, and bespoke lengths for piano hinges cut to specification.
- Material traceability: EN 10204 3.1 mill test certificates for all stainless sheet/coil used, with heat number to finished part traceability.
- Export track record: Hinge and panel hardware supplied to electrical OEMs and EPC contractors in UAE, UK, Australia, South Africa, and Southeast Asia.
- Competitive pricing: Direct manufacturer — US$ 10.90/Kilogram for stainless steel items with no distributor margin.
Frequently Asked Questions
What type of stainless hinge is best for a heavy outdoor switchgear enclosure door?
For heavy outdoor switchgear doors (>20 kg) in exposed environments, weld-on A4 (316) stainless hinges of the heavy-duty type (60×60 mm or 80×80 mm leaf, 6–8 mm pin) are recommended. Weld-on joints eliminate the risk of fastener loosening under vibration and thermal cycling. A4 grade provides the chloride pitting resistance needed for outdoor and coastal locations.
Can stainless steel hinges be used with painted steel panel doors?
Yes. Screw-fix stainless hinges mount directly to painted steel panel doors and frames using stainless SEMS screws. However, weld-on stainless hinges welded to painted steel require paint removal at the weld area before welding, with touch-up coating applied post-weld. Ensure the primer/topcoat is reapplied to prevent corrosion at the bare steel weld zone adjacent to the stainless hinge.
What is the difference between a butt hinge and a lift-off hinge for panel applications?
A butt hinge has a permanent solid or roll-in pin — the door cannot be removed without disassembling the hinge. A lift-off hinge has one leaf with a socket that engages a pin on the mating leaf; the door can be lifted vertically off the pins without tools, facilitating full panel access for maintenance. Lift-off hinges are preferred for large MCC panels, power distribution boards, and any panel where door removal may be required in the field.
What screws should be used to mount stainless steel screw-fix panel hinges?
Stainless steel SEMS screws (A2 or A4 grade matching the hinge grade) are the recommended fastener for mounting stainless screw-fix hinges. Use M5 or M6 pan head or hex head SEMS with internal tooth lock washer for vibration resistance. Never use carbon steel or zinc-plated screws with stainless hinges — galvanic coupling in the presence of moisture causes preferential corrosion of the less noble fastener.
Are electropolished stainless hinges available for food processing applications?
Yes. Electropolished A4 (316) hinges are available for food, beverage, pharmaceutical, and cleanroom panel applications. Electropolishing removes surface asperities, creating a smooth, iron-depleted surface (Ra < 0.4 μm) that resists bacterial adhesion, is easy to clean, and provides improved corrosion resistance in acidic cleaning chemical environments (CIP solutions, chlorinated cleaners). Specify “electropolished A4” when ordering for FDA or EHEDG-compliant installations.
What is the maximum door weight supported by a piano hinge?
A 1200 mm length stainless piano hinge (40 mm leaf width, 4 mm pin) in A2 can support door weights up to approximately 50–60 kg per pair of hinges. For doors heavier than this, use a heavier leaf (50 mm, 3 mm thick) and 6 mm pin piano hinge in A4. Always verify the specific piano hinge load rating with our technical team for doors over 40 kg.
Do you supply hinges for ATEX/IECEx rated explosion-proof enclosures?
Stainless steel hinges for ATEX/IECEx Zone 1 and Zone 2 enclosures are available but must be specified as part of the complete enclosure assembly that holds the ATEX certification. The hinge must not compromise the flameproof (Ex d) or increased safety (Ex e) integrity of the enclosure. Consult Electrical Accessories India’s technical team with the enclosure rating, gap requirements, and flange specifications to confirm hinge compatibility.
Can you supply hinges pre-assembled on panel frames?
Yes. For OEM panel manufacturers, pre-welded or pre-drilled hinge subassemblies on panel frame sections (cut-to-length steel or stainless frame stock) can be supplied as fabricated sub-components, reducing assembly time at the panel builder’s facility. Minimum order quantities apply for fabricated sub-assemblies. Provide panel frame cross-section, hinge type, and spacing requirements for a fabrication quotation.
What is the minimum order for stainless steel panel hinges?
Minimum order is 5 kg per hinge type and grade for standard screw-fix butt hinges. For weld-on, piano, and lift-off types, minimum order is 10 kg per configuration. Custom sizes and special configurations have a minimum of 25 kg. Contact our sales team for sample orders (2–5 pieces) for engineering evaluation and approval purposes.
How do I prevent galling between stainless hinge pin and knuckle?
Galling (cold welding/seizure of stainless on stainless) is a known risk in high-load or high-cycle stainless hinge applications. Prevention measures include: specifying a hardness differential between pin and knuckle (e.g., A4 hardened pin with A2 knuckle), applying PTFE-based dry lubricant to the pin at assembly, using a slightly enlarged pin clearance (H8/h9 fit rather than H7/h6), or using dissimilar stainless grades for pin vs. leaf. Our heavy-duty hinges are designed with galling-resistant features — specify “heavy duty” grade when ordering for high-cycle applications.
Multilingual Equivalent Terms
| Language | Term 1 | Term 2 | Term 3 |
|---|---|---|---|
| Spanish | Bisagras de acero inoxidable para paneles | Bisagras para cuadros eléctricos | Charnelas inox para armarios |
| Russian | Петли из нержавеющей стали для шкафов | Нержавеющие петли для панелей | Шарниры для электрических шкафов из нержавейки |
| French | Charnières inox pour armoires électriques | Paumelles acier inoxydable tableau | Charnières pour coffrets de distribution |
| Portuguese | Dobradiças de aço inoxidável para painéis | Dobradiças inox para quadros elétricos | Articulações de painel em inox |
| Italian | Cerniere in acciaio inossidabile per quadri | Cerniere inox per armadi elettrici | Cardini in acciaio per pannelli di distribuzione |
