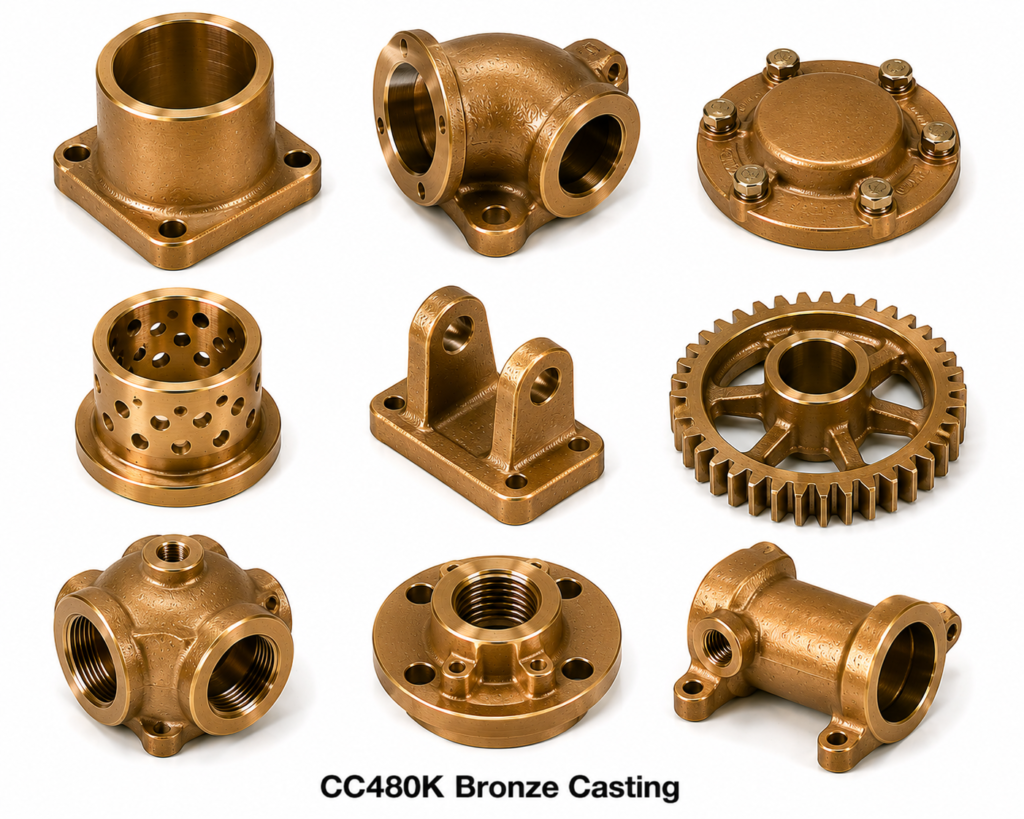

CC480K Bronze Casting
CC480K Bronze Casting is a leaded tin-zinc bronze specified under EN 1982 CC480K (CuSn3Zn8Pb5), equivalent to DIN 2.1080. It contains nominally 84% copper, 3% tin, 8% zinc, and 5% lead, offering excellent castability, pressure tightness, and machinability for general engineering fittings and valve bodies. Indicative price: US$ 8.20/kilogram.
CC480K Chemical Composition (EN 1982)
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | rem | — |
| Tin (Sn) | 2.0 | 4.0 |
| Zinc (Zn) | 6.0 | 10.0 |
| Lead (Pb) | 3.0 | 7.0 |
| Nickel (Ni) | — | 2.0 |
| Iron (Fe) | — | 0.30 |
CC480K Mechanical Properties (Sand Cast – EN 1982)
| Property | Value |
|---|---|
| Tensile Strength | 220 MPa min |
| Yield Strength (0.2%) | 90 MPa min |
| Elongation | 15% min |
| Brinell Hardness | 60 HB typical |
| Density | 8.8 g/cm³ |
International Equivalents of CC480K
| Standard | Designation | Common Name |
|---|---|---|
| Europe – EN 1982 | CC480K | CuSn3Zn8Pb5 |
| Germany – DIN | 2.1080 | CuSn3ZnPb |
| UK – BS 1400 | LG1 | Leaded Gunmetal |
| USA – UNS | C92200 | Steam Bronze |
| ISO 1338 | CuSn3Zn8Pb5 | Leaded Tin Bronze |
| Japan – JIS H5111 | CAC406 | Gunmetal |
Typical Applications
CC480K bronze castings are used for: water and steam pipe fittings, valve bodies, pump casings, marine hardware, general plumbing components, and low-pressure hydraulic fittings.
