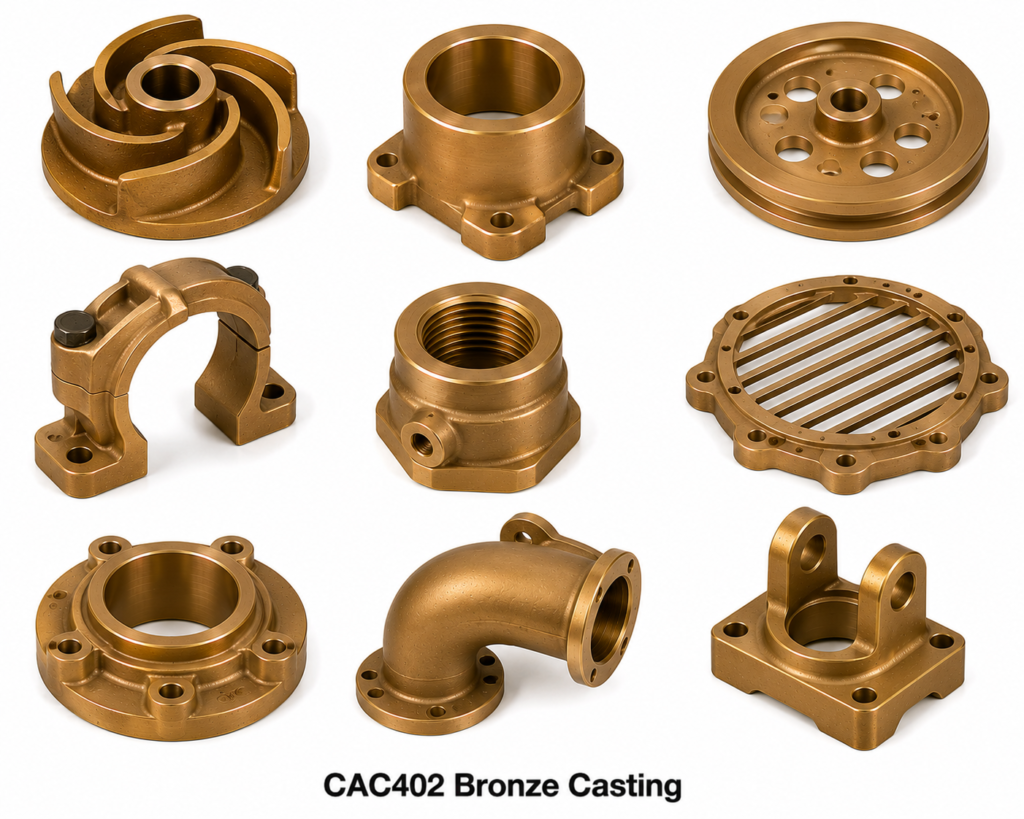

CAC402 Bronze Casting
CAC402 Bronze Casting is a tin bronze specified under JIS H 5111 CAC402 (formerly BC2), containing nominally 90% copper and 10% tin. The Japanese Industrial Standard equivalent of the European CuSn10 and the British PB1 phosphor bronze, CAC402 is used for high-hardness gears, worm wheels, and precision bearings in Japanese and global industrial equipment. Indicative price: US$ 10.00/kilogram.
CAC402 Chemical Composition (JIS H 5111)
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | rem | — |
| Tin (Sn) | 9.0 | 11.0 |
| Zinc (Zn) | — | 1.0 |
| Lead (Pb) | — | 0.50 |
| Phosphorus (P) | 0.05 | 0.30 |
| Iron (Fe) | — | 0.10 |
CAC402 Mechanical Properties (Sand Cast – JIS H 5111)
| Property | Value |
|---|---|
| Tensile Strength | 275 MPa min |
| Yield Strength (0.2%) | 145 MPa min |
| Elongation | 8% min |
| Brinell Hardness | 85 HB typical |
| Density | 8.77 g/cm³ |
International Equivalents of CAC402
| Standard | Designation | Common Name |
|---|---|---|
| Japan – JIS H5111 | CAC402 (formerly BC2) | Tin Bronze |
| ISO 1338 | CuSn10 | Tin Bronze |
| Europe – EN 1982 | CC490K | CuSn10 |
| Germany – DIN | 2.1050 | CuSn10 |
| UK – BS 1400 | PB1 | Phosphor Bronze |
| USA – UNS | C90700 | Tin Bronze (89-11) |
Typical Applications
CAC402 tin bronze castings are used for: gears and worm wheels for Japanese-standard machinery, high-load bearings, pump impellers, piston rings, bridge bearings, and industrial machinery components requiring high wear resistance and hardness.
