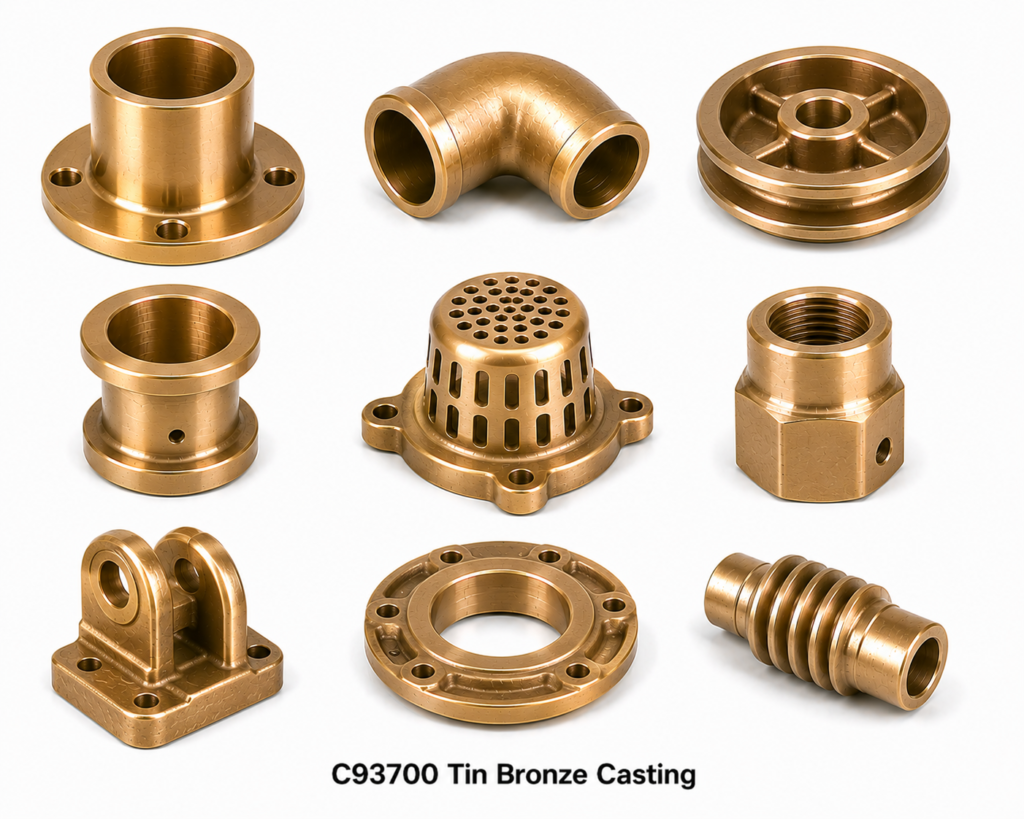

C93700 Tin Bronze Casting
C93700 Tin Bronze Casting (UNS C93700), known as High Leaded Tin Bronze 80-10-10, contains nominally 80% copper, 10% tin, and 10% lead. The high lead content provides exceptional lubricity and conformability, making it ideal for high-speed, low-load bearing applications. Indicative price: US$ 9.50/kilogram (subject to quantity and specification).
C93700 Chemical Composition
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | 78.0 | 82.0 |
| Tin (Sn) | 9.0 | 11.0 |
| Lead (Pb) | 8.0 | 11.0 |
| Zinc (Zn) | — | 0.80 |
| Nickel (Ni) | — | 0.50 |
| Iron (Fe) | — | 0.15 |
C93700 Mechanical Properties (Sand Cast – ASTM B584)
| Property | Value |
|---|---|
| Tensile Strength | 221 MPa (32,000 psi) min |
| Yield Strength | 110 MPa (16,000 psi) min |
| Elongation | 15% min |
| Brinell Hardness | 55 HB typical |
| Density | 9.01 g/cm³ |
| Melting Range | 827–999°C (1520–1830°F) |
International Equivalents of C93700
| Standard | Designation | Common Name |
|---|---|---|
| USA – UNS | C93700 | High Leaded Tin Bronze (80-10-10) |
| UK – BS 1400 | LB1 | Leaded Bronze |
| Europe – EN 1982 | CC495K | CuPb10Sn10 |
| Germany – DIN | 2.1176 | CuPb10Sn |
| ISO 1338 | CuSn10Pb10 | High Leaded Bronze |
| Japan – JIS H5111 | CAC603 | Leaded Bronze |
Typical Applications
C93700 high leaded tin bronze castings are used for: high-speed light-load bearings, automotive and industrial bushings, pump liners, printer and textile machinery bearings, and applications where lubrication may be intermittent.
