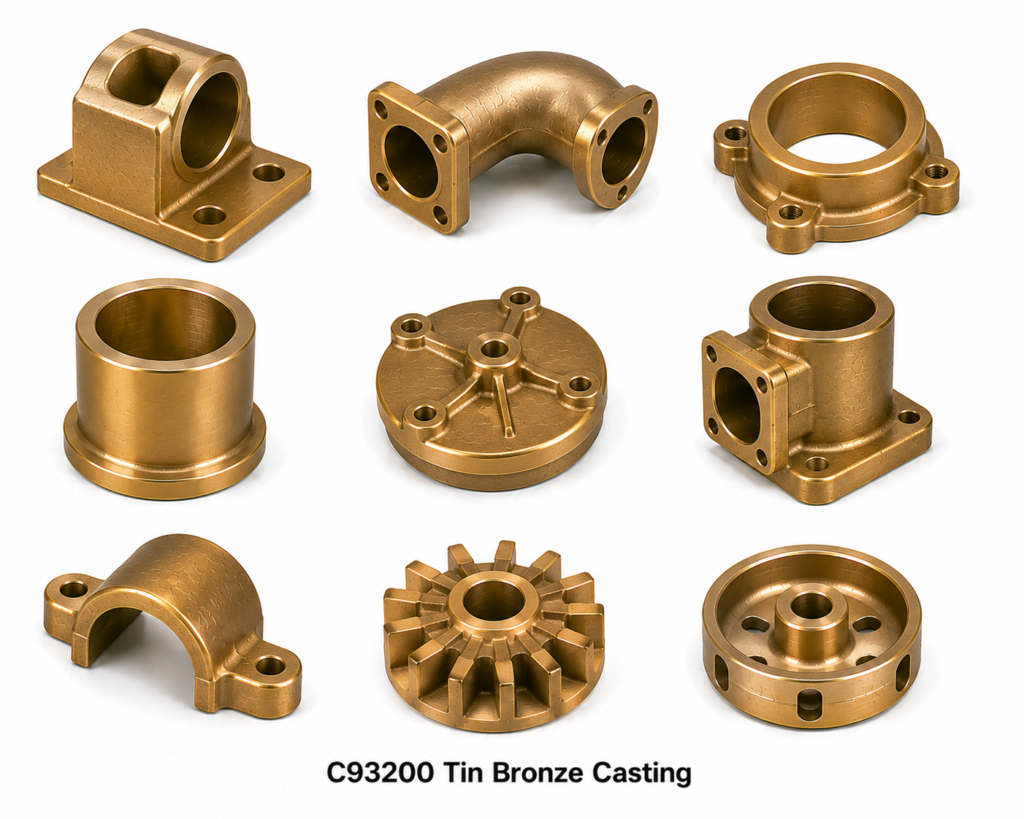

C93200 Tin Bronze Casting
C93200 Tin Bronze Casting (UNS C93200), commonly known as SAE 660 Bearing Bronze, contains nominally 83% copper, 7% tin, 7% lead, and 3% zinc. It is the most widely used bearing bronze in the world, offering excellent anti-friction properties, good machinability, and moderate strength. Indicative price: US$ 9.00/kilogram (subject to quantity and specification).
C93200 Chemical Composition
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | 81.0 | 85.0 |
| Tin (Sn) | 6.3 | 7.5 |
| Lead (Pb) | 6.0 | 8.0 |
| Zinc (Zn) | 2.0 | 4.0 |
| Nickel (Ni) | — | 1.0 |
| Iron (Fe) | — | 0.20 |
C93200 Mechanical Properties (Sand Cast – ASTM B584)
| Property | Value |
|---|---|
| Tensile Strength | 241 MPa (35,000 psi) min |
| Yield Strength | 124 MPa (18,000 psi) min |
| Elongation | 18% min |
| Brinell Hardness | 60 HB typical |
| Density | 8.93 g/cm³ |
| Melting Range | 854–1000°C (1570–1830°F) |
International Equivalents of C93200
| Standard | Designation | Common Name |
|---|---|---|
| USA – UNS | C93200 | SAE 660 Bearing Bronze |
| UK – BS 1400 | LG2 | Leaded Gunmetal |
| Europe – EN 1982 | CC482K | CuSn7Zn2Pb3 |
| Germany – DIN | 2.1090 | CuSn7ZnPb |
| ISO 1338 | CuSn6Zn6Pb3 | Leaded Gunmetal |
| Japan – JIS H5111 | CAC406 | Gunmetal |
Typical Applications
C93200 / SAE 660 bearing bronze castings are the industry standard for: plain bearings and bushings, thrust washers, wear plates, bridge pins, electric motor bushings, pump shaft sleeves, and general anti-friction bearing applications.
