C92600 Tin Bronze Casting
C92600 Tin Bronze Casting (UNS C92600) contains nominally 87% copper, 10% tin, 1% lead, and 2% zinc. It delivers higher strength than standard gunmetal grades and excellent corrosion resistance in marine and industrial environments. Indicative price: US$ 9.50/kilogram (subject to quantity and specification).
C92600 Chemical Composition
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | 85.0 | 89.0 |
| Tin (Sn) | 9.3 | 10.5 |
| Lead (Pb) | 0.3 | 1.5 |
| Zinc (Zn) | 1.0 | 3.0 |
| Nickel (Ni) | — | 1.0 |
| Iron (Fe) | — | 0.20 |
C92600 Mechanical Properties (Sand Cast – ASTM B584)
| Property | Value |
|---|---|
| Tensile Strength | 310 MPa (45,000 psi) min |
| Yield Strength | 159 MPa (23,000 psi) min |
| Elongation | 14% min |
| Brinell Hardness | 78 HB typical |
| Density | 8.72 g/cm³ |
| Melting Range | 836–1000°C (1536–1832°F) |
International Equivalents of C92600
| Standard | Designation | Common Name |
|---|---|---|
| USA – UNS | C92600 | Leaded Tin Bronze |
| UK – BS 1400 | LG4 | Leaded Gunmetal |
| Europe – EN 1982 | CC483K | CuSn7Zn4Pb6 |
| Germany – DIN | 2.1093 | CuSn7ZnPb |
| ISO 1338 | CuSn10 | Tin Bronze |
| Japan – JIS H5111 | CAC407 | Tin Bronze |

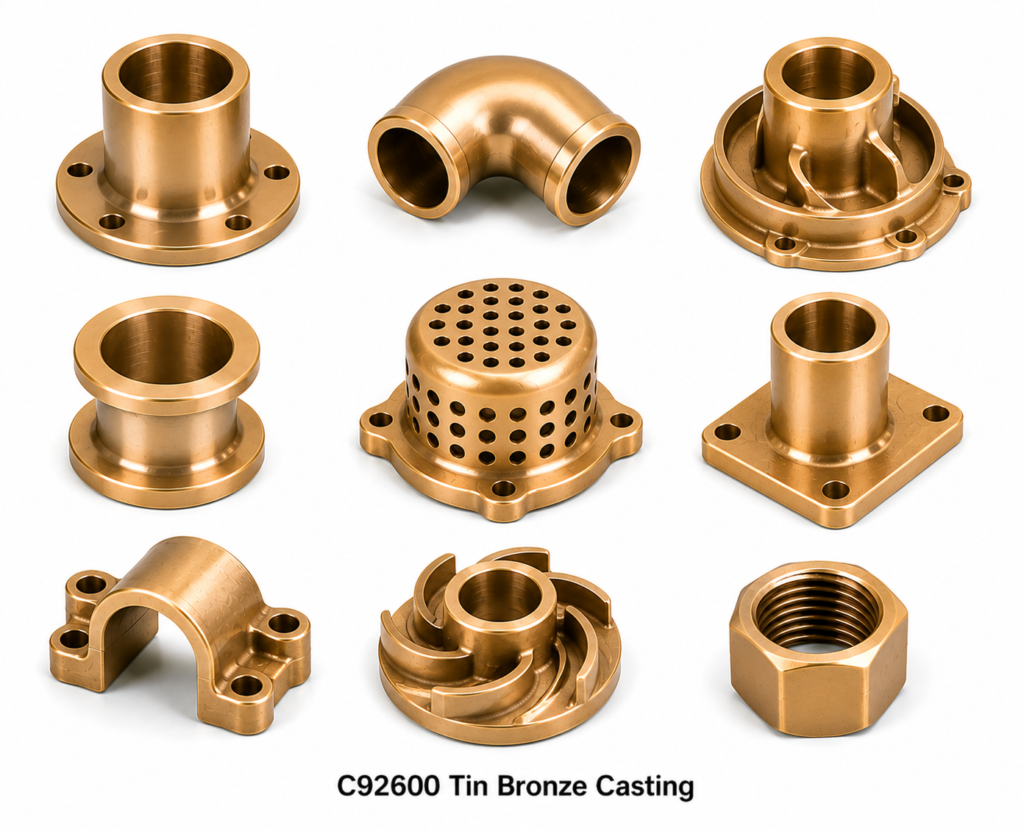

Typical Applications
C92600 tin bronze castings are used for: high-strength marine fittings, pump casings and impellers, valve bodies for high-pressure applications, heavy bearings and bushings, and structural castings for corrosive environments.
