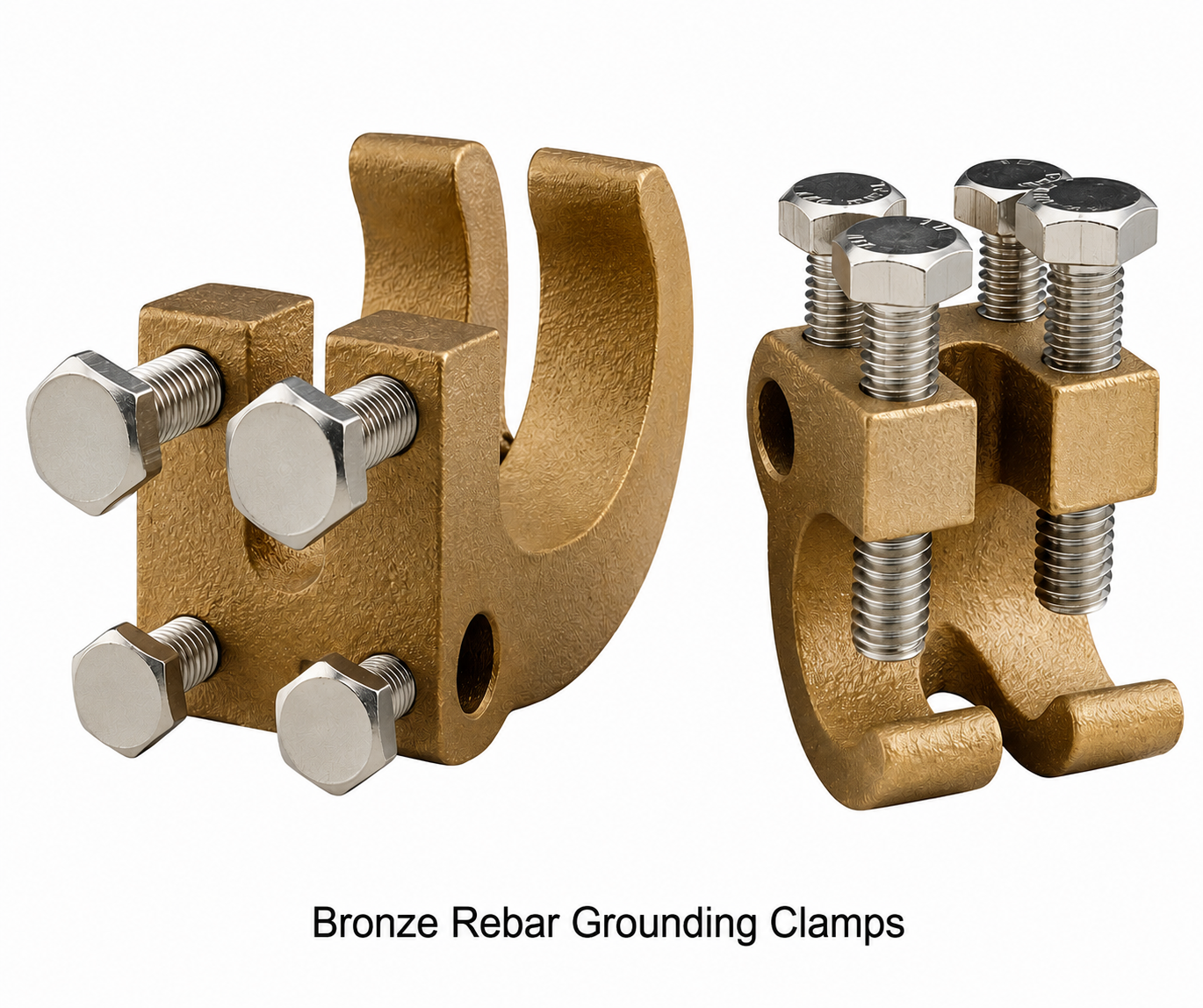

Rebar Grounding Clamps of Bronze
Rebar Grounding Clamps of Bronze
We are an Indian Bronze and Copper foundry manufacturing and exporting high-quality Rebar Grounding Clamps of Bronze for electrical grounding and bonding applications. Our bronze rebar grounding clamps are engineered to provide a secure, low-resistance connection between grounding conductors and concrete-encased electrodes (rebar), making them an essential component in modern electrical grounding systems.
Manufactured from high-strength electrolytic bronze alloy, our rebar grounding clamps deliver excellent corrosion resistance, superior conductivity, and long-term durability — even in the most demanding direct burial and concrete-encased environments. They are widely used in commercial, industrial, and infrastructure projects worldwide.
What Are Bronze Rebar Grounding Clamps?
A bronze rebar grounding clamp is a specialized electrical connector designed to bond a copper grounding conductor (wire/cable) directly to a steel reinforcement bar (rebar) embedded in concrete. Concrete-encased rebar used in building foundations serves as an effective grounding electrode as recognized by the National Electrical Code (NEC). The clamp ensures a mechanically strong and electrically continuous connection between the conductor and the rebar electrode.
Our clamps are cast and machined from high-grade bronze alloy, providing an optimal combination of strength, electrical conductivity, and resistance to the alkaline environment inside concrete. They are designed to accommodate a wide range of conductor and rebar sizes, making them versatile and suitable for diverse project requirements.
Key Features
- Dual Connection Points: Provides two conductor connection points to the concrete-encased rebar electrode, meeting the requirements of jurisdictions where the Authority Having Jurisdiction (AHJ) mandates dual bonding connections.
- NEC Compliant: Meets NEC standard requirements for bonding conductors to rebar as part of the grounding electrode system.
- High-Strength Bronze Alloy Construction: Cast from premium electrolytic bronze for exceptional mechanical strength and reliable long-term electrical performance.
- Direct Burial & Concrete Encased: Fully suitable for direct burial and concrete-encased electrode applications without degradation.
- Wide Conductor & Rebar Range: Accommodates conductor sizes from #8 Solid to 4/0 Stranded (10 mm² to 100 mm² Stranded) and rebar sizes #6 through #11 (20M–35M Canadian standard).
- Easy Installation: Simple bolt-tightening design ensures fast and reliable field installation with standard tools.
- Stainless Steel Hardware Option: Available with Stainless Steel A2 AISI 304 fasteners for additional corrosion resistance in aggressive environments.
- UL 467 Compliant: Manufactured to meet UL 467 grounding and bonding equipment standards.
Technical Specifications
| Attribute | Details |
|---|---|
| Material | High-Strength Bronze Alloy (Electrolytic Bronze) |
| Conductor Size (Imperial) | #8 Solid – 4/0 Stranded |
| Conductor Size (Metric) | 10 mm² Stranded – 100 mm² Stranded |
| Rebar Size (US) | #6 – #11 |
| Rebar Size (Canada) | 20M – 35M |
| Rebar Diameter Range | 18 mm – 36 mm |
| Hardware | Stainless Steel A2 AISI 304 (available) |
| Standard | UL 467, NEC Compliant |
| Installation Method | Direct Burial / Concrete Encased |
| Connection Points | Two conductor connection points |
Applications
Bronze rebar grounding clamps are used across a broad range of industries and project types where reliable grounding to concrete-encased electrodes is required:
- Commercial & Industrial Buildings: Bonding the grounding electrode conductor to foundation rebar as required by NEC Article 250.
- Data Centers & Telecom Facilities: Ensuring robust grounding systems to protect sensitive electronic equipment from electrical transients.
- Power Utilities & Substations: Providing reliable low-resistance grounding connections in high-voltage infrastructure.
- Infrastructure Projects: Bridges, tunnels, highways, and civil construction projects requiring concrete-encased grounding electrodes.
- Solar & Renewable Energy Installations: Grounding of photovoltaic and wind energy systems to concrete pad foundations.
- High-Rise & Multi-Storey Construction: Connecting building steel to the grounding electrode system at foundation level.
Why Choose Our Bronze Rebar Grounding Clamps?
As an established Indian bronze foundry with decades of manufacturing experience, we supply bronze grounding clamps that meet the most stringent international quality standards. Our in-house casting, machining, and quality control processes ensure dimensional accuracy, mechanical integrity, and consistent electrical performance for every clamp we produce.
We export our bronze rebar grounding clamps to customers across North America, Europe, Australia, the Middle East, and Southeast Asia. Whether you need a small batch for a specific project or large-volume OEM supply, we can fulfil your requirements with competitive pricing and reliable lead times.
Indicative Pricing
Bronze Items: US$ 13.90 per kilogram, CIF US Port
Prices are indicative and subject to change based on quantity, specification, alloy grade, and market conditions. Contact us with your RFQ for a firm quotation.
